Gauge Glass Dealers in Mumbai

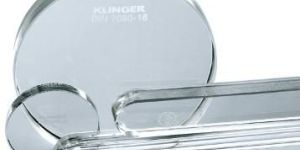

The quality of a sight (gauge) glass depends mainly on the chemical composition and mechanical strength of the glass material. Analyses and acidalkali tests are constantly ensuring a high glass-quality. The mechanical strength is reached by thermal prestressing. Liquid level gauges: The gauge glass is the most important component of the liquid level gauge. Due to this reason KLINGER gauge glasses are made of high quality, extra-hard borosilicate glass which is subsequently heat-treated. KLINGER gauge glasses have high mechanical strength and are especially resistant to alkalis, acids and boiler water (within the service limitation). Our glass testing laboratory carries out continuous quality control tests: purity of glass, flaws in glass, dimensional accuracy, etc. this ensures the high quality standard of KLINGER gauge glasses. We manufacture reflex and transparent glasses according to the most varied international standards.KLINGER gauge glasses are suitable for installation in liquid level gauges of almost any make. Fields of application: Oil refineries Petro-chemical plants Pharmaceutical manufacture Chemical processing Mechanical engineering, especially manufacture of boilers and storage vessels Food and beverages industry Water engineering Pulp and paper industry Textile industry Marine engineering Nuclear power engineering

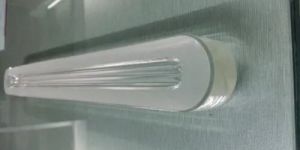

Transparent Flat Glass has precision moulded prismatic grooves cut on inner surface, which comes in contact with liquid. Light striking on glass portion covered by liquid is refracted (absorbed) making this portion appear BLACK, whereas glass portion covering vapour space reflects light making it appear SILVERY-WHITE.Thus, a sharp clear line marks the liquid, eliminating all possibilities of errors in reading. Transparent Flat Glassis a clear glass for visual level indication & specially for interface services or where the liquid is dirty or viscous.

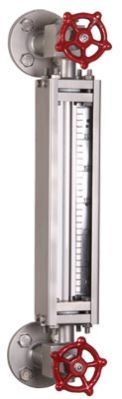

    Principle of Operation These tubular gauge glass valves represent years of experience in the manufacture of gauge valves and offer variety of types of connections to suit all requirements. All have forged bodies with stainless steel trim. All carbon steel parts are rust proofed inside and out. The highest quality borosilicate tubular glass is furnished as original equipment.           Material specification   Customized suiting to the service (fluid) and temperature.Available in SS 304/ SS 316/ pp/ pvc/ hdpe/ pvdf/ ptfe etc.

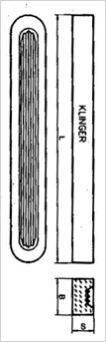

Klinger Gauge Glasses, KLINGER reflex glasses are provided with moulded prismatic grooves on the side in contact with the medium. As a result of the difference in refractive index, light rays entering the gauge from outside are reflected or absorbed. The light ray entering the steam or gas space strikes the groove face at an angle of 45o, being thereby refracted into the opposite groove face from which it is reflected back in direction of observation. The steam or gas space thereby appears silver-white. The liquid space behind the reflex glass appears black.

• Temperature: 210°C

Sight Glasses are used to view the flow, colour or presence or leaks of water, liquids and slurries. The tube type sight flow indicator allow a 360 degree visual indication of the flow and contents in pipes.

• Color: Transparent
• Brand Name: D.O.M
• Material: Glass
• Size: 340 mm x 30mm x 70 mm
• Usage/Application: Read the liquid level

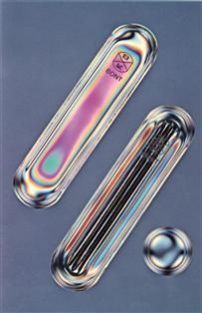

Bonetti level gauges spare glasses – bont sight glasses for level gauges sizes: pn 6 to 420; ansi 150 to 4500 materials: carbon steel, stainless steel, hastelloy, monel, nickel, titanium, other special alloys, plastic materials types: tempered, toughened, hardened, prestressed, extra hard applications: - borosilicate glass is suitable for many application features: - have chemical and physical properties - chemical resistance due to heat treatment: hydrolytic resistance.

Gauge Glass, Toughened Glasses, Sight Glass, Sight Glass-1, Glass Products

Gauge Glass, Toughened Glass Tubes, Toughened Glass, Gaskets

Gauge Glass, Toughened Glass, Sight Glass, PTFE Sheets

GAUGE GLASS THOUGHNED REFLEX PLAIN TYPE & ROUND GLASS as per ISI specification full transparent gauge glass tube for high pressure boiler O.D.L. length required and we offer red/green/blue Milky white glass furnace peeping strip Wilcox Rubber Cone-Ring, MICA strips 0.15 mm thick toughened for level indicator gauge glass tube protector with Brass flange we offer PYREX TYPE DISC WITH MICA ROUNDS DISC.

Gauge Glass, Glass Tubes, Reflex Glass, Sight Glass, Toughened Glass

Gauge Glasses, Transparent Glasses, Klinger Glasses, Swing Check Valves

Gauge Glasses, Pressure Gauge, Gauges

Borosilicate Toughened Transparent Gauge Glasses, Furnace Observation Glass

Gauge Glasses, Microscopes, Biological Models, Microscopic Slides

Gauge Glass, Ball Bearings, V-Belts, Glass Tubes, Alloy Steel Pipes

Gauge Glasses, Measuring Tools & Equipment, Hull Cell Rectifier

Gauge Glasses, Engineering Goods, Gauge Glasses, Engineering Goods

Borosilicate Gauge Glass
