Gear Pumps Dealers in Bhiwandi, Mumbai

Hydraulic gear pump, Gear pumps are positive displacement rotary pumps used to transport high pressure and high volume flows. They function through the use of two or more internal gears that create vacuum pressure, propelling the fluid media. Typically a rotating assembly includes a driving gear and a driven gear. As each tooth of the gear makes contact, the load moves to the next tooth and fluid moves with each contact. Internal gear pumps or “gear within a gear” pumps may have their smaller gear turning in the same direction as the larger gear, creating suction to move the pumped fluid media. At various points during the process of turning, the gears create a seal between the inlet and outlet sides of the rotation assembly chamber or body.

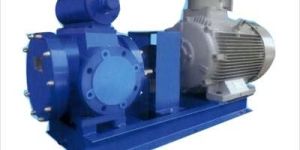

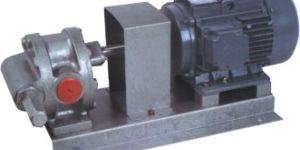

AP General purpose Foot type CI gear pump with single helical gears and built in pressure relief valve. This pumps works exceptionally well with applications were high temperature is your major concern. It can withstand temperatures up to 300 Degree Centigrade. The space occupied by this type of pump is very less.

Medium Pressure Series PGI100PGI101PGI103 Internal gear pumps, medium pressure range Essential performance data: Available in sizes 2, 3, 5 and 6 5.4 cm³rotation - 100 cm³rotation Nominal pressure of up to 250 bar; maximum pressure of up to 320 bar Speed of up to 4000 rpm Also available as a multiple pump
