Carbon gland rings
Get Price Quote
Carbon gland rings are extensively used for restricting leakage from water and steam turbines. For ease of fitting and replacement, the carbon rings are fabricated in segments. With the segments forming a complete ring encircled by a simple garter spring. Extremely fine tolerances are observed in the manufacture of these components to ensure their correct operation. A special feature of segments manufactured by us, is their complete interchangeability in rings of like design. In this particular application, sealing is affected by a small clearance between the bore of the rings and the tips of stubby fins on the shaft. Since rubbing contact between the fins and carbon rings, does not cause any damage, very small radial clearance can be used, resulting in a reduction in the leakage rate.Specialized carbon turbine glands manufactured by us have also been supplied for water turbines in major hydroelectric installations. The wedge type rings shown in the illustration are typical of carbon gland ring arrangements installed at many hydroelectric power stations. Each ring is made up of segments. The ends of these segments are chamfered to present sliding surfaces to tapered wedge pieces, one of which is interposed between the ends of neighboring segments. A garter spring seated in a groove around the outside circumference of the ring holds the assembly of segments and wedges together. Wear on the carbon is taken up by the action of the spring and water pressure continually forcing the segments into contact with the shaft, while the wedges move out-wards. Thus a wear of the carbon segment takes place while they still maintain an effective seal.
Cable Gland Seals Rings
Get Price Quote
Small sized Custom rubber grommets are engineered for fitting in a different sizes of cables and to provide them insulation and full safety.
Best Deals from Gland Rings
gland packing rings
Get Price Quote
Material A packing ring is a ring of material inserted into a pressurized connection to create a tight seal. They are used in a wide variety of mechanical and pressurized systems to control pressure, prevent leaks, and increase efficiency. Type We manufacture Gland Packing Rings from our Pilot Brand of superior quality Gland Packing
carbon gland packing rings
Get Price Quote
We also Manufacture Carbon Packing Rings which are used in Steam, Turbine, Water Turbine, Gas Turbine for different type of industries like Sugar, Cement, Textiles, Power Plant & Electricity Board etc... These Packing Rings are of various types and size used in Turbine of various kind also the Piston Ring which are also used in Compressors not only as the Piston Rod Packing but also as the Components of Pistons, Pistons Rings & Guide Rings. Carbon glands are used in the sealing of liquids and gases, restricting leakage to a minimum. Carbon Gland rings provides an economical simple and effective seal on impulse turbines, water turbines, steam turbines, gas turbines, low pressure fans and blowers.
carbon gland packing rings
Get Price Quote
We also Manufacture Carbon Packing Rings which are used in Steam, Turbine, Water Turbine, Gas Turbine for different type of industries like Sugar, Cement, Textiles, Power Plant & Electricity Board etc... These Packing Rings are of various types and size used in Turbine of various kind also the Piston Ring which are also used in Compressors not only as the Piston Rod Packing but also as the Components of Pistons, Pistons Rings & Guide Rings. Carbon glands are used in the sealing of liquids and gases, restricting leakage to a minimum.

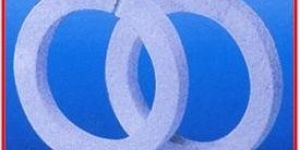

Gland Packing Ring
Get Price Quote
APPLICATIONS / USES : High performance gland packing rings made of High grade Asbestos fibre yarn duplex braid interlock construction to increase dimension stability of Gland packing.. then superbly impregnated with PTFE (Poly Tetra Fluro Ethylene) Suspension with latest technology. Later glands are cut & Die moulded into required dimension of Outer diameter X Inner diameter X thickness with hydraulic press moulding System. Product Description : Sigma 2727(Gland Packing Rings)High performance gland packing rings made of High grade Asbestos fibre yarn duplex braid interlock construction to increase dimension stability of Gland packing.. then superbly impregnated with PTFE (Poly Tetra Fluro Ethylene) Suspension with latest technology. Later glands are cut & Die moulded into required dimension of Outer diameter X Inner diameter X thickness with hydraulic press moulding System. Application :A good gland packing ring to seal against Acids, Alkali solutions, Agressive organic / inorganic Chemical Rotary and reciprocating plant pumps & valves. oils, corrosive chemical & gases,petroleum byproducts, oxygen services, Dyestuffs, synthetic resins, paints, pulp & paper sector chemicals. Equipment glands where no contamination is allowed. Not recommended to use on molten metals,concentrated acids and gaseous fluorine. FEATURE • Clean non contamination and graphite free. • Long maintenance free service life. • Minimal shaft wear and leakage • Pliable, wear-resistant and dimensionally stable • Resists most chemicals & caustic media • Rugged and non-toxic • High density, dimensionally stable - very little water absorption • Ideal and valve and slower shaft speed applicationsAvailable in all dimensions of Outer Diameter x Inner Diameter x thickness. with oblique cut at 45 degree & endless in all shape & size as per drawing

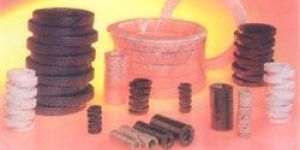

Gland Rings
Get Price Quote
When packing the stuffing box on a valve whether during manufacture or routine maintenance, ease and speed of fitting the packing is of important consideration.To facilitate this Hindustan Composites Ltd. offers preformed rings intended for use to contain various media at different temperature and pressure ranges.
