Grid Coupling Dealers in Mumbai

• Up to 261 kW / 100 rpm: Max bore : 173 mm

Manufacturer & Exporter of Industrial Couplings. We Supply Jaw Flex Couplings, Tyre-flex Couplings, Sleeve-flex Couplings, Cone-flex Couplings, Polytex Couplings, Gear-flex Couplings, Grid-flex Couplings, Disc-o-flex Couplings, Drive Shaft Couplings, Couplings for Cooling Towers, Couplings for Pumps & Compressor

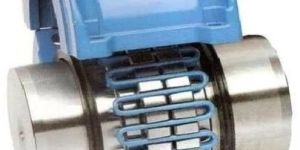

Type TH (Horizontal Split Aluminum Cover) Type TV (Vertical Split Steel Cover) Type THS (Full Spacer)/(Half Spacer) Type TBW (Brake Wheel We can get more favourable conscience and cost down by using the WCC Taper Grid Steel Flexible Coupling. PARALLELThe movement of the grid in the lubricated grooves accommodates parallel misalignment and steel permits full functioning of the grid-groove action in damping out shock and vibration. ANGULARUnder angular misalignment, the grid-groove design permits a rocking and sliding action of the lubricated grid and hubs without any loss of power through the resilient grid. END FLOAT Unrestrained end float for both driving and driven members is permitted because the grid slides freely in the lubricated grooves. It can also be limited to any required amount. TORSIONAL FLEXBILITY Torsional flexibility is the ability of Wcc Taper Grid Couplings to torsionally deflect when subjected to normal, shock or vibratory loads, providing flexible accommodation to changing.

Our Resilient Grid Couplings are fitted in tapered grooves. This grid cut in the periphery of the driving and driven hubs is extensively used for heavy duty applications. ✔ Capacity: up to 300kw/100rpm. ✔ Speed: up to 3600 rpm. ✔ Range of 8 sizes from 90 to 45,0000 Nm.

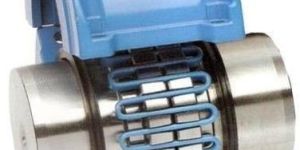

Flexer Rubbers Private Limited is manufacturer, exporter and supplier of industrial rubber products. Our various product range are as follows :-Grid type flexible coupling are used in almost all types of industrial appliances. A complete Grid coupling consists of two hubs, grid spring & covers to protect the spring. The Grid spring element is so designed that it provides sufficient resiliency for variable flexibility of a coupling and considerable damping properties making the coupling suitable for drives involving high shock loads.Items as per customer's specification may be arranged.

• Material: Carbon Steel
• Speed: 7000 RPM
• Shape: Cylindrical
• Usage/Application: Industrial
• Bore Size: 350 mm
• Torque: 189709 Nm
• Product: Grid Coupling
• Type of Coupling: Resilient Coupling

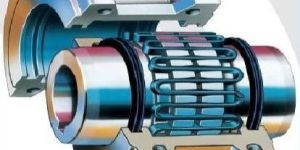

Falk Steelflex Grid Couplings have been the industry standard for nearly a century. Known for durability in critical applications, proven performance and versatile design, these couplings are the most frequently specified grid coupling in North America. Benefits: 25 sizes available 11 models including high-speed, spacer, flywheel brake & controlled torque Up to 20 inches (508 mm) bore capacity Up to 8,250,000 in-lb (932,126 Nm) torque capacity Up to 10,000 rpm Modular design reduces required spare parts inventory No need to re-lubricate for five years when using Falk Long Term Grease (LTG) Replace-in-place design reduces element change-out time Our Steelflex grid elements have been shown to outlast the competition, resulting in fewer replacements and less frequent inspections. Fewer grid failures translate to less wear on hub teeth. Falk Steelflex Grid Couplings require far fewer hub replacements, saving time and money spent on heating components, moving equipment and realigning shafts.

Torsionally flexible providing protection against shock load, impact load and vibration. Transmit full torque with dampened vibration and reduce peak loads. Range 0.45kW - 1307kW at 100 rpm and bore upto 267mm Vertical & Horizontal Splits Applications: Agitator, Blower, Conveyor, Pumps, Mixers, Crane & Hoist

resilient grid coupling, Plummer Block, Linear Motion Rolling Guide
