Guardrails Dealers in Mumbai

• Material: Stainless Steel
• Brand Name: Freezemax
• Capacity: 5 GN Pan
• Product Dimension: 48 x 15 x 14 Inch
• Door Type: Front Open
• Temperature Range: 2 to 8 Deg C
• Condenser: Inside

• Usage/Application: Road Safety
• Brand: KEDDY
• Shape: Rectangular
• Size: Customised
• Features: Corrosion proof, Less maintenance, High durability

We are offering our clients with robustly constructed guard rails that are ideal for using as traffic safety systems in highways. Countering the problem of high percentage of heavy vehicles on highways, these guard rails are installed to reduce the severity of run-off-road accidents. These guard rails are functional by redirecting a vehicle away from embankment slopes or fixed objects and dissipating the energy of the errant vehicle. Widely used on all types of roads, particularly embankment, close to cliffs, bridges and canals. These guard rails prevent the vehicles from leaving the road or from crossing on to the other carriageway. Providing elasticity & deferability for absorbing and dissipating the energy induced by impact with the vehicle, the metallic structure of guardrails act as median barriers on roads.

Configuaration Available - Available in a variety of configurations with accessories designed to suit particular site conditions, Standard availble lengths – 4.3 is the standard, with customised lengths available

We are offering steel guard rails. 1. tested barriers as per en 1317 for : • normal containment • high containment • very high containment 2. untensioned barriers (ucb) 3. tensioned corrugated barriers (tcb)

METAL CRASH BARRIER" (Guardrail) is probably something most people don't think about, that is, until it saves their lives. It is a proven road safety system, and is brought to you by THAKKARSONS ROLL FORMING PVT. LTD. which undertakes design, manufacturing and installation of wide range of Guard Rails under stringent quality control. The basic function of Guard Rails is to absorb the impact energy of the colliding vehicle thus minimizing the extent of risk and damage to the vehicle and its passengers. Besides, it prevents the vehicle from rolling down high embankments and veering off the carriage way. Thus, Metal GuardRails find its typical application on Highways, Bridges and Flyovers. Based on the guidelines issued by Ministry of Surface Transport (MOST) and other international specifications like AASHTO M180, Thakkarsons Roll Forming Pvt. Ltd. offers "W" beam and "Thrie" beam type steel crash barrier systems. TECHNICAL SPECIFICATIONS : • Cold Roll formed • Raw material: ST 42IS 5986 Fe 410510 Grade steel • Available in different lengths and thickness to match customer requirements • Hot Dip Galvanized (550 GSM minimum)

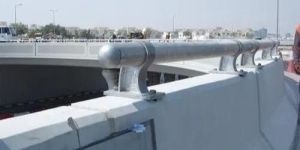

• Material: Aluminum
• Usage/Application: Motorail
• Thickness: 25mm
• Length: 6m
• Mounted: Base
• Position: Bridge
• Surface Treatment: Galvanized
• Shape: Round
• Color: Silver

We are offering our clients with robustly constructed guard rails that are ideal for using as traffic safety systems in highways. Countering the problem of high percentage of heavy vehicles on highways, these guard rails are installed to reduce the severity of run-off-road accidents. These guard rails are functional by redirecting a vehicle away from embankment slopes or fixed objects and dissipating the energy of the errant vehicle. Widely used on all types of roads, particularly embankment, close to cliffs, bridges and canals. These guard rails prevent the vehicles from leaving the road or from crossing on to the other carriageway. Providing elasticity & deferability for absorbing and dissipating the energy induced by impact with the vehicle, the metallic structure of guardrails act as median barriers on roads. The components of guard rail system are mentioned below : W Beam Cold roll formed section 3mm /2.7mm thick HR sheet. Fe 410/360 grade steel conforming to IS 5986 or IS 10748 or equivalent Hot dip galvanised - 550 gms/m2 or 460 gms/m2 conforming to MORT&H (Ministry of Road Transport & Highways) AASHTO M180 and IS Yield Strength: 240-310 N/mm2 Tensile Strength: 410-490 N/mm2 Elongation: 15-25% Post Anchored to foundation on Ground & Bridges Channel section of 75x150x75x5mm 5mm thick HR sheet Fe 410/360 grade steel conforming to IS 5986 or IS 10748 or IS 2062 or equivalent Hot dip galvanised -550 gms/m2 or 610 gms/m2 conforming to MORT&H (Ministry of Road Transport & Highways) AASHTO M180 and IS Spacer Buffer between Post & W-Beam Channel section of 150x75x5mm. 5mm thick HR sheet Fe 410/360 grade steel conforming to IS 5986 or IS 10748 or IS 2062 or equivalent Hot dip galvanised -550 gms/m2 or 610 gms/m2 conforming to MORT&H (Ministry of Road Transport & Highways) AASHTO M180 and IS End Section Anglised, Fish Tail or Tubular end terminals Fasteners Hot dip galvanised or electro galvanised bolts, nuts and washers conforming to IS 1367 of grade 4.6 MS 16mm dia Button head bolts for W-beam to W-beam & W-beam to spacer connection 16mm dia hexagonal head type bolts for spacer to post connection Our guardrails find extensive application in the following areas: National highways, expressways, bridges and flyovers Motor racing / test drive tracks Crash test sites Factory areas Traffic safety in airports Plants handling hazardous chemicals Mines and collieries where continuous movement of vehicles is envisaged Metal Beam Crash Barriers Types of Metal Crash Barrier Systems Single Sided Single W-Beam Single Sided Double W-Beam Double Sided Single W-Beam Double Sided Double W-Beam Single Sided Single Thrie-Beam Doubel Sided Single Thrie-Beam
