H.R.S Associates Nagdevi, Mumbai, Maharashtra

Oil level indicators in oil tanks, gearboxes and general machinery. The transparent component, the high density polyamide, is impervious to oil, gasoline, lubricants, and most petroleum solvents. Technical tables of chemical resistance are available on request. Avoid contact with alcohol, ethanol, methanol, and fluids with a high concentration of glycol. SG Series - High Density Polyamide Materials of construction: Polyamide Seal: Asbestos free gasket Max. Temperature: 100°C Max. Pressure: 3 bar (43 psi) The units are fitted with a contrast screen which gives clearer oil level indication. Models: SG-08 ½� BSPP SG-12 ¾� BSPP SG-16 1� BSPP SG-20 1¼� BSPP SG-24 1½� BSPP SGA Series - Aluminium Body with a Polyamide Window Materials of construction: Aluminium 11S body Polyamide window Seal: Asbestos free gasket Max. Temperature: 100°C Max. Pressure: 10 bar (145 psi) The units have a contrast screen which gives a clearer indication of the oil level. Models: SGA-08 ½� BSPP SGA-12 ¾� BSPP SGA-16 1� BSPP SGA-20 1¼� BSPP Main properties: High tensile strength Sturdy construction Superior abrasion resistance User friendly design.

we are an eminent manufacturer and supplier of oil level indicator. made in accordance with international standards, our oil level indicator can be availed in different sizes and lengths. our sockets are manufactured using quality material and are offered at industry leading prices. these products are extensively demanded in numerous industrial applications across the nation. features: quality tested compact design longer functional life glass tube : borosil make washer : oil and heat resistance nitrile rubber tube length : 2" to 24

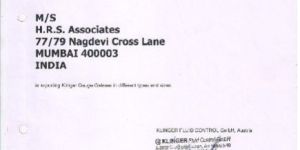

Here we attach a copy from Ms. Klinger Fluid Control GmbH that we are Importers of Klinger glasses in India.

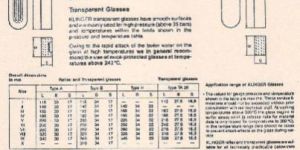

We attach Product Catalogue of Klinger gauge glasses with their exact specification and sizes as per your requirement

The quality of a sight (gauge) glass depends mainly on the chemical composition and mechanical strength of the glass material. Analyses and acidalkali tests are constantly ensuring a high glass-quality. The mechanical strength is reached by thermal prestressing. Liquid level gauges: The gauge glass is the most important component of the liquid level gauge. Due to this reason KLINGER gauge glasses are made of high quality, extra-hard borosilicate glass which is subsequently heat-treated. KLINGER gauge glasses have high mechanical strength and are especially resistant to alkalis, acids and boiler water (within the service limitation). Our glass testing laboratory carries out continuous quality control tests: purity of glass, flaws in glass, dimensional accuracy, etc. this ensures the high quality standard of KLINGER gauge glasses. We manufacture reflex and transparent glasses according to the most varied international standards.KLINGER gauge glasses are suitable for installation in liquid level gauges of almost any make. Fields of application: Oil refineries Petro-chemical plants Pharmaceutical manufacture Chemical processing Mechanical engineering, especially manufacture of boilers and storage vessels Food and beverages industry Water engineering Pulp and paper industry Textile industry Marine engineering Nuclear power engineering

'Bishop Adamant Gauge Glass Tubing' in a wide range of diameters and wall thicknesses in Borosilicate material which is highly resistant to water, neutral and acidic solutions, concentrated acids, and organic solutions. For smaller diameters (up to 38mm or 1.12") the composition has been developed specifically to cater for the requirements of gauge glasses used in high pressure steam boilers, for both temperature and chemical resistance. Red striped glass tubes are available for use in low pressure level gauges’ Larger diameters are used as sight flow indicators in pipelines, chemical process plants, and other process equipment. Glass rods in borosilicate and soda glass rods and tubing are available for special applications. Specifications: Diameters from 6mm to 300mm End Finish: Ground, Fused, Polished, or as Cut Lengths: Generally 1500mm but lengths of 3000mm (120”) in Specific Diameters Maximum Temperature: Generally 450° C or 220° C for Steam Application Thermal Shock: 160° C Refractive Index: 1.473 Coefficient of Expansion: 3.2 x 10-6 Deg K

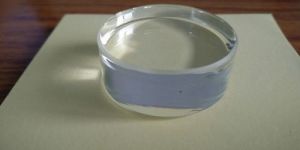

The Repair Kit consists of the following 5 components Cushion Gasket: � High temperature Graphoil Window: � Precision ground Aluminosilicate glass Mica: � Premium V-1 quality clear ruby muscovite Sealing Gasket: � Laminated and die-formed graphoil Gasket Retainer: � 300 Series stainless steel

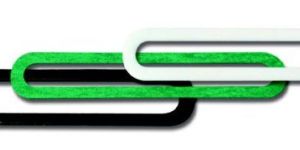

1. Grafoil Metallic Non Metallic Gasket We are instrumental in offering our esteemed clients with Grafoil Gasket, which are precision made making use of finest quality raw materials. Moreover, these gaskets are highly acknowledged for its ability to withstand wide range of temperature that makes them ideal for all pumps and valves at cryogenic and elevated temperature at nuclear plants, steam turbines, pharmaceutical and food industries. We offer these gaskets in various technical specifications as per clients’ demands. Further, these gaskets are offered at very lower price as compared to others in market. Features: High vibration resistance Totally independent compound designed product High mechanical, electrical and physical properties Designed to meet high temperature Sizes 1 through 9 Material: Grafoil® (standard on both Reflex or Clear Gauges) Fiber or PTFE also available 2. Metallic and Nonmetallic Graphite Gasket We bring forth our valued clients a wide array of Metallic and Nonmetallic Graphite Gasket, which are generally to prevent leakage from or into the joined objects while under compression. Moreover, these Gaskets are well acclaimed for its high end features such as abrasion resistant, ductile and have enhanced load bearing capacity. We offer these gaskets in various modified forms as per clients’ demands. Also, these Gaskets can be offered at very economical prices in market. 3. Non Asbestos Gasket Backed by a team of highly experienced engineers, we are engaged in providing best quality Non Asbestos Gasket, which is a sealing material made by adding special adhesives and a little packing into it, then roll and sulfured. Moreover, these gaskets are extensively used in engineering, auto mobile, chemical, oil & gas, petro chemical, power generation, paper, glass & ceramic, sugar, steel, smelter, boiler, pharmaceutical, marin & various other industrial application.

Drop Feed Oil Lubricators is a single point lubricators are directly mounted on the lubrication point and dispense oil. The oil is dispensed by gravity from the transparent reservoir through needle valve, which is joined with toggle pin. Operator can onoff the flow manually Available in different thread sizes operator 12"BSP, 14"BSP and 34"BSP 38" BSP

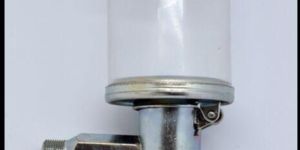

A constant-level oiler is used to maintain the fluid level in a piece of equipment that naturally depletes fluid through use, wear, friction, misting or evaporation. As oil is depleted in equipment, such as bearings, gearboxes, pillow blocks or pump housings due to its natural operation and the generation of heat from friction, the level of fluid changes. A constant-level oiler can be used to maintain optimum performance. The operation is based on the liquid seal principle: as fluid is depleted in the equipment, the liquid seal on the spout inside the constant-level oiler is broken. When this occurs, air enters into the oil reservoir from the air vent. This releases the fluid from the reservoir and allows it to flow into the equipment until the liquid seal reestablishes itself. An automatic constant-level oiler can be used for antifriction, sleeve, roller, ball, tapered, spherical or slinger bearings involving excessive backpressure. Applications include fans, motors, blowers, gearboxes or other equipment where a constant level of fluid needs to be maintained. Constant-level oilers are most useful in paper mills, cement plants, coal handling mills or industries with similarly dirty environments, because the sumps are opened less frequently.

Asbestos Packing Sleeve washers are superior. This Grafoil flexible graphite sealing material is made from pure, natural graphite flake. These gage glass washers provide a tight seal while maintaining their flexibility and resistance to the harshest environments such a heat, corrosion, and aggressive materials. With a superior sealability under low flange loads. High surface conformity, and an unlimited shelf life. Grafoil gage glass washers have a temperature range up to 800° F. We have two major brands Bishop and Challenge 30 x 30mm 30 x 31mm 31 x 33mm Gauge Glass Washer Sizing Chart: A � Inside Dimension of Washer, B � Outside Dimension of Washer, C � Thickness of Washer
