Hammer Mill Dealers in Mumbai

• Application: Industrial
• Color: Light Green
• Voltage: 380V
• Driven Type: Electric
• Automatic Grade: Semi Automatic
• Finish: Coated
• Minimum Order Quantity: As per Client Requirement

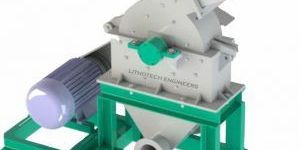

Features: - Suitable for wide range of applications in a number of processing fields like Maize, Spices, Cattle Feed, Poultry Feed, Chemicals, Oil Cake, Tea, Coffee, Crude Drugs, Moulding Powder, Dry Soap, Charcoal, etc. Operating Principle: The material to be crushed enters the machine through a gravity feed Hopper having an adjustable slide to control the feed material. The material is crushed between the hammers and serrated liners. The ground material is continuously sucked by a powerful blower through a screen classifier and conveyed through a pipe into the Cyclone for bagging. The blower maintains a constant airflow in the Mill Chamber, because of which the product being crushed remains cool and the screen remains clean, thus increasing the output. Particle size of the ground material can be varied over a large range by using sieves of the appropriate openings. Construction: Made from heavy duty Mild Steel fabricated body. Grinding Chamber lined with serrated wear plates, which protects the body from wear and tear. Grinding done by a set of Swinging Hammers on a balanced rotor. A screen classifier forms the lower half of the grinding chamber. Blower is driven on a separate shaft with the help of a ‘V’ belt adjustable drive from the rotor shaft.

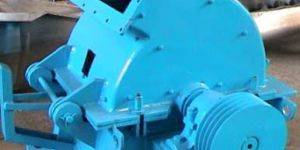

We are offering Hammermill to the clients. Hammer Grinding Mill, offered by us, is suitable for grinding a variety of food products such as spices, sugar, cattle feed, coffee, herbs roots, woodchips, fish, sawdust, poultry feed etc. We are offering Hammer Mill in several sizes and specifications to meet the varying requirements of clients. PrincipleThe material is passed from the feed tray to the grinding chamber where it is crushed to fine particles by free swinging hammers rotating at high speeds. The pulverized powder passes through a screen and is collected pneumatically by a cyclone collector. The pulverized material is collected at the bottom of the dust collector in bags.

• Type: Automatic
• Phase: Single Phase
• Shape: Rectangular
• Certification: CE Certified
• Voltage: 220V
• Warranty: 1 Year
• Material: Stainless Steel

We are offering hammer plant. For heavy wet and dry grinding, puree, paste, chutney. Heavy duty motor to take load on continuous basis.

• Brand Name: KUMAR
• Brand Name: KUMAR

Hammer Mills are used to pulverize copra, palm kernel & other oil seeds. The Hammers (Beaters) are rectangular for efficient grinding and are made from hardened alloy steel. Salient Features :  Easy opening arrangement.  Easy removal of the mesh which leads to less down time due to chocking.  Hardened tempered specially designed rectangular beaters.  Grater plates are provided to ensure efficient pulvarising.  Alloy steel well balanced rotor shaft supported on self aligning double raw spherical roller bearing ensure a very smooth, vibration free rotation of the rotor.  Hammer mill and motor mounted on a single base frame with shock absorption rubber padding. MODEL CAPACITYHR H.P.REQUIRED HM-A1 500 KGS 7.5 HP HM-1 1000 KGS 20 HP HM-2 2000 KGS 40 HP HM-3 3000 KGS 50 HP HM-5 5000 KGS 75 HP HM-8 8000 KGS 100 HP

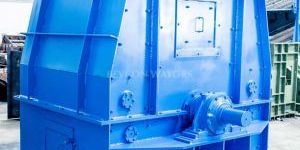

Hammer Mills are very old yet widely used among various types of crushers. It is a type of centrifugal crusher. The crusher hammers are symmetrically designed on rotors and hence can work in both the directions. Reversal of the direction permits the user to use the opposite face of the hammer and thus increases the life. The direction of motor is reversed at regular intervals to have the uniform wear on hammers. Bevcon Hammer mills produce higher crushing ratios up to 25:1. Reversible Hammer Mill is used either as a primary, secondary or territory crusher depending on the capacity and circuit design.

LL Pulversier comes with powerful crusher and best quality grinding at much higher speed. Usage For heavy wet and dry grinding, puree, paste and chutney. Model : PUL01-3 Hp Capacity 20 to 30 Kg http:llequip.com?page_id=34

We are a reputable name as hammer mill manufacturer in the industry. We offer a wide range of heavy duty hammer mill that finds extensive usage. Latest machines and technology is used and advanced production process is followed in the fabrication of the hammer mill. Our range of hammer mill is known for its economical rate and excellent quality. operating principle / components of hammer mill : hammer mill consists of a heavy duty mild steel fabricated bodythe grinding chamber of hammer mill is lined with serrated wear plates, which protects the body from wear and teara balanced rotor in hammer mill with a set of swing hammers accelerates the grinding processthe screen classifier forms the lower half of the grinding chamber of hammer millthe blower in hammer mill is driven on a separate shaft with the help of a 'v' belt adjustable driven from the rotor shaftthe material to be crushed enters the hammer mill through gravity feed hopper having an adjustable slide to control the feed materialthe material is crushed between the hammers and serrated linersa powerful blower in hammer mill continuously sucks the ground material through a screen classifier and conveyed through the pipe into the cyclone for baggingthe blower maintains constant airflow in the hammer mill chamber in order to obtain a cool product and continuously cleans the screens, thus increasing the outputparticle size of the ground material can be varied over a large range by using sieves with the desired openings of hammer mill known for : improved grinding efficiencycompetitive pricerobustnesslow power consumptionlow temperature rise forheat sensitive materialsaccurate and consistentproduct grinding applications of hammer mill in the production of : marine feedsmoulding powderdry soapanimal & poultry feedschemicalsfood productsherbs & spicescharcoalteacoffee

The most versatile machine that is used to grind almost all materials like spices, foodstuffs, chemicals, ayurvedic herbals, minerals and other miscellaneous materials. The grinding takes place between the high-speed swinging hammers and top/side liners. Once the particle size reduces to that of the perforated screen at the bottom, it will be discharged through the hopper. The fineness of the material can be controlled by changing the speed of the rotor(hammer), content of serrations on liners number of hammers and diameter of perforation on the screen.

Hammer Mill is a very important starting point for salt processing. We are experts in the manufacture of Industrial Hammer Plant for crushing the salt to required size in wet condition. The brine feeding along with crushing starts preliminary cleaning operation of raw salt before it enters washing tanks. The Mn-lining inside the Hammermill gives longer life to the unit under continuous operation. Our Heavy Duty Hammer Mill is very sturdy having minimum fine generation and maintenance.

Hammer mill is subjected to rigid final inspection and actual grinding tests at our experimental station before it is delivered to the stores for dispatch. Grinding tests with your materials can also be carried out without obligation for testing the sustainability of the mill (pulverizer) for your satisfaction.
