Hardness Testing Machine Dealers in Mumbai

• Country of Origin: India
• Type: Automatic
• Brand Name: FIE
• Color: Green
• Corrosion Resistance: Yes
• Voltage: 220V
• Display Type: Digital
• Power: 1-3kv
• Driven Type: Hydraulic
• Structure: Vertical
• Operating Type: Automatic
• Warranty: 1 Year
• Material: Mild Steel
• Display Size: 2 Inch 2.5 Inch
• Length: 250-300mm
• Packaging Type: Wooden Box
• Overall Weight: 70-100 Kg
• Height: 250-300mm
• Temperature Capacity: Medium Temperature
• Usage: Hardness Testing
• Specialities: Easy To Use
• Finishing: Chrome Finish
• Accuracy: As per Standard
• Hardness Scale: All types
• Measurement Range: Any
• Measurement Deviation: 0.1
• Load Speed: Any
• Load Capacity: Any
• After-Sales Service Provided: Yes
• Test Force: All
• Frequency: 50Hz
• Application: Industrial

• Height: 860 mm (Approx.)
• Load range:: 500, 750, 1000, 1500, 2000, 2500 & 3000 kgf.
• Maximum test height: 254 mm
• Depth of throat:: 150 mm
• Gross weight: 220 kg. (Approx.)
• Size of base: 495 * 255 mm (Approx.)

Brinell Hardness Tester is a production type machine designed for measuring the Brinell Hardness of steels and other metals that are flat, round or irregular in shape. The machine is sensitive, accurate and easy to operate. The machine consists of a ‘J’ frame, main lever, hanger, elevating screw, loading - unloading mechanism and damper system. The load is applied on the job through a ball indentor. It is applied through a lever mechanism.  - The main lever carries three male vees one for hanger second for spindle shaft and third for pivot vee. The elevating screw can be moved up and down by rotating hand wheel. There are six detachable weight out of which four are each equivalent to 500 kgf and two are each equivalent to 250 kgf to be made use of for application of desired load in addition to the bottom weight equivalent to 500 kgf. The operating lever is provided for loading & unloading.  - The damper system consists of main cylinder, piston, valve disc, connecting rod and metering valve. The damping sensitivity is adjusted by the metering valve. The connecting rod and piston is actuated through cam, mounted on cam shaft while operating.

10Weight Loads (FM-800) from 1 gf to 3000 gf in various options. Advanced Color LCD Touch Panel Operation and Display. X– Y Coordinate Display interfaced with the Digital Microhead (Option). Automatic Load and Release Method. Hardness Conversion to Other scales. SPC (FM-800)

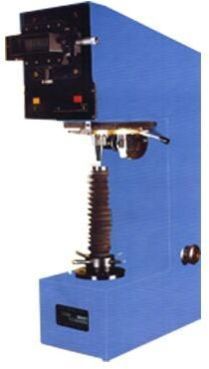

Very wide testing range from soft metal like lead up to hardest metals like hardened steel. Small indentation to allow testing of precision finished parts. Motorised loading and unloading. Suitable for thin sheet metals since test loads are very small. Built - in projection screw to get accurate results. Auto Instruments & Engineers Vickers Hardness Tester is a simple & accurate means to produce and measuring the diamond indentation. These testers are suitable for measuring the hardness of precision metallic parts with wide testing range-from soft to hard, and their accurate results are widely acclaimed. These testers strictly conform to IS: 1754 - 1986
