Hi-tech Coding Systems Goregaon, Mumbai, Maharashtra

We excel in manufacturing automatic tube filling-sealing-coding machines which exhibit the following features:-   Features: • Ideal for the filling, sealing and coding applications in almunimium, LD, lami tubes. • Suitable for filling 2gm to 200 gm of ointment, gums and lotions • Available in rotary/linear models • Available in single or double heads • Auto drip-free filling for high effiency • Imported sealing and crimping unit • Online coding attachment • Maximum output: 30/40/60/80/100 tubes per min • Maximum supply: 25 machines per month • Delivery in maximum 30 days

Semi auto volumetric type piston based liquid filling machines are very useful for filing any free flowing liquid into any shape containerjarsbottles etc. It can be used in food, beverages, chemical, pharma & allied industries for following applications

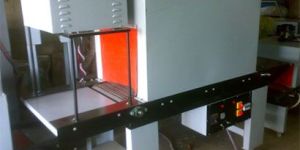

• Compact construction, high efficiency. • The use of intra-red Quartz heater tube results in lower the power consumption. • Great air-flow provides excellent heat distribution for an even shrinking. • The system features automatic temperature variation for convenient operation. • Variable speed live-roller conveyor is easily adjusted.     Parameter: MODEL: SPS HI 1.Power supply:220V 50Hz 2.Power: 5KW 3.Conveyor speed:0-10m/min 4.Conveyor loading:5kg 5.Tunnel size:830X400X200

Compact construction, high efficiency The use of intra-red Quartz heater tube results in lower the power consumption; Great air-flow provides excellent heat distribution for an even shrinking; The system features automatic temperature variation for convenient operation; Variable speed live-roller conveyor is easily adjusted.   Parameter: Model: SPS 58 H 1.Power supply:220V 50Hz 2.Power: 5KW 3.Conveyor speed:0-10m/min 4.Conveyor loading:5kg 5.Machine size: 800X400X250

This printer is suitable for printing notes and signs, such as production date, expire date, lot number and simple designs on various kinds of bottles, boxes and materials. You will be satisfied with out printing speed, cute and clear letterform.   Parameter: Model:ZXY-600 1) Operating mode: electromotive 2) Working speed: max. 2100times/Hour 3) Printing size: max. 20 x 60mm 4) Printing height: max. 270mm 5) Weight: 56kg 6) Dimensions (L x W x H): 600 x 275 x 570mm

1) Up and down magnetic switch control system to prevent the mistake of sealing and protect the operator meanwhile   2) "Schneider" programmable logic controller (PLC) with stable performance 3) "Schneider" AC contractor, intelligent temperature control 4) Large power conveyor motor, steeples speed regulating, ensure smooth feeding 5) Up and down large power fan system to ensure the excellent effect of shrinking in one time 6) Super cooling system to ensure the perfect shape of products quickly after shrinking    Parameter: Specifications: 1) Model: SPS-20- H (sleeve wrapper) 2) Voltage: 220V , 50 - 60Hz 3) Power: 3kW 4) Packing speed: 0 - 10pcs/minute 5) Air pressure of working: 4 - 6kg/cm 6) Width/thickness of the film: max. 590mm/0.03 - 0.25mm 7) Max. packing dimensions: 500(L) x 300(W) x 400(H)mm 8) Min. packing dimensions: 250(L) x 50(W) x 100(H)mm 9) Machine size: 1,060 x 1,600 x 1,930mm 10) Conveyer driver size: 1,700(L) x 410(W) x 400(H)mm 11) Machine weight: 370kg

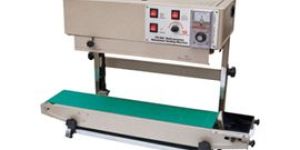

This series sealer is in the function on continuous carry,seal and print in one operation,and enable to horizontally,vertically and with stand,the machine adopts electronic constant temperature mechanism and stepless speed adopts electronic constant temperature mechanismand stepless speed adjusts transmission mechanism,it can seal plastic film in various kinds of materials.   Parameter: Voltage: 220V 50Hz Power: 500W Sealing speed: 0-12m/min Sealing width: 6-12mm Teperature range: 0-300 Max.cnveyor loaking: 3kgs Printing Category: Steel wheel printing Weight: 30kgs Size: 860X420X365mm

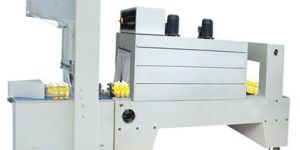

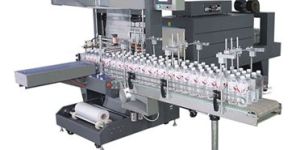

1) Suitable for wrapping of such products as pop-top, mineral water, bottles, beer, drinks both with and without bottom-tray   2) Working with PE shrink tunnel to pack the goods perfectly 3) The whole producing process adopt the Germany advanced techniques. Parameter: Specifications: Model: SPL-20-WH-(Pneumatic) 1) Power: 220-240V, 50-60Hz;1.8KW 2) Packing speed: 2-5pcs/minute 3) Sealing time/shrink time: 0.5-1.5s, 0-0.6s 4) Conveyor loading: 30kg 5) Shrink film: PE, POF, PVC, PP 6) Film width: max. 500mm 7) Film thickness: 0.04-0.12mm 8) Dimensions: 1020 x 830 x 1980mm 9) Packing: Max. packing dimensions: 450 x 270 x 350mm Min. packing dimensions: 250 x 60 x 60mm

This series of vacuum packaging machine is featured by automatic processing of vacuuming, sealing, printing, cooling, which is used in vacuum packaging for the food ,pharmaceutical,aquatic,chemical and electronic industries. It can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness of the product over a prolongd storage time.

Machine is vertical filling machine for tea, sugar, pulses, grains, wafers, namkeen, dray fruits in pouches, jars, bottles or containers.Manually the container or pouch will be kept for filling the product.Filler weighs the filling material in individual pan mounted on the load cell to get maximum output and accuracy. The load cell output is processed directly by the PLC and its modules. The vibrators and Pan opening is controlled by PLC itself.Two separate vibrator controllers are provided to adjust the feed rate of the vibrator feeders. As soon as the set weight is achieved the vibrators are switched off and the ready pay is discharged into the pouch as and when required. After filling the desired quantity the pouch will be taken for sealing or if it is a container will be taken for capping.

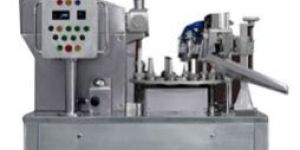

For medium speed compact rotary single head type lami/plastic & aluminum tube filling, sealing, batch coding and trimming machine. To fill tooth paste. 5 Gms. To 150 gms. Output 30 to 40 tubes per minute.     TECHNICAL SPECIFICATION with SALIENT FEATURES: (RAYALMAX-L35) The proposed GMP MODEL, ROYALMAX-L35 Compact rotary Medium Speed Semi Automatic Lami/Plastic tubes filling & Sealing machine. Capable to fills from 5 grm. To 250 grm. All Contact Part's will be SS 316. Filling System -Positive Suction & Displacement. Attached Pneumatic Blow Tail Cut-off with Control System. NO TUBE - NO FILL Device. And Bottom up Filling System. Filling Accuracy +/ - 0.1%. Tube Sizes max. Length & Diameter: 10 to 50 mm dia./ Length: 40 to 220 mm. Filling Speed 30 to 40 tubes per min. 12 Nos.Tube holding Cup SS-304. And SS Spring Loaded Nylon Holders One Tube Size. Indexing System Geneva Mechanism. Syringe Pump Single Head Type Insert for Filling (5 Gms. to 30 Gms.) (30 Gms. to 100 Gms.) (100 Gms. to 250 Gms.) Any one of the three sets will be provided against requested specification in your order Jacketed Hopper Double Head Type of Capacity of 40 liters. Temparetcher Controller With 3 KW SS Tubular Heater. Belt Less Stirrer Device with augur to keep the product in Continuous homogeneous condition. Geared Motor 0.5 HP, RPM-40 REMI make. With Label Sensor and controller. Feeding the empty tubes manually, and filling, sealing, Coding and Tube Ejector automatically. Lami / plastic Tube heating device Activate on Leister Model Type 3000 Hot Air Tool 8D1 Swiss Make one set. With Hot air Tool adopter Jacketed SS-304, one set. And tube-heating adopter cooling ring centers the tube so That heating is uniform around the tube. Blower: 0.5 HP. (MINI VAC Make) one set. Lami / plastic Tube Sealing Device Activate on Pneumatics. In sealing & coding wherein the tube is pressed & sealed and then coded with metal stereos coding letter punch (female 0 to 9, one set). Machine body Construction Mild Steel 50mm Sq.Box type and Machine bash plate 19mm heavy duty fabricated, with Epoxy Powder Coated And all Safty Cover18 gauge SS 304. Electronic Digital filled Tube Production Counter. Overload Clutch for Centering and Micro Switch Cut-Off System. Main Motor 1 Hp, Make Remi. And Gear Box-30 Ratio Make Elecon. With Separate Drive System. Machine Dimensions: (Length 1460 mm. x Width 930 mm. x Height 2450 mm.) Machine Weight: 425 Kgs.

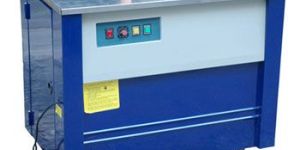

Type of  BSM-8020 H semi-automatic binding machine takes polythene plastic strap as binding material, which is mainly used in packaging and binding of paper carton,wooden case and paper parcel in sectors of business, postal service, railway, bank, food, pharmaceutical and publishing.Effcient and energy-saving in processing in a quality and speedy packaging fashion,the machine can automatically conduct strap collecting, thermal sealing, cutting andwith full automatic stopping operation.   Parameter: Model No.: BSM-8020 H Features: 1) Strapping speed: 1.6sec/strap 2) Strapping width: 6 - 15mm 3) Voltage: 220V 50Hz

The semi automatic Screw cap sealing machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine.  Require manually feeding & unloading container, where the body and the neck of the container are positioned below the rotating head and sealing head is performing perfect operation of sealing. The unit is made compact & versatile. S.S. Elegantly Matt Finished Body.         Built in front control panel. Quick setting. Motorised head movement. No change parts require for different container diameter. Low noise level, low power consumptions. Adjustable bottle height gauge for easy and quick setting.     Technical Specification: Output / Hour : 1000 to 2400 Containers No. of sealing head : 1 No Electrical Power : 1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine.

  Semi-Automatic Pneumatically Operated vacuum pack & sealing machine :-MODEL PVPN 600 H Is use to pack and seal product in pre-formed pouches .Aluminum bags made out of heat seal able laminated film to enhance the self life of product. Material: - nylon bags bags of 25 ltrs etc. Features: 1 bag /min Pouch Dimension: 1000 MM X 800 MM Compressor Air Required 30 cfm@ 6 Bar. (Exartnal ) Power Supply: 220 V AC, Single Phase, 50 Hz, 4 KW. GMP and Fully Flamfroop Model. Dimension: L: 1000 Mm, W 800 Mm. H: 1200 mm. Machine Net Weight: 150-200 Kg. (approx. You’re following details on PP bag size and bag weight at 25 kg. Aluminum bag size – Length – 15 INCH Aluminum bag size – Width–25 INCH Speed of Bagging per minute – 1 Bag (Existing system – picture attached) Inner bag (inside Aluminum bag)-  Aluminum thin bag     Speed Of The Machine Depends On: Size of the pouch Degree of vacuum required Packing material Type of product Operators efficiency External Vacuum Packaging Machine With complete functions! It has 2 functioning pattern can be choosing: 1. only do process of sealing. 2. Vacuum-pumping and sealing.  Without limitation caused by the size of vacuum chamber, the air extractor packaging machine has very wide application range. Application (External Vacuum Packaging Machine): The External Vacuum  Packaging Machine has very wide application range. Technical Characters(External Vacuum Gas filling Packaging Machine): 1. Control System: Analog and Digital controller. 2. Main housing: high strength armor plate with beautiful spray painting, Stainless steel 304 can be customized! 3. Machine owns double nozzles in chamber less design.  4. The Special sizes of sealing bar can be customized! 5. Double Sealing Bar can be customized!

We specialize in manufacturing Semi-automatic liquid filling machines which are generally used in fill any type of liquid such as juices, petroleum jelly, phanna syrups, drinking water, paints, strainers, perfumes, flavored milk, dahi, adhesives, shampoo, edible oil, hair oil, lube oils, coolants etc. Our manufactured machines exhibit these following features. Features: • Semi-automatic with filling range from 15 rnl. To 1000 ml. (Twin head Four head) • Accuracy better than ±1% • Three different speeds (or vary speed pulley) depending upon capacity of Bottles. • Body Covered with S.S. sheet • All contact part S.S. 304S.S. 316. • Available size: 30, 60, 110, 260. 540 & 1000 ml. • Machine can be provided with diving nozzles for frothy foamy liquids

We specialize in manufacturing semi - automatic labeling machines which exhibit the following features-   • Uniquely designed for the labeling of bottle or cans • Ideal for using for both sticker and wet glue • Suitable for bottles in all round shapes and sizes • Ideal for single side/wrap around labeling • No-bottle no-label systems • Maximum output: up to 30 to 35 bottles per min • Maximum delivery time: 25 days Technical specification: 1.Diameter of Container:- 27mm to 100 mm 2.Height of container - 35mm to 270mm 3.Label Width:- 26mm to 160mm 4.label length:- 80mm to 325mm 5.Power supply:- 415 V / 3 phase 6.Motor:- 0.25 HP

SAP-60-Printing Area : 50 mm. x 65 mm SAP-60EL-Printing Area : 50 mm. x 90 mm SAP-90-Printing Area : 75 mm. x 90 mm Printing Speed : 25, 36 & 48 stroke per min Drive Motor : 0.25 H.P., 1440 R.P.M., 1 Phase Overall Dimensions : 650 x 475 x 275 mm Weight: @ 48 kg. Extra Facilities Side & Back Stopper is provided for margin setting for large Labels Cartons Pouches, Extension Platform support with side stoppers provided.

  HOP-60-Printing Area 50 mm. x 65 mm. HOP-90-Printing Area  75 mm. x 90 mm Output   10 to 15 labels/cartons/pouches/min.manually Overall Dimensions  375 x 175 x 200 mm Weight: @ 7.5 kg.

Semi auto volumetric type piston based liquid filling machines are very useful for filing any free flowing liquid into any shape container/jars/bottles etc. It can be used in food, beverages, chemical, pharma & allied industries for following applications: Features: Semi-automatic with filling range from 15 rnl. To 1000 ml. (Twin head/Four head) Accuracy better than ±1% Three different speeds (or vary speed pulley) depending upon capacity of Bottles. Body Covered with S.S. sheet. All contact part S.S. 304/S.S. 316. Available size: 30, 60, 110, 260. 540 & 1000 ml. Machine can be provided with diving nozzles for frothy foamy liquids. A unit to fill variety of liquid and can be used for various type of containers. Specially designed valve assembly to avoid drip page.     Technical Specifications : Main drive Motor: 0.5 HP for Model 260 ML. 1 HP for0 Model 540/1000 ML. Gear Box: Radicon/Elicon/Crofts make. Overall Dimension : 925 mm L X 485 mm W X 710 mm H Output: 700 to 2000 Bottles/hour.(depending up on the capacity). Net weight: 120 Kgs. Approx.   • Available with 1/2 heads attachment • Works on Syringe Base Piston • Available in SS304. SS316,GMP Model • Easy and accurate adjustments of fill desired quantity • Available in Linear & Rotary Format • Made up of hygienic materials for hygienic filling • Maximum tilling accuracy: +/- 2 – 4 % by weight output of 10-40 bottles/min. • Compatible with other filling equipments • Available filling range: up to 5- 20ml to 1 -2 Lit. (With different changeable attachments) • Single speed drive for output control can be provided if required. • Maximum output in minimum possible time • Adjustable and space saving • Stock Supply: 100 Machines/Month • Maximum delivery in 25 days • Low power consumption

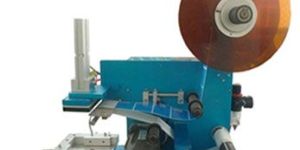

  Model MT-50 FOR ROUND BOTTELS Voltage AC 220 V + 10 V + 50 HZ -120 W Labels accuracy + 0.5 mm. Label speed 25-50 pcs/min Label roll linner Dia 75 mm Max label roll Dia 250 mm Product Dia 10-150 mm Width of labels 8-100 mm , L 15-205 mm Machine size 650 x 450 x 450 mm Gross weight 25 kg

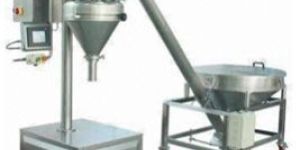

It is a versatile powder filling machine for dosing free flowing as well as non free flowing powders, like Pharmaceutical powders, Chemical powders, Talcum powder, Pesticide powder, Ground spices, Ground Coffee, Flours, Milk powder etc. The machine operates on the principle of POSITIVE DISPLACEMENT SCREW operating under constant head. The precisely designed Auger displaces the product through funnel into the pouch/ container held under the funnel. The filling cycle is controlled by an Electromagnetic Clutch/Brake unit or an Electronic Auger with frequency drive for very high accuracy can also be provided. Microdoser  can be provided for very small grammages & Jumbo Auger for big grammages.

This  is ideal filling equipment for medicament, light industry, food, pesticide and other special industry. Adopting advanced pneumatic parts from Germany FESTO and Taiwan AIRTAC. Simple operation are the main feature of machine. The piston and hopper of cylinder are made up of 316L stainless steel and Polytetrafluorothylene (PTEF). It accords with GMP requirement. The filling range and speed are adjustable. Filling unit has function of leaking-proof, silk nuzzling-proof. Machine is able to changed to multi-head, burst-proof and flood-proof filling unit according to requirement of customers

Semi auto Cup filling and sealing machine Rotary machine Model- CFSM-500 H this machine is designed for packing the plastic cups with Min. Ø 65mm, Max. Ø95mm.  Also aluminum folio lids used in this machine must be pre-cutted lids. For following features CFSM-500 machine is appropriate. Stations of the machine are as follows • Plastic Cup Dropping Station • Filling Station • Aluminum Foil Lid Placing station • Sealing Station • Dating Station • Exit Conveyor Technical Details • NO. OF station- 5 • Hopper capacity- 21 liter • Power supply- 3 phase, 1 Hp. 1440 rpm 415 volts, 50 Hz. • Heater power- 230 v – 500 W • Temp. Controller- 0 to 600C • Machine capacity – 850 – 900 hr • MOC -Stainless still 304 make machine • Vacuum -0.25 inbuilt in machine • Worm Reduction Gear Box

Semi auto volumetric type piston based liquid filling machines are very useful for filing any free flowing liquid into any shape containerjarsbottles etc. It can be used in food, beverages, chemical, pharma & allied industries for following applications:
