Hind Rectifier Limited Bhandup West, Mumbai, Maharashtra

The converter grade thyristor range extends upto 4350Amps with PIV upto 2800V incorporating standard packages of 14" unf stud in to hat range to 3"in capsule type. The inverter range is divided into two distinct types. One meant for standard low frequency inverter upto 4350 amps and 2800 volts and the other for high frequency applications such as induction heating and high frequency welding. The high frequency range has thyristors upto 1200 amps with voltages upto 2000 volts., 'turn off' times as low as 10 microsecs.

HIRECT is leading supplier of the Water Cooled rectifier system. These rectifier systems supply high current upto 50KA for application like electro smelting. The systems are designed with OFWF cooling for transformer and water cooling for rectifiers. HIRECT also supplies converter transformer of ONAN and AN types as well as high current AC-DC chokes for smoothing and current limiting application.

Type : Automatic

Application : Industrial Use

Input Voltage : 220V

Frequency : 50 Hz

Power : 2-4kw

Phase : Double Phase, Single Phase

Warranty : 1 Year

Certification : CE Certified

Starting with the supply of diodes for traction application, Hirect now caters to wide range of rectifiers for rolling stock application. High power electric locomotive, AC Electrical Multiple Units are powered by Hirect̢۪s on-board or under slung rectifiers. Hirect rectifiers are also installed on board Diesel locomotives and Diesel-Electric Multiple Units. Rectifiers for special purpose like OHE cars, Mobile Maintenance Units, Accidents Relief vans etc. are also catered. On-board Installation and Under-carriage slung version of rectifier sets are manufactured by highly trained work force and specially created infrastructure for a high degree of reliability in critical traction application.

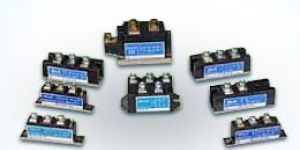

The modules package concept has now gained acceptance as it offers compact and easy to handle designs. The semiconductor junctions are electrically isolated from the base allowing common heatsinks and compact designs. The insulating materials used between chip and base is carefully chosen so that the impedance is minimised. The Hirect range extends upto 350 amps and 2200 volts and is available in Diode-Diode, Diode-Thyristor and Thyristor-Thyristor configurations.

HIRECT has developed specialized power electronic equipments for a range of applications. Thyristor control constant voltage and constant current power supply are used by R & D organizations like BARC, CAT, IPR etc. Constant Current Regulators are being supplied for Airport runway lighting. These are used for guidance during aircraft landing and take off at civil airports as well as air force stations.

The power Diodes available from Hirect Include Standard Rectifier diodes starting from 6Amps to 6000Amp It(av), with voltages upto 4800V(piv). These devices are offered in a variety of packages starting from M6 stud in top hat range to 3" in capsule types. In addition to rectifier diodes, a number of fast recovery diodes and other special devices with avalanche characteristics are available

Power Supply for Electrostatic Precipitator Environmental protection concerns take centre stage today when it comes to fossil-fired power stations and particulate polluting industries. Improved efficiency and enhanced pollution control not only helps to get closer to the objective of a clean environment but also helps industries save valuable raw material going waste. Hirect Power Supplies for electrostatic precipitators with their particularly high efficiency and control leads the way towards clean Environment.

DC power Systems for Electrochemical Plants like, Potassium & Sodium Chlorate, Soda-ash, Caustic chlorine Production, Copper, Aluminium, Zinc refining all require modest voltage and high DC current. DC power is also required in other industrial process like hydrogenation, electrolysis, chlorination. Such continuous process industries look for a reliable, economical and trouble free form of DC power supply system. Hirect offers a complete range of rectifier equipment of all such applications and provides engineering, design and technical support in choosing the right solutionequipment.

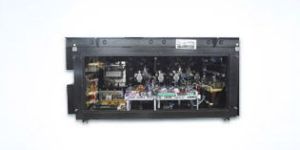

To keep pace with new technology. Hirect has entered into foreign technical tie-up for static converter for replacement of rotary arno converters of Electric locomotives manufactured and operated by the Indian Railways, A large number of 180kVA converters have been manufactured and installed. Hirect also offers 3 x 100kVA converters for the three phase electric locomotives.

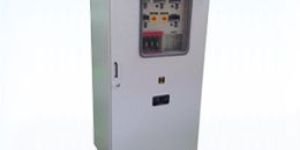

HIRECT make Cathodic Protection Transformer Rectifier unit (TRUs) comprise of Automatic, Manual & CVCC controlled. CP-TRU is used for cathodic protection of buried pipelines across the country,storage tanks at terminals refineries and other buried structures.
