IM2507 is a charge discharge type Ampere Hour meter with two independent 4 digit displays for separate charge and discharge counting. One display counts the charge through the circuit, while other counts the discharge. Application areas are; battery life cycle testing, battery monitoring applications.

• Size: 96×96 mm depth 150 mm

IM2505 is a charge discharge type Ampere Hour Meter which is best suited for tracking monitoring battery AH in circuit. These are used in applications related to submarine and telecom or in sectors where battery back ups are used; since battery charge is to be monitored to switch on off charger. It helps load to avoid excessive charging as well as deep discharge. When battery is being charged, the AH count will increment. When batterystarts discharging, AH count will decrement. When AH reaches the lower set point, relay will operate. This can be used to either generate warning alarm or switch off discharge and or start charger. Relay will remain operated till battery is charged to its full level.

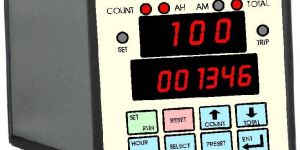

IM2507 is a charge discharge type Ampere Hour meter with two independent 4 digit displays for separate charge and discharge counting. One display counts the charge through the circuit, while other counts the discharge. Application areas are; battery life cycle testing, battery monitoring applications.

• Features: Dust proof membrane keypad. One display for charge other for discharge. Battery back up to retain count in case of power failure. Timer programmable in hours minutes.
• Display: 4 digit LED display
• Shunt value programmable at: 75mV
• Size : 96×96 mm
• Depth: 150 mm
• Supply : 230 V AC / 110 V AC / 10-30 V DC / 48 V DC

• Display: 4 digit LED display
• Output Rate: 230 V / 5A
• Size: 96 X 96 mm
• Depth: 150 mm
• Power Supply: 230 V AC / 110 V AC
