HRC Fuse Dealers in Mumbai

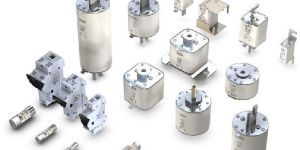

Buyers from all over the country can contact us to purchase HRC Fuses. We deal in High Voltage HRC Fuses that are designed as per DIN 43625, BS:2692 and IEC:282. The HRC Fuses are therefore the best choice for protection of Capacitors, Motors Distribution Transformers, Cables, Voltage Transformers, etc. We can provide HRC Fuses in different specifications for varied requirements.

The fuse link body is made of special steatite, which is resistant to alternating temperatures. The indicator on the front plate clearly indicated the switching more... TYPE HT BOLTED BS - HRC FUSE LINK The fuse link body is made of special steatite, which is resistant to alternating temperatures

• Type: Hrc Fuse
• Material: Aluminium, Copper, Plastic, Polyester Film, Raw Aluminium
• Certification: CE Certified, CQC Certified, IAF Certified, ISI Certified
• Application: Domestic, Industrial, Machinery
• Color: Grey, Silver, White
• Power Type: AC, DC
• Operating Temperature: -25 +85deg C, -40 +70deg C, -45 +55deg C, -70 +40deg C
• Feature: Auto Controller, Dipped In Epoxy Resin, Durable, High Performance, Stable Performance
• Warranty: 1yr, 2yrs
• Puncture Voltage: 110V, 220V, 380V, 440V

LV HRC fuses are used for installation systems in non-residential, commercial and industrial buildings, as well as in the switchboards of power supply companies. They therefore protect essential building parts and installations.LV HRC fuses are fuse systems designed for operation by skilled personnel. There are no constructional requirements for non-interchangeability of rated current and touch protection.The components and auxiliary equipment are designed in such a way as to ensure the safe replacement of LV HRC fuses or isolation of systems.LV HRC fuse links are available in the sizes 000, 00, 0, 1, 2, 3, 4 and 4a.LV HRC fuse links are available in the following operational classes:gG for cable and line protectionaM for the short-circuit protection of switching devices in motor circuitsgR or aR for the protection of power semiconductorsgS: The new gS operational class combines cable and line protection with semiconductor protection.    HRC fuses (DIN) 3NA• High Breaking capacity of 120kA• Dual indication for fault detection• ISI marked• Highly compact: upto 100A in size 000• Utilization Category gG• Rated breaking capacity: 120kA (AC), 25kA (DC)

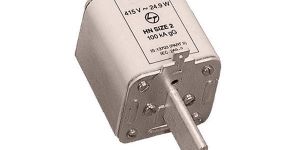

HRC Fuse Link range covers ratings from 2A to 800A. HRC Fuse-link range is available in 14x51 Cylindrical, DIN and BS type High breaking capacity: 80kA for Cylindrical & BS Type & 100kA for DIN Type The complete range conforms to IS 13703 (Part 2) IEC 60269-2 standards Let-through energy value of L&T’s fuse is extremely low; it leads to optimal selectivity for the cable size & downstream protection devices. Low power loss also leaded to low running cost & minimum heating. Fuse blown indication is available through a red pop-up indicator Suitable fuse base & fuse pulling handle are also available

We are offering HRC Fuse, Fuse Base and Holder to the clients. Used in diverse electrical equipment such as condenser, transformer and for the purpose of circuit protection, these HRC Fuses are sourced from some of the most trustworthy Vendors and Manufacturers in the domain. We are HRC Fuse Supplier and Distributor from Mumbai (Maharashtra). HRC Fuse Links & Bases : up to 800A

• Type: Hrc Fuse
• Material: Aluminium, Copper, Plastic
• Certification: CE Certified, CQC Certified, IAF Certified, ISI Certified
• Application: Domestic, Industrial, Machinery
• Color: Blue, Grey, Metallic, Silver, White
• Power Type: AC, DC
• Operating Temperature: -25 +85deg C, -40 +70deg C, -45 +55deg C, -70 +40deg C
• Feature: Auto Controller, Dipped In Epoxy Resin, Durable, High Performance, Stable Performance
• Warranty: 1yr, 6months
• Humidity: 60%, 65%, 70%, 80%, 85%90%
• Puncture Voltage: 110V, 220V, 380V, 440V, 525V

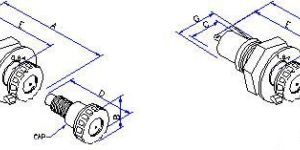

Base and Carrier are moulded from High Grade Phenolic Moulding Powder. • Base and Carrier mouldings are non-inflammable and non hygroscopic surface. • Phosphos Bronze contact to ensure firm contact with base, contact block made of brass. • Tested as per IS : 13703 ( Part 1 ) : 1993. at RTC ( Regional Testing Centre, Mumbai ) for : High Voltage Test Insulation Resistance Test Temperature Rise Test

RBCO Voltage (Potential) Transformer fuses offer short circuit protection to all types of Voltage transformers. They are designed to take care of Switching transient and to ensure source protection against any type of faults including interturn shorts.

• Voltage: 500V
• Current Rating: 2A
• Brand: SIEMENS
• Fuse Type: HRC FUSE
• Braking Capacity: 120KA
• Size: NH00

HRC combination switch fuse units and change over switches confirming to IS:13947.3/ IEC :947-3. Indo Asian combination SwitchFuse units quick make and break   from 32A-800A TPN / TPNS in Open Execution/in sheet steel enclosure with HRC fuses, Bolted type/Din type /Cylindrical fuses 80ka ISI approved are also in demand by the panel builders and industries.
