Hylax India Pvt Ltd Borivali West, Mumbai, Maharashtra

Lasers can be used to polish metal surfaces like steel to achieve better smoothness by a process such as surface metal melting through laser beam high intensity heating. Process parameter setting is critical to achieve good results in practise. In hard disk industry this is one of the processes used in suspension manufacturing.

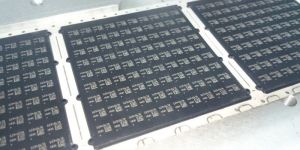

Quad beams laser marker system is an evolutionary breakthrough in traditional laser marking in the semicon’s lead frame marking industry. Having four laser marking heads with a single laser source, hylax’s quad beams laser marking system is capable of achieving double the capacity output of traditional dual heads system. With our technological innovation, using dsp board controller for each head with real time synchronisation interface between them, all controlled by a master pc, the system is capable of marking serialized 2d data matrix codes concurrently from the four marking heads. Fewer number of laser sources reduces cost and laser spares requirement for long term maintenance. With our all round competency in this field we stand ready to assist in your requirements. Pls contact us through the buttons below or write us a more detail note in our contact form.

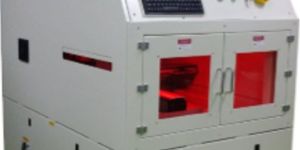

Hylax ht7010 pcb laser marking system is a cost effective tool to replace printed labels and other methods of having unique numerical codes on pcbs by marking serial numbers, barcodes, 2d matrix (e.g. For tracking purpose), text and even logo directly onto the pcb surface.

Hylax ht2000 series of uv lasers are very effective in micro range clean marking and cutting applications. Due to their low heat generation during the uv laser processing, it has become a viable alternatives to conventional cutting and trimming methods.

Hylax ht5000 series of fiber lasers are well-known for being maintenance-free and having a long diode operating life. With a long lifespan and affordable price, the fiber laser systems has become the best laser solution in many manufacturing industries. The fiber laser comes with an integrated control laser unit and hypermark control software.

Hylax ht6000 series of co2 lasers have an all metal sealed tube design and proprietary manufacturing process to ensure high gas purity, essential for long operating life. It is economically priced, low utility cost and ideally suited for use in industrial manufacturing applications.

Hylax ht9000 series of fiber green lasers are designed to deliver the highest performance in many laser process applications. Bundle with fiber technology architecture, the laser is well known for its maintenance-free operation with long laser diode life makes it widely sought after laser prcess solutions in many industries.

Hylax HM109DPH is a cost effective and yet fully featured and highly reliable equipment for the laser PCB cutting or depaneling industry. Besides PCB it can also singulate or cut flex circuits of materials like polyimide. It is able to cut PCB of thickness up to 1 mm well with no charring. The machine can mark the same PCBs. This is made possible by the powerful, flexible and user friendly software developed in-house.

Hylax has a product tool using a scanhead to deliver a laser beam for spot welding of miniature components. With the in-built scanvision technology this tool can be used to rapidly weld small or large components accurately. The inline vision is used to find fiducial points on the product before operation to compensate for location drift where accuracy is required down to micron level. Post operation vision check can be added to ensure that weld quality is acceptable before continuing downstream.

This laser machine purpose is to ablate off specific gold coating shape area from metal surface of items like connectors. The high peak pulse laser is able to achieve a good removal result at a very high unit per hour. Using a low cost yag laser the machine was able to perform the same function as other more expensive laser type.

There is demand in manufacturing technics like in production of connectors to selectively remove resist coatings on metal for subsequent plating process. By opening selective windows and just plating the important areas, significant material cost savings can be realised for elements like gold or other precious metals. This machine is used to do rapidly ablation of connectors in a reel form moving at high speed through the tool. Special laser characteristic is needed to remove the resist coating cleanly and completely. Beam shaping optic is used to create the exact shape required for the plating process. The design is complicated by the need for rapid changeover between different product models and material flow direction and angle.

Hylax has designed and manufactured a direct fiber diode laser product for used in applications such as reject dot marking on steel parts. We design our own diode high current electronic circuitry with te cooling stabilisation and embedded controller to control the whole module including lcd display for operator interface. Laser output is through a fiber with a focus lens at the output end. The product is proven in high quantity and long term operation in customer sites.
