Industrial Machinery & Tools Corporation Opera House, Mumbai, Maharashtra

We are offering Universal Auto Diagnostic Tool. the universal auto scanner, which can diagnose all asian, european and american cars, such as bmw, benz, vw, toyota, honda, mitsubishi, isuzu, mazda, ford, buick cherry, southeast, geerly, and so on. they are with color screen, self-learning function, warning function, and conveniently online upgrading function.

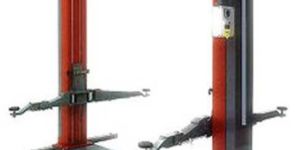

We offer Two Post Electro Hydraulic Vehicle Lift. 2 Post Electro Hydraulic Vehicle Lift SPECIFICATION - Lifting Capacity - 3.5 Tons Lifting Height - 1800 mm Overall Height - 2757 mm Width Between Post - 2680 mm Total Width - 3453 mm Base Measurement - 483 x 432 mm Lifting Time -

We offer Tool Trolley Model - 7. IMTC Tools Trolley: Features :- Size of Trolley: Height– 900 mm Width– 550 mm Depth– 500 mm. 2 Drawers & a Cupboard. A Detachable Tray at the top. Pneumatic Piping done to attach pneumatic accessories. Movable Trolley with castor wheels with lockable arrangement. Instruction Sheet Holder.

We offer Tool Trolley Model- 6. IMTC Tools Trolley: Features :- Size of Trolley: Height– 650 mm Width– 600 mm Depth– 325 mm. Box Type Trolley. Four Trays (2 opening on each side). 2 Lockable Drawers (1 opening on each side). Castor wheels for free movement within the workshop. Instruction Sheet Holder.

We offer Tool Trolley Model-5. IMTC Tools Trolley: Size of Trolley: Height– 1030 mm, Width– 500 mm & Length – 800 mm. 2 Removable SS Trays Bottom Tray with oil Draining Facility Rubber Sheet on top Tray Castor Wheel for Free Movement with in the workshop

We offer Tool Trolley Model-4. IMTC Tools Trolley: 75 Min Express Service APE Trolley. Features :- Size of Trolley: Height– 920 mm, Width– 810 mm Depth– 420 mm. Body Thickness – 1.2 mm. 2 Drawers and 3 Fixed trays and partitions to keep various spares parts and hardware item. A Detachable Tray attached on side to collect and dispose used oil from vehicles. Pneumatic Piping done to attach pneumatic accessories.

IMTC Tools Trolley: Size of Trolley: Height – 1110 mm Width– 700 mm Depth– 440 mm. 3 Drawers and 1 Compartment. Castor wheels for free movement within the workshop. Instruction Sheet Holder.

We offer Tool Trolley Model-2. IMTC Tools Trolley: Features :- Size of Trolley: Ht– 1010 mm, Width– 530 mm Depth– 510 mm. Completely enclosed cabinet. 3 Horizontal partitions inside the cabinet. SS Top to keep various spare parts. Movable Trolley with castor wheels with lockable arrangement. Instruction Sheet Holder.

We offer Tool Trolley. IMTC Tools Trolley: Size of Trolley: Height– 720 mm, Width– 500 mm & Depth– 500 mm. 2 Drawers: H – 115 x W – 475 x D – 485 mm 2 Drawers: H – 140 x W – 475 x D – 485 mm 1 Drawer: H – 170 x W – 475 x D – 485 mm High Grade Steel Plates – Power Coated 45 Kg. Slider with fully openable drawer Total Capacity: 500 Kg. Aluminium handles. Metal Castor wheels for free movement within the workshop. Instruction Sheet Holder.

We offer Imtc Pneumatic Grease Dispenser. IMTC PNEUMATIC GREASE DISPENSER Capacity Pressure Output per stroke Hose Length 5 kg 8000 PSI 350 gms 2 meters 10 kg 8000 PSI 350 gms 2 meters 25 kg 8000 PSI 350 gms 2 meters 100 kg 8000 PSI 350 gms 2 meters 200 kg 8000 PSI 350 gms 2 meters

We are offering imtc mechanical gear box, imtc mechanical gear box capacity close height extension height 1 ton 80 mm 600 mm standard : 10 mm, 12 mm, 14 mm, 16 mm and 20 mm heavy duty: 16 mm and 25 mm.

Color : Grey

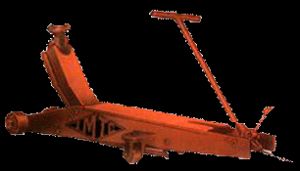

we offer Imtc Hydraulic Trolley Jack. IMTC HYDRAULIC TROLLEY JACK Capacity Close height Open height Length of chassis 2.5 MT 140 mm 490 mm 1455 mm 5 MT 180 mm 500 mm 1580 mm 5 MT 200 mm 600 mm 1700 mm 10 MT 200 mm 600 mm 1700 mm 15 MT 200 mm 600 mm 1700 mm 20 MT 200 mm 600 mm 1700 mm

Type : Jacks

Application : Automobile Use, Industrial Use

Color : Red

Feature : Advanced Technique Used, Corosion Resistant, Fine, Finished, High Strength, Longer Working Life, Low Maintenance, Rugged Structure

Condition : New

Driven Type : Electric, Hydraulic

Load Capacity : 2ton, 3ton, 4ton, 5ton, 6ton

Country of Origin : India

Automation Grade : Automatic, Manual, Semi-Automatic

we offer imtc hydraulic jack (short series) capacity close height open height length of chassis 2.5 mt 137.5 mm 375 mm 650 mm 3 mt 162.5 mm 412.5 mm 712.5 mm 3.5 mt 162.5 mm 412.5 mm 712.5 mm

We are offering imtc hydraulic hoist model 8 capacity : 16000 kg. (16 tonnes) no. Of posts (ram) : 2 ram dia : 355 mm (14”) lifting height : 1525 mm (60”) oil reqd. : 455 litres 100 gallons oil tank : 410 litres 90 gallons min. Oper. Air pressure : 10 kgcm2 (150 lbs) size of super structure : 125 x 250 x 7300 (5” x 10” x 24”)

We are offering hydraulic hoist, imtc hydraulic hoist model 7 capacity : 14000 kg.(14 tonnes) no. Of posts (ram) : 2 ram dia : 355 mm (14”) lifting height : 1525 mm (60”) oil reqd. : 455 litres 100 gallons oil tank : 410 litres 90 gallons min. Oper. Air pressure : 10 kgcm2 (150 lbs) size of super structure : 125 x 250 x 7300 (5” x 10” x 24”)

We are offering hydraulic hoist , imtc hydraulic hoist model 6 capacity : 12000 kg. (12 tonnes) no. Of posts (ram) : 2 ram dia : 318 mm (12.5”) lifting height : 1525 mm (60”) oil reqd. : 410 litres 90 gallons oil tank : 320 litres 70 gallons min. Oper. Air pressure : 10 kgcm2 (150 lbs) size of super structure : 110 x 225 x 7300 (4.5” x 9” x 24”)

we are offering IMTC Hydraulic Hoist Model 5 Capacity : 10000 Kg.(10 Tonnes) No. of posts (Ram) : 2 Ram Dia : 318 mm (12.5”) Lifting Height : 1525 mm (60”) Oil Reqd. : 410 Litres 90 Gallons Oil Tank : 320 Litres 70 Gallons Min. Oper. Air Pressure : 10 kgcm2 (150 Lbs) Size of Super Structure : 100 x 200x 7300 (4” x 8” x 24”)

We are offering Hydraulic Hoist , IMTC Hydraulic Hoist Model 4 Capacity : 8000 Kg.(8 Tonnes) No. Of posts (Ram) : 2 Ram Dia : 267 mm (10.5”) Lifting Height : 1525 mm (60”) Oil Reqd. : 320 Litres 70 Gallons Oil Tank : 227 Litres 50 Gallons Min. Oper. Air Pressure : 10 kgcm2 (150 Lbs) Size of Super Structure : 100 x 200 x 7300 (4” x 8” x 24”)

We are offering IMTC Hydraulic Hoist Model 3 Capacity : 7000 Kg(7 Tonnes) No. Of posts (Ram) : 1 Ram Dia : 355 mm (14”) Lifting Height : 1525 mm (60”) Oil Reqd. : 227 Litres 50 Gallons Oil Tank : 205 Litres 45 Gallons Min. Oper. Air Pressure : 10 kgcm2 (150 Lbs) Size of Super Structure : 110 x 225 x 6100 (4.5” x 9” x 20”)

We are offering IMTC Hydraulic Hoist Model 2 Capacity : 6000 Kg.(6 Tonnes) No. Of posts (Ram) : 1 Ram Dia : 318 mm (12.5”) Lifting Height : 1525 mm (60”) Oil Reqd. : 205 Litres 45 Gallons Oil Tank : 160 Litres 35 Gallons Min. Oper. Air Pressure : 10 kgcm2 (150 Lbs) Size of Super Structure : 110 x 200 x 6100 (4” x 8” x 20”)

We are offering hydraulic hoist , imtc hydraulic hoist model 1 capacity : 4000 kg. (4 tonnes) no. Of posts (ram) : 1 ram dia : 267 mm (10.5”) lifting height : 1525 mm (60”) oil reqd. : 160 litres 35 gallons oil tank : 114 litres 25 gallons min. Oper. Air pressure : 10 kgcm2 (150 lbs) size of super structure : 100 x 110 x 4550 (4” x 4.5” x 15”)

we offer imtc air compressor two stage. 1). two stage (maximum pressure 12 kg cm2 or 175 psi model no: imtc 300 motor : 3.0 hp phase: three no. of cylinders : two piston displacement: 10.97 cfm tank capacity: 160 ltrs 2). two stage (maximum pressure 12 kg cm2 or 175 psi model no: imtc 300 motor : 3.0 hp phase: three no. of cylinders : two piston displacement: 10.97 cfm tank capacity: 220 ltrs 3). two stage (maximum pressure 12 kg cm2 or 175 psi model no: imtc 500 motor : 5.0 hp phase: three no. of cylinders : two piston displacement: 17.5 cfm tank capacity: 250 ltrs 4). two stage (maximum pressure 12 kg cm2 or 175 psi model no: imtc 600 motor : 7.5 hp phase: three no. of cylinders : two piston displacement: 21.5 cfm tank capacity: 250 ltrs 5). two stage (maximum pressure 12 kg cm2 or 175 psi model no: imtc 1000 motor : 10.0 hp phase: three no. of cylinders : three piston displacement: 31.5 cfm tank capacity: 420 ltrs 6). two stage (maximum pressure 12 kg cm2 or 175 psi model no: imtc 1500 motor : 15.0 hp phase: three no. of cylinders : three piston displacement: 49.1 cfm tank capacity: 500 ltrs

we offer Imtc Air Compressor Two Stage. 1). Single Stage (Maximum Pressure 9 KgCm2 or 128 PSI Model No: IMTC -5 Motor : 0.5 HP Phase: Single No. Of Cylinders : One Piston Displacement: 1.7 CFM Tank capacity: 45 Ltrs 2.) Single Stage (Maximum Pressure 9 KgCm2 or 128 PSI Model No: IMTC -10 Motor : 1.0 HP Phase: Single No. Of Cylinders : One Piston Displacement: 3.5 CFM Tank capacity: 70-110 Ltrs 3). Single Stage (Maximum Pressure 9 KgCm2 or 128 PSI Model No: IMTC -15 Motor : 1.5 HP Phase: Single No. Of Cylinders : One Piston Displacement: 5.1 CFM Tank capacity: 135 Ltrs 4). Single Stage (Maximum Pressure 9 KgCm2 or 128 PSI Model No: IMTC -20 Motor : 2.0 HP Phase: Single No. Of Cylinders : Two Piston Displacement: 8.5 CFM Tank capacity: 160 Ltrs 5). Single Stage (Maximum Pressure 9 KgCm2 or 128 PSI Model No: IMTC -20 Motor : 2.0 HP Phase: Three No. Of Cylinders : Two Piston Displacement: 8.5 CFM Tank capacity: 160 Ltrs
