Infrared Heaters Dealers in Bhayandar, Mumbai

This is made up of 8-shape high-purity clear quartz twin tube, each tube has Heating Coil of Tungsten material which runs in U shape in the tube which is filled with halogen gas. Power Density up to 150kw/m2 is achieved. Heating up and cooling down time is approximately one second. These heaters are available with gold reflector and without reflector. Reflector is in the form of gold coating on outer rear side of the tube. Due to reflector heat loss from backside is prevented and thus power saving is achieved. This also results in making surrounding work area cooler. This also increases the efficiency and directionality of the heater. There are two standard sizes 11 mm x 23 mm and 15 mm x 32 mm in cross section. Maximum length available is 2000 mm.

Our twin tube fast medium wave infrared heaters has a filament tungsten wire and this tube is filled with halogen gas. The round ceramic base of this heater has a lead wire of 500mm size (one end or two ends) & it is also configured with lead and insulated wires

We hold expertise in manufacturing and supplying high performance Infrared Heater. Infrared Heater, which we offer, is appreciated for raising the ambient temperature and warming the room. Made with top quality raw materials and components, the Infrared Heater is rust resistant and very durable. Clients can avail wholesale Infrared Heaters from us at very affordable prices.

Uses : Shrink packaging tunnels, laminating, thermo forming, plastic forming, fusing plastics, vulcanizing rubber, sterilization, sealing, food warming, electrostatic copying equipment, food processing, drying photo films equipment, curing rubber, drying textiles, drying sand cores, space heaters, thermal copying equipment, pet bottle & jar manufacturing etc. Infrared heaters are of 2 type :   These are specially designed for application that requires infrared radiant heating. It is the most efficient source of radiant energy. Quartz heater can deliver near & far infrared wavelengths which is more effective than a single wavelength, capable of generating full heat output capacity in 40 to 50 seconds, and cool down in less than 15 seconds. They offer excellent life characteristics whether operated continuously or intermittently.Construction : Quartz heater consist of a helically wound resistance coil housed in pure vitreous silica fused quartz tube. The quartz tube is terminated with specially designed ceramic insulating caps. The ceramic caps are securely fastened to the quartz tube with high temperature cement. Quartz heaters are designed for horizontal mounting position.   (2) Tubular Infrared Heater :   These heaters are manufactured in single/dual U bend element. East mounting.Construction : It is made from Incolay tube. Swagged type construction, gives long life & no breakage. It can be used vertical or in any position.Working Temperature : 350°C to 800°C.While Placing Order : Please mention diameter, length, wattage, voltage, lead wire length, special features if any.

• Power: 1000 W
• Voltage: 230 V
• Frequency: 50 Hz
• Packaging Type: Box
• Size: 245 X 60 mm
• Mean Surface Temperature: 315 Deg C
• Weight: 200 gm

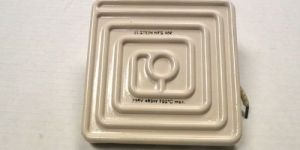

Ceramic Flat Infrared Heaters, Water Immersion Heaters, infrared ovens
