Infrared Tube Heaters Dealers in Mumbai

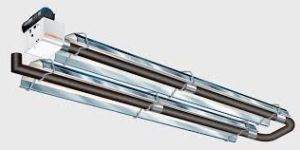

TWIN TUBES IR HEATERS

Get Price Quote

QUARTZ GLASS The quartz glass is very pure and provides good transmission and temperature resistance TWIN TUBE The unique twin tube design offers high radiation power and very good mechanical stability allowing emitters of lengths up to 3.5 meters. Emitters are available in Short Wove, Medium Wave, or Long Wave versions. That gives you the possibili-ty to select the optimum wavelength for the material to bo hooted. Dimensions and filaments are matched to requirements. GOLD/ WHITE COATED Twin Tube Infrared Heater is made by virtue of a gold & white coated which con emit heat directly to the product. A coat-ing on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled. FEATURES Infrared heaters can be matched to material characteristics - following higher process speeds and less energy consumption Directed heat only where needed Infrared ovens needs less space Non contact or medium needed Short response times of infrared heaters for switch on / switch off

twin tube medium wave infrared heater

Get Price Quote

Our Twin Tube MW IR Heater is made up of 8-shape high-purity clear quartz twin tube, with each tube having Ni-Chrome heating coil that runs in U Shape in the tube. Features Heating up and cooling down time is approximately 50 secs. Available with gold reflector and without reflector. The outer rear side of the tube of the reflector has the gold coating. Heat loss from backside is prevented by the reflector, thereby power is saved. Results in making surrounding work area cooler. Increases the efficiency and directionality of the heater. Specifications: Standard sizes (in cross section): 11 mm x 23 mm & 15 mm x 32 mm. Maximum length: 200 mm. Power density: 60 KW / m2 can be achieved. Paint Baking

twin tube medium wave infrared heater

1,000 - 1,500 Per pc

1 P (MOQ)

• Material: Glass
• Country of Origin: Indian
• Warranty: Na

infrared tube heaters

Get Price Quote

Infrared Tube Heaters Various types of heaters like Cartridge Heaters (Low watt & High watt density of various sizes), Ceramic Infrared Heaters (Elstein brand- Germany) and Short-wave infrared heaters.

twin tube medium wave infrared heater

Get Price Quote

• quartz tube: 180°.

Gold plating is done on quartz tube over 180°. These heaters reflect the radiant energy through the opening area only, improving element efficiency by as much as 20% compare to without gold plating heater. Energy cost savings are realized. Reflectors are often not needed. Surrounding work area tempratures are cooler. These heaters are also available with a without gold plating.

twin tube medium wave infrared heater

Get Price Quote

• Standard sizes: 11 mm x 23 mm & 15 mm x 32 mm.
• Maximum length: 200 mm.
• Power density: 60 KW / m2

Twin Tube MW IR Heater is made up of 8-shape high-purity clear quartz twin tube, with each tube having Ni-Chrome heating coil that runs in U Shape in the tube. Heating up and cooling down time in approximately 50 secs. Available with gold reflector and without reflector.The outer rear side of the tube of the reflector has the gold coating. Heat loss from backside is prevented by the reflector, thereby power is saved. Results in making surrounding work area cooler. Increases the efficiency and directionality of the heater.

Twin Tube Fast Medium Wave Infrared Heaters

Get Price Quote

IR wavelength between short wave and medium wave Response time around 1 ~2 seconds Average working life 7000 hours Gold or ceramic coating at rear side as a reflectors Dimensions 15x33mm Max. overall length up to 4M Vertical and horizontal emitters are available

twin tube medium wave infrared heater

Get Price Quote

twin tube medium wave infrared heater, Coil Heater, Ceramic Band Heater
