Inmarco Andheri, Mumbai, Maharashtra

P.T.F.E Packing with Inblend Graphited LubricantAdvantages : Adequate lubrication for low friction runs. No embrittlement.Graphite in Inblend controls the thermal expansion of P.T.F.E by 20%, thus eliminating any jamming, overheating or extrusion.Undeterred heat dissipation for cooler shaft runs without wear. Typical Applications :Steam dryers, water pumps, agitators. Steam / Gas valves. Chemical pumps & valves.

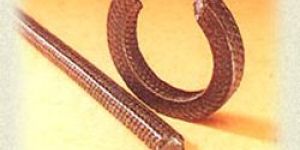

Graphited P.T.F.E Fibre Packing. Advantages : Inblend dispersion significantly improves lubrication, lowers friction by about 25% as compared to pure P.T.F.E.Graphite in Inblend ensures excellent heat dissipation without hardening, thus limiting shaft wear.Inert to most chemicals ... universally accepted & applicable. Typical Applications :Pumps / Valves & reactors handling acids, alkalis & aggressive chemicals.

100% GFO® Fibre Packing Advantages : Less gland adjustment, easy break-in, & even compression in all rings.Six times better heat conduction as against pure P.T.F.E packings at comparatively high speeds.Significantly low thermal expansion thus resisting 'over expansion' extrusion under service. Typical Applications :Acids, alkalis, solvents, hydrocarbons, inorganic chemical handling equipments. Steamvalves, metering pumps, reactors, mixers, autoclave glands.

Ultra Pure Graphite Fibre PackingAdvantages : Extremely low coefficient of friction.Cool shaft run without wear. Heat stabilized, inert, long life & environmentally friendly.Low chlorides, low modulus, pliant-packing. Typical Applications :Glands devoid of external lubrication. Steam valves, thermic fluid pumps. Acid, alkali, solvent pumps & valves. Pumps & valves in nuclear applications.

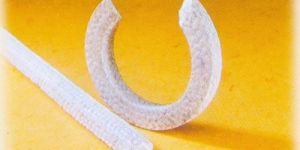

ACRYLIC YARN PACKING WITHINFLON P. T. F. E DISPERSION Advantages: Proprietory Inflon dispersion enhances the density and the sealing ability.Safe & stays clean under operation.Comparatively better mechanical strength as against natural & vegetable fibres. Excellent lubrication leading to minimal shaft wear.An economical choice for fluid handling equipment.Typical Applications:Water handling equipment. Applications involving salt solutions. Equipment handling mild acids and alkalis.Note: Pressure ratings can be improved with the retainer (Bull) rings. Consult our technical cell for further details.Style 125 F- Impregnated with INFLONP.T.F.E. dispersionStyle 125 T - Impregnated with INTHERM graphite dispersion

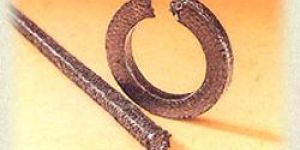

Inconnel Glass Fibre PackingAdvantages : Graphite dispersion ensures high density and moldability to form rings.Exceptional high sealing efficiency & life at high temperature & pressures.Economic & efficient replacement to asbestos packings. Typical Applications :Steam & hot liquid valves & flanges. Oven, furnace, kiln door grooves & flanges. Equipments handling corrosive acids, alkalis, alcohol & solvents. Reactor lid grooves. Equipment handling high temperature clinker.

Glass Fibre Packing with Inconnel WireAdvantages : Added strength due to inconnel wire reinforcement which aids in combating high temperature pressure unlike asbestos.Superior thermal conduction. Typical Applications :Chemical and hot liquid valves. Molten chemicals, acids, alkali valves. Chemical & gas flanges in exhausts and chimneys. Oven, furnace, kiln doors, tank covers.

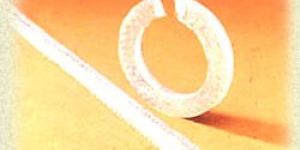

Glass Fibre PackingAdvantages : Superior resistance to heat and combustion.Excellent resistance to chemicals & gases.Does not smolder, stretch or shrink in "Like" heat. Retains high tensile strength.Excellent flexibility even at elevated temperatures. Typical Applications :Furnaces and overns in steel & chemical industry. Fuel gas valves, flanges & kiln covers. Acid and alkali valves (Except HF, HCL and Hot Phosphoric acid). Hot expansion joints / pipe extrusion.

premium Ramie Fibre Packingadvantages: Better Resistance to Mechanical Wear as Against Cotton Fibre Packing. Lowerfriction & Wear.high Density Construction Enables Optimum Amount of the Dispersant Leading to Superior Sealing.economical Replacement to Synthetic Packings.typical Applications:equipments Handling Crystallizing Fluids. Marine Applications Including Stern Tubes, Rudder Post, Bilge Pumps. Water Wheel Glands in Hydroelectric Power Stations.

Carbonaceous Aramid Yarn Packing with GFO® Fibre FacesAdvantages : High compressive & tensile strengths, ensure effective sealing.Due to the Intherm sealer & the carbon fibres, the packing exhibits superior heat dissipation.The GFO fibres reduce the packing & the shaft wear. Universal replacement to Asbestos in arduous operating conditions. Typical Applications :Equipment relevant to paper, water treatment, power, chemical, distillery & petro chemical industries. Screw pumps handling powdered slurries. Fermentors, reactors, mixers & agitators. Application involving slurry, sand & gritty media. As a 'Bull ring'.

Special Carbonaceous Aramid PackingAdvantages : Excellent heat dissipation due to integral carbon.Intimately coated graphite ensures low friction & minimizes the shaft wear.High strength Aramid content ensures dimensional stability. Excellent tear & oxidation resistance. Long life. Typical Applications :Same as in Style 106, but not suitable for food and pharmaceutical Industry.

Carbonaceous Aramid Yarn Packing with P.T.F.E Fibre FacesAdvantages : High tensile packing with added compressive strength.Higher thermal conductivity than Style 105.Improved chemical resistance due to carbon content in aramid. Greater tenacity.Extra long life, higher pressure compatibility. Typical Applications :All applications covered by Style 105, except food & pharmaceutical

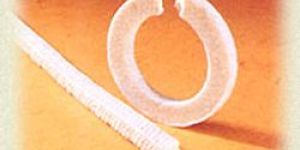

Economical P.T.F.E Yarn Packing for Pumps & ValvesAdvantages : Totally Asbestos free - 100% P.T.F.E - safe for use in food & pharmaceutical industry.Excellent valve stem packing .... complements other packing materials. Typical Applications :Water handling equipment. Valves used in chemical / food / pharmaceutical industry. Formulation mixers, fermentors etc.

Hybrid Fibre Yarn of Expanded P.T.F.E & GraphiteAdvantages : Soft & easy to install. Dimensional stability due to expanded P.T.F.ENo free graphite. Ensures minimal packing disintegration and long life service.Self lubricating, effective heat dissipation leading to cooler running. Typical Applications :Acids, alkalis & hot water handling equipments. Hydrocarbon pumps & valves. Equipments in F & B industry. Mixers, agitators, autoclaves etc.

Carbon Fibre Packing with Inblend Graphited LubricantAdvantages : High compressive strength & yet very flexible in nature.Extra lubrication & blocking agents for better sealing.Heat conductive filaments for longer life & cool running.Resistance to body leakage at emissions. Typical Applications :Boiler feed water pumps, steam valves, dryers, centrifuges, blowers & reaction vessels, furnace doors & inspection window grooves. Acid, alkali pumps & valves.

BELGIAN FLAX FIBRE PACKINGAdvantages:Economical for moderate applications as against asbestos & other synthetic packings.Flexibility, water resistance, elasticity and lubricity of the packing could be enhanced by treating the packing with any of our specially developed dispersant & lubricants such as Inflon, Inlube, Inthermand Inblend.Typical Applications: Hydraulic equipments in marine industry. Stern tubes in ships, Brine pumps & valves. Valves handling sea water. Rudder shafts, bilge water pumps etc. Oil & water pumps in paper industry. Water wheel glands used in hydroelectric power stations.

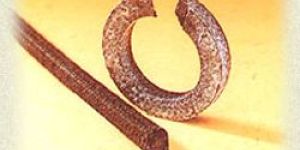

Carbon Fibre Packing with Inconnel or Stainless Steel Wireadvantages is Low Friction Carbon Fibres Jacketed Over Inconnel is S.s Wire Provides Excellent Strength & Does Not Score Stems or Shafts.special Sacrificial "anode", Makes It Suitable for Using with Ingraf Rings Without Causing "pitting" to the Stems.inblend Graphite Based Sealer & Intherm Synthetic Lubricants Further Enhance Sealability. Typical Applications :valves in Utility and Power Generation Plants. Spreader Stroker Services, Calcinators, Steam Vent Valves, Reheat Steam Control Valves Etc.

Aramid Yarn Packing with GFO® Fibre FacesAdvantages : High penetration & abrasion resistance of aramid fibers ensure corner safety of the packing in reciprocating equipments.'GFO' fibers at the faces facilitate low friction for shaft / sleeve safety.Excellent heat dissipation & cool run due to integral graphite on the faces.Longer sealing ability due to excellent dimensional stability. Typical Applications :Water scrubber pumps, fine slurry pumps. Liquid ammonia pumps in fertilizer industry. Gritty & abrasive mediums. Reactors & autoclaves (with Ingraf Rings).

Pure Aramid Fibre Yarn PackingAdvantages : Very high strength and tenacity. High wear resistance.Exceptionally high penetration resistance to abrasives & sharp crystals.Safe for food & pharmaceutical industry. Typical Applications :Sludge & sewerage handling equipments in 'Water treatment' & 'ETP' plants. Molten synthetics, epoxy resins, viscous fluids. Food stuffs, fruit pulp, paper pupl, concrete, sand, grits etc. As anti extrusion 'Bull' Rings for excessive clearance in glands.

Aramid Fibre Yarn Packing with P.T.F.E Fibre FacesAdvantages : Tough aramid fibers ensure corner safety & dimensional stability. Aramid core provides strength & penetration resistance.Lubricated P.T.F.E ensures low friction, shaft runs without overheating or wear.Extremely durable packing for Ammonia application & fine slurry.Non contaminating, non toxic properties. Ideal for food & pharmaceutical Industries. Typical Applications :High pressure liquid Ammonia pumps, Urea & Carbamate condensate pumps in fertilizer industry. Fine particle slurries, detergents. As anti-extrusion 'Bull' rings, gritty media. Pigments, dyestuffs, paint, emulsions & synthetic molten materials.

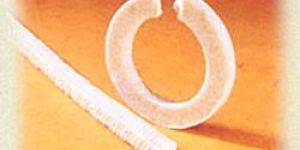

Dry P.T.F.E Fibre PackingAdvantages : Dry P.T.F.E fibers ensure safety and purity of the medium.No oil - no danger of combustion. Limiting oxidation index - 95% of 02.100% P.T.F.E fibre volume, reduces volume loss, unlike dispersed packings. Typical Applications :Liquid oxygen pumps & valves, air compressors. Acids, alkalies, solvents, organic or inorganic chemical equipment glands. Hydrogen services, mixers, agitators, powder dryers.

Expanded P.T.F.E Fibre Packing with Inlube SealersAdvantages : Soft expanded P.T.F.E does not 'swell' like raw P.T.F.E packings at high temperatures.Excellent sealability at low speed & static equipments due to uniformcompression throughout the set.Inert to most chemicals, safe foruse, non-contaminating. Typical Applications :F & B equipment glands. Pharmaceutical, chemicals, dyestuffs, paints & hygiene industry.

P.T.F.E Yarn Packing with Inlube Synthetic LubricantAdvantages : Special Inlube lubrication for high speed compatibility.Inflon P.T.F.E. dispersion aids in handling high pressures.Non-Toxic ingredients & inert nature ensures safety and purity of medium. Typical Applications :Acid, alkali & aggressive organic / inorganic chemical pumps & valves. Equipment glands where no contamination is allowed. Dyestuffs, synthetic resins, paints, pulp &paper chemicals.

Carbon Filament Yarn PackingAdvantages : Due to the excellent thermal evacuation there is no heat fatigue build up through friction.The resilient low modulus construction enables even higher sizes to bend & wrap itself around shafts / stems of smaller diameters.Almost frictionless even under excessive contact pressure.Could be loaded with in-house developed Inlube synthetic dispersion for demanding applications. Typical Applications :Acid, alkali or solvent pumps, mixers & dryers. Stern tubes, soot blowers, &reaction vessels. Steam valves (with Ingraf rings), thermicfluid applications.
