Instrumentation Cable Dealers in Marine Lines, Mumbai

annealed bare/ uniform coated with tinned/silver platted, high conductivity, and electrolytic grade solid/stranded/flexible conductor. Insulation conductor are insulated with general purpose pe / hr / frls / lszh / pvc compound / or any other dielectric material as per customers specification Colour of dielectric : cores are identified with different type of color scheme as per requirement as below:- as per is:1554[pt-i]:88, 694:90. as per iec, itd or number printing. as per customers scheme. Pair/triad/quad: two/three/four cores are uniformly twisted together to form a pair/triad/quad with maximum lay length 80 mm/as per requirement of customer. The lay shall be so chosen as to minimize cross talk in the cable. Individual shielding : if required, individual shielding may be of poly aluminum [thin layer of aluminum foil bonded to polyester film] tape with annealed tinned copper drain wire. It prevents the shorting of adjacent shield and minimizes the cross talk and ground loops. A tinned copper drain wire is installed to provide continuous contact with the shield and allow to connection to ground. Tinning the drain wire reduces galvanic corrosion between drain and shield. Laying of pairs/triad/quad. : pair/triad/quad are laid up with suitable lay. The outer most layers are right hand lay and successive layers are laid up with opposite lay. Then, a polyster tape is provided to bind up laid up pair/triad/quad. Overall shielding : if required, overall shielding may be of annealed tinned copper braiding / poly aluminum [thin layer of aluminum foil bonded to polyester film] tape with annealed tinned copper drain wire. Braiding atc shield has high tensile strength and provides better coverage in flexing application. They are easier to terminate. This provides effective shielding; cross talk and noise are kept to an absolute minimum.  Inner sheath : the laid up pair/triad/quad after shielding are provided with an inner sheath, which may be either extruded inner sheath or wrap with pvc tape. Armouring : it is applied over inner sheath. It may consist of galvanized round steel wires or galvanized flat steel strips  Outer sheath : it is applied over armouring in case of armoured cable or over inner sheath in case of unarmoured cable. The color of sheath is black or grey. The sheath material may be general purpose/hr / frls / lszh pvc compound as per requirement of specification. Typical application : for connection of instruments, process control systems, computers, data transmission etc.

• Color: Black
• Patch Panel Type: Screeed
• Cable Type: Coaxial, Twisted Pair, Screened Cable
• Cable length: 100

• Brand Name: Brimplast
• Features: Affordable Prices, High grade material, Easy to install

We provide a large assortment of high performance Screened Cables that is highly appreciated for optimum designing and accuracy in dimension.   Our range of Screened Cables is developed from the superior quality raw materials under the strict vigil of talented quality control executives.   Features: Affordable Prices. High grade material Easy to install

LT Aerial Bunched cables, also known as LT AB Cables, are distinct from bare conductor overhead distribution. They are good for distribution of electricity to residential, commercial and industrial units. These cables have overcome limitations of PVC insulated cables such as thermal degradation, poor moisture resistance and thermoplastic nature. LT AB cables have higher current rating, higher short circuit rating approximately 1.2 times that of PVC. LT AB Cables have lower cost of laying because of comparatively smaller diameter of cable and higher weight. Installation charges are also low as diameter of the cable is comparatively lesser with smaller bending radius, requiring less space. For longer cable length voltage drop, one size lower cables can be used as compared to PVC insulated cable. LT AB CABLE - FEATURES AB cables are highly reliable and insulation has been developed to withstand extreme cold and intense sunlight. Disturbance and faults occur five to ten times more often in open wires lines than in AB cable lines. There is no risk in touching the live cable and the insulation reduces the number of short circuits and over voltage faults in overhead cables during thunderstorms. Few hardware accessories are needed which are different for different size of cables. Streets can be lit only at little extra conductor for lighting. The cable can be supplied with one or two insulated conductors for street lighting. Convenient Usage In electricity theft prone areas. As replacement of bare lines in rural area & narrow street with limited space. As replacement of bare lines where reliabilities of support is of prime importance. In hilly terrain here cost of erection of overhead lines or under ground cable becomes very high. As reinforcement of existing system with increase in voltage/current carrying capacity. For temporary supplies.Advantages In comparison with bare overhead distribution line AB Cable has very high reliability in maintaining power services because power and neutral conductors are insulated with the best dielectric, resulting in the following advantages: Less fault rate on account of good protection against line and ground faults by high winding falling trees or birds specially in hilly areas and forests. High insulation resistance to earth in all seasons. Neglible lekage currents and low losses. Multiplexer circuits of power and telephone cables could be in the same set of poles. Better adaptability to laid besides with existing overhead bare conductor system without any interference. High capacitance and low inductance leading to low impedance of lines. Lower voltage drop, higher current carrying capacities vis-à-vis better voltage regulations. Longer spans and longer distance lines are possible with better system stability. AB cables are much safer than bare conductors. It can be laid in dense vegetation and forest areas. Additional connections can be easily and quickly made with hot line connectors. Overall lines cost is reduced. Maintenance is very convenient. Very difficult to tap the AB cables, thus reducing theft which leads to lower distribution losess. Since, the tension from the current carrying conductor is totally removed by introduction of messenger wire, the operating temperature of the conductor is 90 c as against 75 c thereby allowing AB cable to carry current equivalent to that of bare conductor of the same size.

We are engaged in offering an exclusive gamut of LT Armoured Cables . we manufacture this product range in both PVC and xlpe outer sheathing. The core & pvc inner sheathed of our products are formed with standard aluminum conductor from 10 SGMM & above. Our firm provide cable ranges from 1 core x 1000 SGMM up-to 4 core x 630 SGMM .

SUPERCAB" is a very reputed brand in the market for screen / shielded cables. Both types of screening. i.e. copper braiding as well as aluminium mylar with continuously running drain wire of 0.5sqmm tinned copper. A very huge stock is kept at our godown of such cable. Copper braided cables are more effective at low frequency i.e. For EMI Whereas Aluminium foil shielding are more effective at high frequencies i.e. For RFI Why use "SUPERCAB" screen cables?1) Improved Attenuation2) Improved Power scum crosstalk3) Less Noise Interference

KEI INDUSTRIES LIMITED is manufacturing LT Power Cables with PVC or XLPE insulation of voltage grade upto 3.3 KV conforming to various Indian and International Standard Specifications. KEI also manufactures other types of cables as listed at the end of this catalogue. CROSS LINKED POLYETHYLENE (XLPE) XLPE means cross-linked polyethylene or vulcanized polyethylene. The basic material is low density polyethylene. Polyethylene is a thermoplastic material consisting of long chain of hydrocarbon molecules. At elevated temperatures these molecules tend to move relative to one another so that the material becomes increasingly deformable and will eventually melt at the temperature around 110oC. By means of process similar to the vulcanization of rubber the polyethylene molecules can be cross-linked. The process of cross-linking or vulcanization consists of producing chemical bonds at interval between the long molecular chain to give a "ladder" effect which prevents slippage between molecules. As a result of cross-linking the material becomes heat resistant and does not soften at higher temperatures. Further it has better resistance to stress cracking and good resistance to ageing in hot air. With the change of structure there is no adverse effect on electrical properties. Advantages of "KEI" XLPE CABLES Dielectric losses are very small. Higher current carrying capacity. Higher short circuit rating 250oC. as against 160oC for PVC. KEI XLPE can retain flexibility down upto – 40oC. Jointing and Termination is easy. Light in weight. They are not prone to fatigue damages due to vibrations or loading cycles. Has better resistance to most chemicals, oils, acids, etc. Can be installed along cable routes without elevation limitations.

Multicab has established its name in India and abroad for its quality and commitment to customer satisfaction.To meet ever increasing demand of POLYCAB cables, POLYCAB has put up a new state of the art manufacturing unit at Daman (U.T.). The manufacturing of XLPE insulated heavy duty cables is by adaptation of latest technology. The XLPE cables are manufactured as per IS-7098 Part-1 & Part-2 and can also be manufactured to meet the requirements of any of international standards like BS-5467, IEC-60502, DIN etc.The XLPE compound used is obtained from reputed international sources, meeting all required parameters. The cables are manufactured in highly quality conscious environment with testing and inspection from raw-materials to finished cable stage. The assurance to the quality is further ensured by ISI certification on cables and ISO-9002 certification by UL, USA.

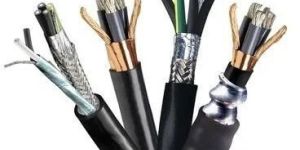

Instrumentation cable is generally a shielded, twisted pair cable utilized for data transfer in instrumentation process that measures temperature, pressure and flow rate in power generation & distribution control systems. These kinds of cables are mostly used in various engineering industries or industrial plants like chemical & fertilizer industries and many others. It requires very careful quality testing while manufacturing & designing the cables as it offers consistent performance and monitoring of machinery which are critical to the operations of various industrial & manufacturing plants. Distributor, dealer, wholesaler, exporter, supplier and manufacturer in Mumbai India to all over the world since 1990 with assured quality, safety, replacement guarantee and warranty.Ever top LED manufactures & exports diverse range of instrumentation cables that suit to various instrumentation process. With our vast experience in this field.

There are many options of cables that we at Prabhat Cables provide for a divergent requirements of applications. Low tension cables are as diverse as they are required in their applications. Whether copper/aluminium/armoured /unarmoured/ fire resistantFR/or fire retardant zero halogen FRZH. The solid or stranded copper/ aluminium cables are insulated with cross linked polyethylene (XLPE) or pvc compound as per requirements of the IS for various cored cables. They are then laid up in cores as per required and bunched together by laying process with appropriate lay length. These laid up cores are then inner sheathed with wrapped pvc tape or extruded pvc sheathing. If required armouring is then done by GI round wires or strip wires wound on this inner sheath. These laid up cores duly inner sheathed and armoured are then inner sheathed with PVC/FR PVC/FRLS PVC or FRZH sheathing compound.

We are offering lt cable, ht cable.

ONTROL CABLES are primarily used in all types of electric utilities, industrial and commercial markets. These products are mainly used in MACHINERY, MACHINE TOOLS AND APPLIANCES, MEASURING, CONTROL, HEATING AND AIR CONDITIONING TECHNOLOGIES for permanent connections in cable chains, etc. The halogen-free cables and wires are internationally certified and you can choose from our comprehensive range of standard products or can ask for cables / wires with special properties to meeting your requirement.

1100 Volts grade — BASEC/KEMA/(CPRI/ERDA Tested) Control Copper Cables, Solid/Stranded conductor, PVC / XLPE Insulated, cores laid up, PVC / FR / ST2 / FRLS / LSZH taped / extruded innersheath, Unarmoured/ Armoured, extruded PVC / FR / ST2 / FRLS / LSZH sheathed cables from 2 to 100 Core in 1.5 and 2.5 sq.mm as per IS 1554/IS 7098 (Part 1) 1988 and generally confirming to IEC 60502-1 / ES 5467 / ES 6724.

Screened Cables, Compensating Cables, control, co axial cables

• Country of Origin: Made in India
• Brand: KEI
• Packaging Type: Roll
• Roll Length: 90 m
• Core Material: Copper

PVC (Poly Vinyl Chloride) insulated Power Cables have proved integral to all distribution networks in low tension, fixed installation. They are also used as control cables for process and manufacturing industries, and in mining industries involving fixed installation. PVC Cables are suitable for continuous use between 30°C and 70°C and upto 85°C for Heat Resistant applications. PVC, as insulation and sheath compounds, has the following superior features :- Strong and made for easy handling Resistant to water, moisture, oils and chemicals PVC black compounds can resist ultraviolet degradation Specially formulated PVC is flame retardant and reduces emission of halogens and smoke We have a modern compounding plant for making PVC insulation and sheathing compounds, according to our own formulae and strict quality control. Further, raw materials meant for blending in the compounding plant are subject to comprehensive chemical, electrical and mechanical tests before acceptance. PVC Cables are manufactured according to IS:1554 (Part I) up to 1.1 KV grade. All Cables have the ISI Certification.

Trailing cable Available with aluminum & copper conductor and various combination of metal sheath namely poly-aluminum sheath lead sheath aluminum sheath in combination with or without copper wire screens.

Application:- These Cables are designed to carry communication and control signal in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue data or voice type and from a variety of transducers such as pressure, proximity or microphone. Collectively and individually screened pairs are available within the range where further signal security is required. The instrumentation cable offers total interference free data transfer in measuring, process-control & security systems. Instrumentation process in any industry is a very important factor for controlling various parameters during process. Microprocessor based control devices demand very low noise level and attenuation of signals in the cable. This calls for careful designing and manufacturing of cables with stringent quality control.   Description:- Unique make Signal Cables, Annealed Bare/Tinned copper conductor, PVC insulated and sheathed, shielded with Aluminum backed mylar taped with Annealed tinned copper conductor drain wire in continuous contact with aluminum side of tape, Instrumentation Armoured/Unarmoured Cable conforming to BS:5308/ll/1986&IS:1554/Part-l/1988. Available Range: 0.2 sq.mm to 2.5 sq.mm in cores, pairs, Triads & quads.

LT XLPE Power Control Cables, ball lock cable ties, DC Motor

One of the major concerns of the organization is to make available only quality approved products to the buyers and thus we check the entire range at all stages. Working with a pool of professionals, we are offering excellent quality product from Mumbai(India).

Control Cables, Electrical Cables, WELDING CABLES, Telephone Cables

Lt Cable, Cable, Cable Wire, House Wires, ht cable, instrument cable

Control Cables, polycab cable, Lan Cables, screened flexible cables

Instrumentation Cables

Industrial Control Cables, Industrial Power Cables, lv xipe cables

Instrumentation Cables, Cable Accessories, Proximity Sensors

Lt Power Cables, Fiber Optic Cable, ht power cable

unarmoured screen cables, wire and cables, Power Cables

Control Cable, Wire, pvc sheathed, HDPE Pipe Coupling, panel wires

Lt Xlpe Cables, Aluminium Cables, copper armoured cables, Flexible Wires
