Insulating Paper Dealers in Mumbai

• Material: Paper
• Size: 25-500 mm
• Temperature (deg. Celsius): 130 deg C
• Form: Paper Rolls
• Usage/Application: Transformer Insulation
• Weight (kg): 130 gsm

Electrical Insulation Materials (imported) Insulating Kraft Paper & Semi Conducting Kraft Paper Insulating Crepe Paper in 78, 100, 130, 145 gsm thickness with base paper of 2, 2.5, 3 mil Semi Conducting Black Crepe Paper (used for Shielding) in 78, 100, 130, 145 gsm thickness with base paper of 2, 2.5, 3 mil. Aluminium Crepe Paper & Aluminium Backed Perforated Kraft Paper Kapton ® Polyimide Film & Adhesive Tapes… for High Temperature. Aluminium Foil: 20 micron onwards. Vulcanized Fiber Sheet: 0.8 & 1.6 mm Crepe Sequencing Tape & Polyester Woven Tape Polyester or Mylar Film High Temperature Fiberglass Sleevings (H & F class) YARNS: High Temperature Yarns (for >1000°C), suitable for Thermocouple or Compensating Cable.

• Material: Insulation DMD fleece Paper
• Size: 40 Inches
• Thickness: 0.10mm-0.60m
• Type: Insulation Paper
• Packing Type: Roll

• Material: Paper
• Packaging Type: Standard
• Temperature (deg. Celsius): 130 deg C
• Size: 25-500 mm
• Form: Paper Rolls
• Usage/Application: Transformer Insulation

• Size: 0-20 Inches, 20-40 Inches
• Material: Paper
• Thickness: 00-0.60 Mtr
• Color: White
• Form: Paper
• Thickness: 0.25-2 mm

Advantages : Mechanical toughness and (in the grade) flexibility Inherent Di-Electric Strength Unaffected by most solvents, acids Compatible with varnishes, adhesives & transformer fluids

Electrical Insulation Kraft Paper is Suitable For Aluminium & Copper Conductors Wrappings Sizes Rauges Form 1.5 mill to 5mill

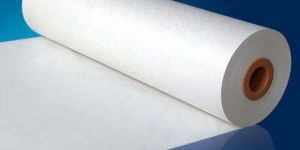

Nomex® Type 410 is a calendered insulation paper which offers high inheritent dielectric strength, mechanical toughness, flexibility and resilience. Also available in uncalendered variety (Type 411), for oil filled transform (Type 910). ADVANTAGES: Class H Insulation Mechanical toughness and (in thime grade) flexibility Inherent Di- Electric Strength Unaffected by most solvents, acids & albalies Compatible with varnishes, adhesives & transformer fluids

Electrical Grade Insulating Kraft Paper manufactured by M/s: Aura Paper Industries. We offer this material in 2 mil, 2.5mil, 3 mil, 5 mil and 10 mil.And Crape Paper, Semi Conducting Crape Paper.

• Size Range: 70 sq mm to 150 sq mm

Kraft paper insulation is most commonly used in oil filled transformers. The plain kraft papers are wrapped in number of layers on conductors, to acquire the needed insulation strength. However, plain kraft paper has limitations of the flexibility and leads to breakage of insulation in tight shaping of the coils. For this purpose, kraft papers are fabricated or creped. The folds made in creping process, increases the elasticity and flexibility during shaping of coils. It also enlarges the surface area of insulation and absorbs insulating oils resulting in better insulation and heat dissipation during operation. Crepe Kraft Paper Insulated Copper Cables are mainly used as an insulation in oil cooled transformers, current transformers of type IMB, CT, CVT as leads and shields. Crepe paper has 300% more strength in machine and cross machine direction and hence is more resistant to breakage. It can also take various shapes of the surface being insulated. The cable is wound on FRP Rings, 3 to 12 turns as per transformer application. This is also most suitable as lead wire and terminal wires of PT windings.

Direct Importer Of "AMOTFORS" Sweedish Origin Electrical Grade Insulation kraft Paper Used For Interlaying Of Transformers and Copper & Aluminium Conductors wrapping ( Coverings Ranges Form 40 Micron (1.5 mill) To 125 micron (5ml).

We are the major suppliers to some of India's leading Electrical Equipment companies like ABB, Alstom, Bharat Bijlee, CG Global, Emerson Trident, Leroy Somers, Cummins Generator Technologies, Siemens etc. As a result of our relentless pursuit of quality, we have obtained Product Certification from Underwriters Laboratories, USA. In the current manufacturing scenario where manufacturers are competing to produce world class products at competitive rates, manufacturers are looking to simplify production lines by outsourcing components and processes. Our company has a Kit making facility which offers insulation material in ready to use form as per the requirement of the customer. Through processes such as close tolerance slitting, cuffing, die cutting, heat forming, punching, etc., the electrical insulation material is converted to insulation components like Wedges, Slot Cover, Phase Separators, and Slot Liner as per the specification of the customer. These components are packed in individual bags referred to as "Insulation Kits".

Insulating Paper offered by us is highly demanded by the clients in the national and international market. Insulating Papers are fabricated using the superior quality raw materials and technically advanced machinery. Available in various sizes, dimensions and thickness, the Insulating Papers are accessible at the most competitive prices in the industry. Insulating Papers are manufactured keeping in terms with the international quality and norms. The conductivity and breakdown voltage properties of the Insulating Paper have met specific specifications of the clients.

• Material: Dupond
• Packaging Type: Roll
• Thickness: 0.25 - 2 Mm
• Brand Name: Nomex
• Tensile Strength: 100 mpa

• Thickness: 0.05 mm-0.50 mm
• Color: Brown
• Features: High purity, Heat resistance , Resistance to ageing.
• Packaging Type: Roll
• Size: As per requirement
• Usage/Application: Transformer Insulation
•  :

• Material: PVC
• Thickness: 0.5 to 1 mm
• Country of Origin: Made in India
• Flexural Strength: 120 Mpa
• Packaging Type: Roll
• Density: 1.3-1.4 g/cm3

INSULATION PAPER

Insulating Paper

We are a well-known Importer and Supplier of Insulating Kraft Paper. The high purity of the virgin fibres ensures that the product is totally free from impurities and conductive particles in particular. The Insulating Kraft Paper is available in rolls with a maximum width of 1000 mm and is widely used as electrical insulation wrap on aluminum and copper wires by conductor manufacturers, electrical insulation between layers of wound coils in electrical motors, capacitors, transformers and such electrical equipment. Details Make : Swedish �Nordic Amotfors�Thickness : 40µm, 50µm, 63µm, 75µm, 100µm & 125µm.Colour : Natural brownDimensional availability : In rolls of 500 mm � 1000 mm width

Insulating Paper, Laminated Sheets, insulating tapes, glass fibre, Varnishes

insulation creped kraft paper, black semiconducting crepe paper
