Insulation Heater Dealers in Mumbai

APPLICATION Low cost electric heating of plastic processing, rubber vulcanizing, Drums, Barrels & cylinders etc. CONSTRUCTION Mica insulated Heaters consist of electric resistant ribbon / round wire element covered with zinc plated MS, Brass or SS sheet with clamps. Size & terminal connections as per requirement. CONNECTION For contact accessories, cable fittings, clamping devices, fixed & braided connection, heat resistant, flexible insulation with metal braided cable housing of any convenient length, connection boxes & types according to the band heatersdimensions, power & type of power supply.     STANDARD SIZES & CAPACITIES Max. Watt density: Any convenient Wattages up to 25 W/Sq. inch. Max. Surface Temp. 300 Deg. C. Supply (Volt) – Any convenient Voltage under the pre condition that it should be technically feasible

• Type: Band Heater
• Power Source: Electric
• Heaters: gelvanised sheet
• Place of Origin: Maharashtra, India

• Type: Band Heater
• Power Source: Electric
• Heaters: gelvanised sheet
• Place of Origin: Maharashtra, India

• Brand Name: Omkar
• Operating Voltage: 240 To 480 Volts,50-60Hz
• Wattage: 50-1000W
• Material: Stainless Steel
• Heating element: Nickel Chrome wire / FeCr wire
• Working Temperature: Maximum 300 Degree C
• Protection: IP55 Cast Terminal Box
• Compatible With: All types of ESP

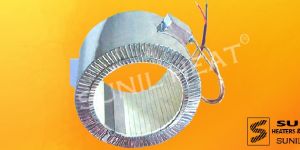

SUNIL HEAT has specifically designed and engineered insulated band ceramic heater to meet the ever increasing demand for energy (power) conservation and improving heating operation efficiently. These heaters are capable of generating higher operating temperatures up to 500 °c. WorkingPrinciple These are ceramic insulated band heaters, it’s superior designed is to save the power it is constructed with 1” thick cerawool insulating blanket from the outer surface increasing the overall diameter by 2” . It reduces power consumption up to 30% . The external surface temperature of the insulated ceramic band heater is approx 80°c while running inside surface temperature is 300 °c . First is the heaters built in insulation & second is the cerawool insulation the heat transfer in the ceramic heater is by convection and radiation. The heat dissipation from the heaters will be prevented by it’s insulation on the outer surface. This process of heat exchange will make a uniform layer of heat all over the barrel resulting into swift development of temperature. There will be quick response to temperature controller & it will have more off cycles at maintained set temperature resulting in saving of electric power. Speciality: Saving In Energy Up to 30%, 0 Uniform Heating. Reduced Preheating Time Of Machine. 0 Cool Working Atmospheres for Operator.

Similar in construction to Ceramic Flexible Mat Heaters with additional ceramic fibre insulation encased in stainless steel mesh and protected by a stainless steel backing plate.Particularly suitable for preheating pipework, vessels, and welded fabrications having either longitudinal or circumferential seams.   Robust and operate from a welding machine or Heat Treatment unit. Gives protection to the Ceramic Beads from weld splatter. Can be magnetically attached to work piece for fast application by use of two magnetic clamps.

Insulatede Ceramic Infrared Heater is a special type of heater with proper insulation on the backside with highly efficient heat insulation meterial. They have a very long life even when used regularly. The special insulation keeps the internal parts safe and higher temperatures can be achieved easily without any risk or trouble. The insulation minimizes the heat losses and reduces the temperature in the wiring area. Hence, this can be regarded as a energy saving product. These heters are available in various shapes with different power capacity up to 1000w. Salient Features We make available this type of heater in standard size of High temperature up to 900 degree centigrade Fast heat up time approx. 2 minute. Compact Size Can be installed easily Application: Thermoforming PVC paste coatings on fabric Powder coating Paint Baking Tenmpering glass Soldering Printed Circuit Boards
