Iresco Electricals Pvt. Ltd. Chembur, Mumbai, Maharashtra

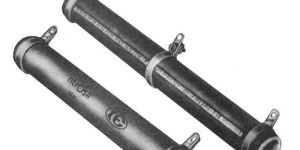

Silicone Cement Coated Tabular Resistors from the most compact and reliable type of unit possible for rating from 10 Watt to 500 Watt. They are mechanically robust, constant in Ohmic Value and withstand the most severe conditions of humidity.   Construction : Former : High Quality Ceramic Former, impervious to Moisture penetration and exceptional ability to withstand thermal shock.   Resistance Element :   High Quality iron free nickel chromium and cooper nickel wires are space wound on formers and the ends are silver brazed to the terminals.   Silicon Coating :   The Composition and method of application of the Silicon cement coating, exclusive developed and employed, is the real secret behind the outstanding performance of climatic conditions.

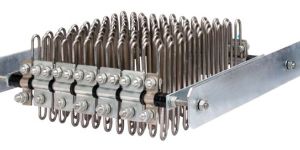

eatures:   The design of wire and plate grid, lends itself to various advantages over conventional cast iron grids and standard wire wound resistor assemblies. In the assembly design breakable parts are excluded, resulting in robust construction. In the wire grid assemblies, the unique terminal arrangement, facilities easy replacement of individuals grid.   The assembly can tailor designed and is available in stack and panel mounting versions. This is ideal for compact design of special purpose control panels. The panel mounting versions has an added advantages of saving in interconnection and wiring.   Material : Standard-stainless steel, other alloys request.   Applications : Load Banks, Rotor Starters, Crane Controllers, Motor starting and braking resistors.

STANDARD CONSTRUCTION High grade ceramic former.Copper nickel and Nickel chromium alloy wires and tapes used for winding.Self lubricating alloyed silver contact adjusted for optimum contact pressure.Creepage proof design.High grade silicon cement insulation.   CUSTOM VARIATIONSGraded and/or tapped windings.Gang assemblies up to four units.Special shaft lengths.Off positions at either end of winding.Knobs, dials and locking arrangement

A neutral Earthing resistor restricts the flow of current during an earth fault on an AC distribution system. It is connected between the neural point of a transformaer or generator and earth. Although a neutral earthing resistor will probably be active for just a few seconds during its operational life, it musc offer dependable protection at all time in case of fault. Application can be found in power distribution, mining and industrial installations, indoors and outdoors. Iresco neutral earthing resistors are designed to cope with the most climatic conditions and saliferous atmospheres. These resistors offer distict advantages of durability and reliability. They meet IEE Standard 32-1972.

Standard Construction : High thermal Capacity grooved ceramic former, Open wire winding. Self locking robust terminals Phosphor bronze adjustable brands. Steel mounting brackets for panel mounting   Standard Construction :   The Grid Resistance consists of helix of an edge wound resistance strip mounted on porcelain insulators which are located on a steel support acting also as mounting.   Maximum surface area of resistance material is exposed to the cooling air to give high thermal capacity and excellent ventilation. This enables ratings to be considerably increased where the loading is intermittent and of short duration.   The simplicity of design makes multiple assemblies into a bank possible.

Opportunities with BV   Products and Technology from BV backed by the trust and credential IRESCO enjoys in Indian Industries would provide the perfect combination for the business of cold plates, LBB and cliplams.   Cold plate used by BHEL Qty expected - 900 nos.

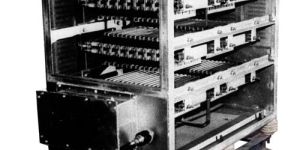

Discharge Test : Periodical discharge test on station batteries is a mandatory requirement for users. These tests ensure reliability, better service and enhance life performance of the battery system. Battery manufacturers specify Yearly / Half Yearly / Quarterly Charge / Discharge cycle tests.   Advantages : Discharge cycle tests help the users to : Check initial battery performance against manufacturers specifications. Avoid deterioration of battery system due to early detection of defective cells. Guarantee smooth operation of back up system during emergencies. Improve overall health and life of battery system.   Discharge Resistor : Our unit is designed to perform periodic discharge tests on station batteries. The resistor unit is a robust assembly consisting of Copper-Nickel Alloy wire grid elements, supported on S.S. tie rods, insulated from each other and the enclosure with Micanite tubes, washes and ceramic formers. The unique design of elements allows rapid, natural cooling of resistor bank. Castors are provided for easy mobility.   Constant Current and Rate of Discharge : The resistor bank has adequate trimming facility (coarse and fine) to maintain a constant current against falling voltage during discharge operation. D.C. contractors / Circuit breakers or knife edge sitches are used for switching depending on clients preference. The Rate of Discharge can be accurately controlled and monitored in this system which is a distinct advantage over other conventional methods of Discharge.   Our Clients for Discharge units : Tata Electric Company, Thermal Power Plant I. Mumbai. Nuclear Power Corporation.(KAPP). Kakrapara. Standard Batteries Lts. Testing Div. Kanjur, Mumbai. I.P.C.L Nagothane. Chabbi Electrical P.Ltd., Mulund, Mumbai.
