JAYANTILAL BROS Mandvi, Mumbai, Maharashtra

Application : Vehicles and automobile industries.

Pressure Type : Absolute Pressure

Connection Type : NPT

Connection Size : 1/4 inch

Brand Name : Sharp

Pressure Range : 25 Bar

Display Type : Analog

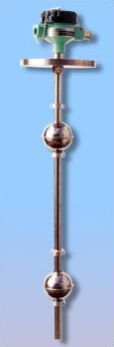

Model No.: JB/TMMLS/412Technical Specifications:FEATURES* Operation without power supply* Reed switches separated from process* Wetted parts stainless steel or plastic* Up to 5 switch points* Various process connections* Explosion-proof models APPLICATIONS* Liquids with min. 0.7 kg/dm3 density* Multi-point level switch in closed tanks * Chemicals with dense vapour or gas layer above the surface* Foaming liquids SPECIFICATIONSSwitch Rating : 250 V AC, 3A / reed relay, max. 9A Ambient Temperature: -20 °C to 95°C Medium Temperature: -20 °C to 150°C Pressure: max. 25 bar Process connection: 1", 2" or flanges Protection: IP 65 Approvals: II 2 G EEx d IIC T3...T6 (TÜV)

Model No.: JB/TMMLS/411Suitable for automatic operation of pumps gives change over contact at predetermined level step less adjustment of switching point entire range without interrupting to process. Switching contact arthritically sealed in glass hence safe and totally protecting them from surroundings of wetted parts : SS 304/S.S.316/PP/PVC Casing : Weather prorr/Flame proff

Model No.: JB/TMLI/410 Suitable for continous level indicaton of horizontal, underground tank, containing very hazardous & corrosive liquid in nature. Material of wetted part C.S./S.S..304/S.S.316/PP/PVC Materail of float C.S./S.S..304/S.S.316/PP/PVC Teflon Nylon Range 0-4 metters Pressure rating 20 kg/cm2 Temp rating 350° C for teflon or 60° C for PP

Model No.: JB/TLI/409 Tubular Level gauge for visual liquid level observation is very common in process industry. It is a simple and reliable device for direct reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of tank. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local liquid indication. Technical Details : New Bolted Gland with teflon packing ensures positive leaktightnes for full vacuum as well as 10kg/cm² pressure service Sturdy Protection : Glass tube is protected by box section made out of two M.S.channels Beam strength of the guard is so good that even if a man stands on the indicator supported at two ends, the tube remains intact. Light Weight : • 75% less in weight compared to Reflex and Transparent liquid level indicators. • Extraordinary strength but less bulky Excellent Visibility : • 16 /19 / 25 mm O.D Borosilicate glass gives excellent visibility. • Surface tension effects are eliminated. Test Pressure:• Full vacuum and/or 10kg/cm² compressed Air.

Pressure Range : 1100 Bar

Display Type : Analog

Model No.: JB/SMTLG/408 Tubular level gauge directly indicates liquid level in almospheric or pressurised tanks. It is a simple and reliable device mounted parallel along the side of tank. Material of Wetted part C.S./S.S..304/S.S.316/PP/PVC/Rubber Teflon Linned Glass Tube Heavy wall borosilicate glass 19mm Pressure rating 10kg/CM Range 0-3 metre Scale M/C engravd on backelite sheet graduated in cm Features Isolation valves of C.S./S.S..304/PP

  Model No.: JB/SMMLS/407 Side Mounted Magnetic Level Switches Mounted on side of nozzle of the tanks, float position changes with the level which in turns with the help of magnetic coupling changes the switch contacts. Used for : Automatic pump control High & low level signals Safety interlock circuits Available Material of wetted parts SS304/316/PP/Teflon linned, Weather proof/Flame proff enclosures.

Model No.: JB/SMMLI/406Simple magnetic principle used to get unique, absolutely safe and most reliable level indicator for dangerous liquids even under high pressures. APPLICATIONS:• Corrosive acids - oleum, H2SO4 • HNO3, Acetic.• Solvents - benzene , toluene, alcohols, CS2.• Liq. Gases - LPG, NH3, Chlorine • Propylene, Butadiene.• Veg. Oils, Fuel Oils, Lubricants, Water • Poisonous / toxic liquids, DMA, TEA, PCL3, SO3

Model No.: JB/RLG/405Suitable for high temp & press application & corrosive, colourless liquid under critical conditions. Liquid chamber C.S./S.S..304/S.S.316 Cover plate C.S/M/S/ End fittings CS/S.S.304/S.S.316 Nut bolts Alloy Steel Glass Toughned Borosilicate Packing Neoprene/Caf/Teflon Valve body S.S. 304/ S.S.316 Press rating 75kg/cm Temp 300° C Range 0-3 metre.

GENERAL INFORMATIONEZ/EX switches are housed in pressed steel powder coated enclosure and are recommended for panel mounting or indoor service.The repeat accuracy is better than ± 1.5% FSR. A 3/8" cable entry is provided for cables and a terminal strip suitable for wired ends is provided inside the enclosure. Pressure port is ¼" BSPF standard. PRODUCT FEATURES• Compact• SS316 & Teflon as standard wetted parts.• Electrical rating : 5A, 250 VAC ; 0.2 A, 250 VDC (res.)• Pressure port : ¼" BSP(F)

OXYGEN GAS WELDING WELDER REGULATOR PRESSURE GAUGEOur oxygen regulator easily replaces the worn out regulator in your welding kit! An ideal item to have on hand for any welder, the oxygen regulator displays accurate pressure and includes 2" diameter ...

Application : Testing and Calibration

Feature : Mirrored Scale Dial and Knife Edge Pointer

Application : Testing and Calibration

Feature : Mirrored Scale Dial and Knife Edge Pointer

  Infrared Thermometer measure the surface temperature of an object. It's optics sense emitted, reflacted and transmitted energy, which is collected & focused on a detector. It's electronics translate information into a temperature reading which is displayed on the unit. We offer RAYTEK.usa, OPTEX & GRILLO.japan, make portable handheld type, mounting type & specialised sensors for online temperature measurement. IR Thermometers are used to measure temperature from -30ºC to 3000ºC.

Application : Industrial

Color : black

Type : Broaching

Material : Mild Steel

Model No.: JB/IITUM/304Inclined Manometers utilise expanded scales for unusual sensitivity for fast, easy reading of low pressure. draft of small differential pressure. They are available in simple standard Models as well as extreme precision inclined Manometer.Range: 5-1500mm WC/HGleast count: 0.1,0.25, & 0.5mm WC/Hg depending upon ranges.

Application : Chemical and Petrochemical, Plastic and Paper Pneumatic control system, Air conditioning

Application : Chemical and Petrochemical, Plastic and Paper Pneumatic control system, Air conditioning

Model no: GLASS TUBE ROTAMETER (SERIES-JB-GTR-202)Connection : Flanged, Threaded, Nozzle at Top - Bottom or Rear with or without control valve in all wetted parts S.S. 304, 316, P.P., PVC. etc.Max. Temp. : Upto 150°C and Max press. upto 10Kg/CM-2Accuracy ± 1% to ± 1.5% of F.S.RFloats : S.S. 304, 316, P.P., PVC. etc.Application : As per your requirements, Unit in terms of LPM, LPH, NM3/Hr., CFM, C.C./Min., ML/Min for Air or any Gas, Water or any liquid.

macnaughtdm100 flow meter dm150 flow meter plus filterthe dm100 has been designed to measure diesel, kerosene and petrol, and is made from corrosion resistant aluminium with easy to read mechanical register.features• oval gear design • low pressure drop allows for gravity and pump (in-line) applications • register cap can be easily removed and rotated to every 90° orientation for display reading • supplied with integrated mesh strainer • available in litre, us gal, uk gal calibration • 5 year warranty • 10 year parts availabilityspecifications• wetted components:aluminium, zinc plated carbon steel, pei resin, viton • accuracy: ±1% of reading • flow range: 3 - 80 l/min (0.8 - 21 us gal/min) • maximum pressure:1000 kpa (145 psi, 10 bar) • register – totaliser : 0 – 999,999 l (gal) • register – reset: 0 – 999.9 l (gal) • max. temp: 80°c (176° f) • inlet thread: 1” bspt, 1” bsppl(g) or 1” npt female • outlet thread: 1” bspt, 1” bsppl(g) or 1” npt female • weight: 1.2 kg (2.6 lbs)accessories• df connector kit – dm100 to ge12/24 diesel pumps • ha1s filter • dh connector kit - hp pump • dg connector kit - gp pump • dv connector kit - pvr/rb pumps

Country of Origin : India

Operating Type : Manual

Driven Type : Electric

Model no: FLOW SWITCH (SERIES-JB-FS-204) • Wetted Part: SS304, SS316,TEFLON• Operating Temp: -30°C~150°C• Contact Rating: 40W / 230VAC SPDT• Mounting Screw : 1" NPT • Enclosure Protection: IP65, Ex-Proof • Suitable Pipe: 1"~3"• Operating Pressure: 355 PSI• Detection: reversible

Model No.: JB/FBVSTLI/404 Suitable for measurement of liquid level in over ground/over head storage tanks.Utilise: Suitable for reacting liquids like HCL, HNO3, NH4OH and other liquid were absolute vapour tightness is required. Float C.S./S.S..304/S.S.316/PP/PVC/Teflon lined Housing Alluminium / PP etc.. Wire housing C.S./S.S..304/S.S.316/PP/PVC/Teflon Nylon Pulley Alluminium / PP/ Nylon/ S.S. 316
