Jupiter Electronics Vikhroli, Mumbai, Maharashtra

HygroClip 2 Probes for humidity and temperature measurement Wireless frequency: 433.92 or 915 MHz (USA) for optimized communication Highest possible measuring accuracy: ±0.8 %RH and 0.1 °C Outstanding repeatability Battery life up to 6 years Large storage capacity of up to 500,000 measured values Transmission distance up to 300 meters With USB or Ethernet receiver

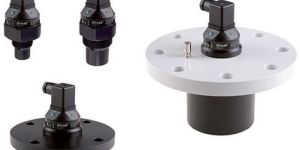

Ultrasonic level meters ULM® is self contained device that includes electroacoustics transducer and electronic module. The level meter ULM transmits series of ultrasonic pulses which propagates towards the liquid surface. Reflected acoustic wave is received back in the ULM transducer and processed in electronic module. The distance calculations are based on time of flight of the acoustic wave to the level and back.

Feature : Measuring range from 0.25 m to 2 m, plastic PVDF transmitter and plastic body (PP+HDPE), process connection with thread G 1″.

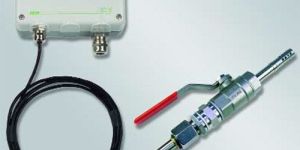

E+E Transmitter Series EE36 are specially designed for the measurement of water content in oil. EE36 is ideal for online monitoring of moisture in lubrication or insulation oil, which is very important for the long-term performance and adaptive maintenance of plant and machinery.

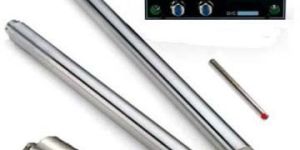

The CTS-420 Series is a 2-wire current loop position transmitter system especially suited to measurements in process industries. Each system consists of either an HCI Series LVDT linear position sensor or an R36AS RVDT rotary position sensor, along with an electronics module which provides a 4-20mA current loop output.

Features : 4-20mA 2-wire current loop operation and Zero and span adjustable

The embedded microprocessor generates a PWM-shaped sine wave and handles all calibration functions. It also controls the demodulation, filtration and synchronization of the LVDT or RVDT transducer signal. All settings are stored in non-volatile memory for restoration on power up. Zero, Gain and Phase adjustments are accomplished via the use of splash-proof front panel pushbuttons and digital voltage dividers. Intended for the most demanding industrial applications, the ATA 2001 is CE certified, and has been rigorously tested to the highest industrial standards for EMI, RFI and ESD.

P700 series pressure transducers are designed for high reliability and stability. The all welded construction incorporates a double cantilever beam with bonded foil strain gauges. Coupling to the pressure diaphragm via a force rod, gives excellent thermal isolation from the fluid or gas being measured. High overload protection is an integral part of the design. These units are capable of sensing extremely small changes of applied pressure and are relatively insensitive to vibration, altitude and shock.

Feature : Low and High Level Output , All Welded Construction

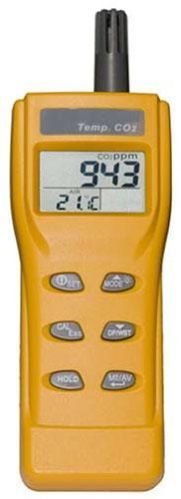

he large illuminated display presents the 2 values simultaneously. Built-in data output (RS232) makes it simple to log data for longer time. Audible alarm is included . MaxMin Average as well as TWA and STEL measurements are also available. The carbon dioxide sensor’s gold-plated infra-red waveguide and diffusion membrane filter provides you great reliability, accuracy and long term stability.

Feature : Audible alarm , Easy to calibrate

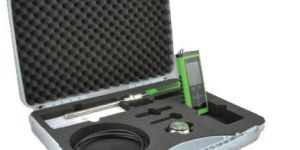

The moisture in oil hand-held OILPORT 30 measures water activity aw, temperature T and calculates the water content x (ppm) in different oils.

The compact design and rugged stainless steel housing allow a space-saving installation in the most demanding applications. The EE364 measures water activity (aw), oil temperature (t) and calculates the absolute water content (x). The measured values are available on two 4-20mA outputs and one digital output with MODBUS RTU interface.

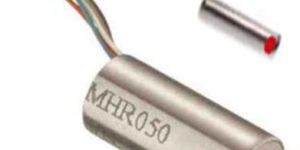

The legendary MHR Series LVDTs provide precision measurements in space restrictive applications. With a diameter of just 38 inch [9.5mm], and an extremely lightweight core, the MHR Series is ideal for applications where excessive core weight could influence the motion of the measurand; with less inertia, accurate measurements at higher displacement speeds are easier to achieve. The lightweight core also reduces mechanical stresses and helps preserve the structural integrity of the core actuation assembly.

The Series 104 Differential Pressure Switch is a low-cost easy to use switch for very low pressure applications. The switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for 2A @ 250V and can be set as low as 0.08” w.c. (20 Pa)

Specialities : High Quality, Low-Cost and Visual Set Point Indication

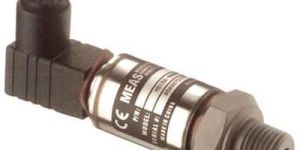

The M5100 series pressure transducers from the Microfused™ line of MEAS, set a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.

Feature : Heavy Industrial CE Approval , 100 V/m EMI Protection

Process Sensor’s new HHRF handheld moisture sensor is a pure dielectric RF moisture gauge, using enhanced phase lock referencing on the generated frequency to measure shift in resonant frequency due solely to changes in moisture throughout the sampling volume. The measurement is not influenced by ionic strength

Relative humidity and temperature measurement Dew Point and other psychrometric calculations Outstanding accuracy and repeatability 2,000 data point memory Auto-diagnostics and automatic correction Highest-possible measuring accuracy

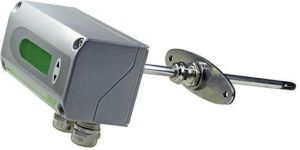

The EE75 series air velocity transmitters were developed to obtain accurate measuring results over a wide range of velocities and temperatures.

Application : monitoring incoming and outgoing air (energy management) in HVAC applications

Feature : low dependence of angle of inflow , probe diameter 8mm (0.3”)

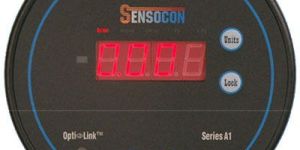

The series A1 is a patent pending microprocessor based digital pressure gauge for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges.

Features : Mounts in Industry Standard Holes , Accuracy 1% (better available) and 5 selectable engineering units

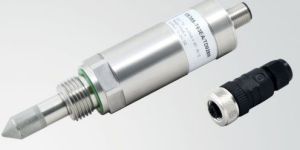

The compact EE355 Dew Point Transmitter with a measuring range down to -60 °C Td is ideal for applications in compressed air systems, plastic dryers and industrial drying processes. An integrated auto-calibration procedure permits a measurement accuracy of

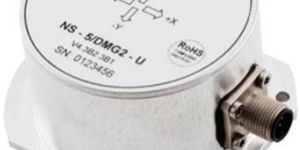

The D-series of conductive inclinometers offers modern SMD- technology in an environmentally protected and robust aluminium housing. The inclinometer achieves high accuracy over a wide temperature range. The fast microcontroller works with a linearization and temperature compensation routines.This full calibrated inclinometer is available with digital output RS 232 and analogue voltage output 0.5 up to 4.5 V or current output 4…20mA or PWM output or switch output signals. Futhermore is inclinometer is available with an CANopen interface.

Feature : High Accuracy,Ce Approved

Wide temperature range: -40°C to 1030°C Response time: 25 ms Optical Resolution 15:1 Green LED alarm indication, aiming support, self-diagnostic Ambient temperature rating up to 80°C without cooling Scalable analog output: 0-10 V or 0-5 V + alarm output or digital output USB programming interface, direct serial 9.6 kBaud interface Wide power range 5-7, 12-28 V DC

Digital measurement value processing incl. temperature compensaton Internal functon control with integrated hardware watchdog Data measured values sensor controller, therefore simple exchange uncalibrated calibrated High accuracy, selectivity and reliability Low zero point drif Long sensor life time Hardware & software according to SIL2 compliant development process Easy maintenance and calibration by exchange of the sensor unit or by comfortable on-site calibration 4 – 20 mA analog output with selectable signal output for special mode, fault etc. Reverse polarity protected, overload and short-circuit proof Housing for integration of the sensor unit

The AngleStar® DP-45 Digital Protractor is a handheld, portable angle measurement instrument. Consisting of a rugged electronic sensor, custom circuitry and liquid crystal display, this easy-to-use device provides instant digital display of the angle, eliminating the interpretation errors associated with bubble levels and mechanical protractors.

Features : Easy to read LCD digital display , 100 hour battery life

Applications : Driveshaft maintenance , Antenna position

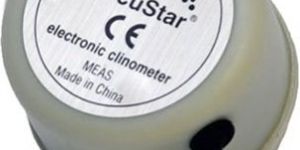

The AccuStar® Electronic Clinometer is an extremely accurate angle measurement device that produces an output signal which corresponds directly to the magnitude and direction of angular displacement. Measuring just 2 inches in diameter, this compact and affordable sensor is ideal where high accuracy measurements are required in space restrictive applications.

Feature : ±60o total sensing range , Rugged plastic housing

The R30A RVDT (Rotary Variable Differential Transformer) is an angular position sensor that incorporates a proprietary non-contact design which dramatically improves long term reliability when compared to other traditional rotary devices such as synchros, resolvers and potentiometers. This unique design eliminates assemblies that degrade over time such as slip rings, rotor windings, contact brushes and wipers, without sacrificing accuracy.

Feature : High accuracy , Infinite resolution
