Jwala Techno Engineering Private Limited Palghar, Thane, Maharashtra

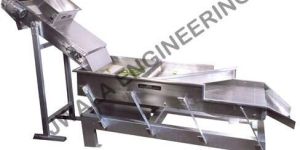

Application : Used in green peas processing plant for performing the following functions: Separation of whole pods from the pea grains. Separation of small size of pea grains not suitable for further processing. Separation of small peels from the pea grains.

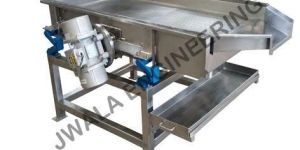

Application : Suitable for forward movement of the product due to vibration and simultaneously performing functions like removing the excess water, grading, separating waste from the products.

Application : Suitable for washing the various vegetables like tomato, green peas, green beans, potato etc.

Capacity : As specified

Automation Grade : Automatic

Material : Stainless Steel

Warranty : 1 yr

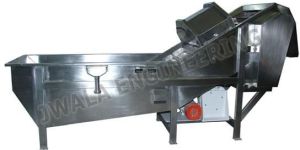

Vegetable washer processing machine is dumped into the washer where an air blower attached to the unit will agitate it and subsequently wash it by a strong water spray. The product will be subject to four stages of washing. Soaking into the water. Agitation in the water. Subjecting to strong fresh water spray. Draining after washing.

Type : Continuous Vacuum Pan

Material : Iron, Metal, Stainless Steel

Application : Dairy Industries, Food Processing Plant, Pharmaceutical Industries

Weight : 100-1000kg, 1000-2000kg, 2000-3000kg

Color : Brown, Grey, Light White

Voltage : 110V, 220V, 380V, 440V

Condition : New, Used

Automatic Grade : Automatic, Semi Automatic

Power Source : Electric

Warranty : 1 Year, 2 Yrs

Application : Suitable for vacuum concentration of tomato pulp/fruit pulp/milk etc.

Process : The product to be concentrated is fed in the Vacuum Pan. The pan will be fitted with a slow speed stirrer. After concentration the product can be discharged from the bottom with the help of a pump.

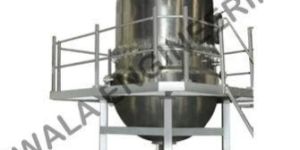

The product to be concentrated is fed in the vacuum evaporator machine. The pan will be fitted with a slow speed stirrer. The stirrer consists of spring loaded Teflon scrappers ensuring that the scrapers are always in contact with the surface of the vacuum evaporator machine and hence eliminating chance of product charring. Jwala engineers are manufacturers, suppliers and exporters of vacuum evaporator process in Mumbai India. After concentration the product can be discharged from the bottom with the help of a pump.   Vacuum Evaporator Process The main acuum evaporator will be made in 2 halves hemispherical in shape Bottom half provided with steam jacket, with adequate stiffeners Stirrer with spring loaded Teflon scrapers Vapor duct MS condenser (direct water mixing type) Necessary steam fittings & valves Working platform in MS. Vacuum pump Water pump (2 nos.) for connecting the condenser and the cooling tower. Suitable pipe lines, fittings & valves to connect this pump with the vacuum pan..

Feature : The body is modular in structure the bottom section, top section and central section/s. Return side made of UHMWPE strips at adequate places.Geared motor, square shaft, sprockets, bearings and suitable drive arrangement.

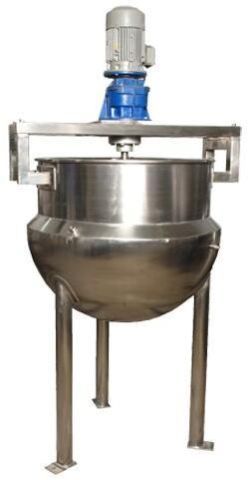

Application : Steam jacketed kettle suitable for heating/concentration of the product/liquid.

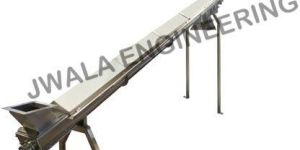

Application : Suitable for transferring product from one point to another with the help of a screw. Generally used for products in powder form or when the product is very difficult to handle like waste, sticky products etc.

Feature : Trough in which the screw rotates made with SS sheet/pipe. Supports for the shaft after every few meters length. SS stand for mounting the conveyor body. Drive arrangement consisting of geared motor, bearings etc.

Material : SS

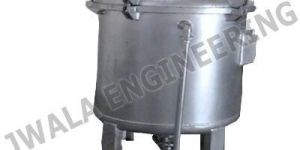

Retort Packaging Machine Retort packaging machine suitable for sterilizing of filled and sealed cans Vertical cylindrical structure Provided with steam inlet, water inlet and outlet Fitted with Pressure gauge, air vent, temperature indicator, safety valve etc

Application : Suitable for crushing of fruits and vegetables

Suitable for extracting the pulper and separating the seeds and skin from fruits and vegetables like mango, tomato, guava, papaya, tamarind etc. Pulper The fruits and vegetables are fed in the coarse pulper machine chamber where due to blades and brushes the fruit is pressed against the sieve. The extracted pulp passes through the perforations in the sieve and stone and skin are pushed forward and discharged from the other end. The pulper is then passed through the fine sieve to refine the pulp and remove the fine skin. Our company manufacturers, suppliers and exporters of pulper in Mumbai India to all over the world with international standards. The refined pulp can be collected and processed further. Pulper Body frame made of SS square pipes. The coarse pulping and fine pulping unit are mounted one below the other. The coarse pulping unit consists of a coarse sieve and blades and brushes. The fine pulping unit consists of fine sieve and brushes. Special openable design of sieve is provided for easy cleaning and maintenance of the machine. S.S. 304 feed and discharge hopper. S.S. 304 collection hopper. S.S. 304 covers. Appropriate drive system consisting of motor, pulleys, V belts, bearings etc.

The vegetables are to be fed uniformly in the feed hopper of the machine. The peeling takes place due to contact of the vegetables with the rollers. Potato peeler machine is covered with abrasive material for effective peeling. The vegetables move forward at a controlled pace due to the screw. The peeling time can be varied by changing the speed of rotation of the screw through the control panel. Potato peeler machine is sprayed from the top during the forward movement of the vegetables. We are manufacturers, suppliers and exporters of potato peeler machine in Mumbai India to all over the world. After peeling the vegetables are discharged from the other end through the discharge hopper.   Potato Peeler Machine Body made of SS square pipes Series of 8 nos. abrasive rollers Screw made completely in SS Drive for the screw is fitted with VFD to control the peeling time Water spray arrangement from the top Suitable drive mechanism with motor and series of timing pulleys connected to the rollers Feed hopper & discharge hopper made in SS Drain hopper, side and top cover etc. made in SS SS Control Panel for operation of the machine Pipeline for taking the waste water out of the machine

Material : Alloy Metal, Metal, Plastic, Stainless Steel

Application : Potato Peeling

Application : Home, Kitchen, Restaurant

Weight : 100 Kg, 120KG, 150kg, 200kg

Color : Black, Green, Orange, Silver

Feature : Easy To Use, High Efficiency, Professional

Automatic Grade : Automatic, Manual

Warranty : 1 Year, 2 Year

Feature : Plastic modular belt. The body is modular in structure the bottom section, top section and central section/s. Return side made of UHMWPE strips at adequate places.Geared motor, square shaft, sprockets, bearings and suitable drive arrangement.

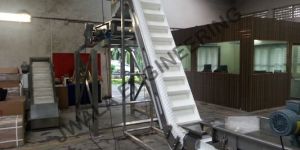

The product is fed into the feed hopper of the elevator. It passes on to plastic modular conveyor beltmanufacturers, suppliers and exporters in Mumbai India to all over the world. The belt moves along the carryway and discharges the product to the next machine at desired height.   INCLUSIONS: Plastic modular belt from internationally reputed supplier Body frame made of SS 304 square pipes and sheets. The sheets are laser cut for precise shape and to provide correct direction of the belt. The square pipes are welded to the sheets providing a tubular structure to the machine for easy cleaning The body is modular in structure the bottom section, top section and central section/s Carryway for plastic modular conveyor belt made of UHMWPE supports mounted on precisely cut SS strips. The UHMWPE supports fit directly on to the cut strips. The carryway consists of UHMWPE strips, rollers, shoes etc. to guide the belt along the desired path Return side made of UHMWPE strips at adequate places Geared motor, square shaft, sprockets, bearings and suitable drive arrangement
