Kirantest & Measures Private Limited LBS Marg, Mumbai, Maharashtra

Type : Non-Destructive

Resolution : 0.1 micron

Accuracy : +2.5 of reading

Power Supply : 230V / 50Hz

   Model - Kiran/UTG - 08   This Thickness Meter is small in size, light in weight, easy to carry. Although it is an advanced model, it is convenient to use and operate.   FEATURES The high power of emission and broad band of receiving sensitivity makes it easy to measure the rough surface, even on cast iron. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminium, Red Copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray Cast Iron, Nodular Cast Iron etc.Automatic power off to conserve power.   APPLICATION Used for measuring thickness and corrosion of Pressure Vessels, Chemical Equipment, Boilers, Oil Storage, Tanks, etc., in industries of Petroleum, Ship building, Power Station, and Machine Manufacturing, etc. ..

Display : 4 digits, 10 mm LCD

Input : RTD

      pH is a measure of how acidic or alkaline solution is in pure water at room temperature.About our pH Meter: Table Top Digital pH Meter, with its state-of-the art design, is specially targeted for routine pH measurement applications. Measurement of pH of any aqueous solution gives the degree of acidity or alkalinity of the mathematically pH is defined as the negative logarithm of the Hydrogen iron concentration and pH is measured on scale of 0 to 14 units   Application Purification of drinking water Manufacturing of sugar, pharmaceuticals.  Effluent treatment plants. Dyes and chemicals. Biotechnology Electroplating.

Range : 0 to 14pH

Accuracy : + 0.05pH

Table Top Digital pH Meter, with its state-of-the art design, is specially targeted for routine pH measurement applications. Measurement of pH of any aqueous solution gives the degree of acidity or alkalinity of the mathematically pH is defined as the negative logarithm of the Hydrogen iron concentration and pH is measured on scale of 0 to 14 units

Weight : Apporox.1 Kg.

Digital Conductivity meter is precise and rugged instrument designed for most accurate measurement of conductance. Generally the measurement of conductance is not any harder than measuring resistance in fact conductance is the inverse of the resistance. However most ohmmeters operate from direct voltage and current if were used in a liquid it would invariably give raise some sort of electrolysis that would distort the measurement. To counter the electrolysis the meter must operate with on A.C. voltage or current of sufficient high frequency.A probe for measuring in liquid is made readily from a print header. Two header (preferably gold plated) from an excellent probe with fixed distance between the electrodes. The link between the electodes and connecting wires should be made waterproof. This probe is connecting wires should be made waterproof. This probe is called cell. This instrument is calibrated for cell constant one.Conductance S = Siemens = 1/2 international unit of conductance.The applications of conductivity meter in textile manufacturing water works department, laboratoriesa and educational institutions.

 Electroplating (Switch Mode Power Supply)   Specially designed for the precision plating. The main advantage of this rectifier is greater efficiency because the switching transistor dissipates little power when it is outside of its active region. Which utilize filtered circuits capable of continuously producing minimum AC ripple. This filleted current output is essential for many plating baths. Constant Voltage & Constant CurrentLight weight, ABS body, Ripple - 1 %, Protection for overload, short circuits, overvoltage. Available Range: 10V / 10-Amps, 25-Amps, 50-Amps, 100-Amps. Power: 230V Single Pha

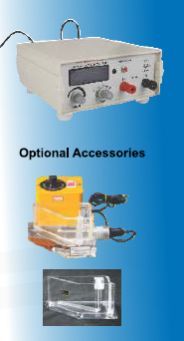

The Hull cell is a type of test cell used to qualitatively check the condition of an electroplating bath; It allows for optimization for current density range, optimization of additive concentration, recognition of impurity effects and indication of macro-throwing power capability. The Hull cell replicates the plating bath on a lab scale. It is filled with a sample of the plating solution, an appropriate anode which is connected to a rectifier the "work" is replaced with a hull cell test panel that will be plated to show the "health" of the bath.The Hull cell is a trapezoidal container that holds 267 ml of solution. This shape allows one to place the test panel on an angle to the anode. As a result, the deposit is plated at different current densities which can be measured with a hull cell ruler. The solution volume allows for a quantitative optimization of additive concentration: 1 gram addition to 267 ml is equivalentto 0.50z/gal in the plating tank. Kiran Test & Measures Pvt. Ltd., designed SMPS Based CVCC Type Rectifiers for Hull Cell Testing are which utilize filtered circuits capable of continuously producing minimum AC ripple. This filtered current output is essential for testing many plating baths. Kiran Rectifiers are strongly recommended for Hull Cell test because results are misleading when single phase unfiltered current is used. SMPS Based Ripple less than 1 %  Constant Voltage Constant Current Timer with buzzer Digital Volt /Amp. Meter ABS Body light weight

the apparatus for testing consists of a clased acrylic testing chamber,whare a salted solution (mainly, asolution of sodium chloride) is sprayed by means of a nozzle.this produces a corroding environment in the chamber and thus, parts in it areattacked under this severe corroding atmosphere.   chamber size: 1) (l) 910mm x (w) 1) (l) 910mm x (w) 510mm x (h) 310mm 2) (l) 450mm x (w) 250mm x (h)250mm • chamber construction material : acrylic • hood in acrylic • solution reservior tank (capacity-30ltr) • control panel (temp. Indicator/controller, time totalizer) • power requirement: 230vac + 10%, 50hz. • extra accessories : air compressor

  Modek -Ke-07 FEATURES Kiran test 7 Measures Pvt.Ltd.,manufacturing various types of test chambers.These entire chambers are the development of In-house Research & Development for the ten years.kiran can provide standerdized and cost effective systems to meet national and international test specification for various application Salt spray test is a standardized test method used to check corrosion resistance of coated samples. Coatings provide corrosion resistance to metallic parts made of steel, zamak or brass. Since coatings can provide a high corrosion resistance through the intended life of the part in use, it is necessary to check corrosion resistance by other means. Salt spray test is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends of the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion.There is no correlation between the duration in salt spray test and the expected life of a coating, since corrosion is a very complicated process and can be influenced by many external factors. Nevertheless, salt spray test is widely used in the industrial sector for the evaluation of corrosion resistance of finished surfaces or parts.  We designed Salt Spray Apparatus as per ASTM B 117 AND ISO 9227.These standards describe the necessary information to carry out this test: We maintained all parameters as per above standards • Chamber Inner Dimension: (L) 830mm x (W) 700mm x (H) 700mm • Humidifying Tower • Fog Collector • Valume:400 Liters • Solution reservior tank • Chambrs Construction Material: on corrodible high temperture resistant glass • Control Panel (Humidity-temp. Indicator/Controller,pH indicator,Time totalizer,control switches) • Hood in acrylic • Salt Solution auto dozing systems • Power Requirement: 230VAC + 10% 50Hz.

Material loading capacity: 0.5 to 1.5 kg, 3 to 5 kg & 7 to 10 kg Power: 12 V /5 Amps. DC Motor Speed: Adjustable 3 to 12 RPM 1)The Barrel is made of PP &Acrylic material, and thus is acid and alkali resistant. 2)Appropriate materials are selected for individual design according to customers requirements of the shape, size, type of the plated pieces, as well as the temperature and the chemical composition of the plating chemicals. 3) Good water permeability. Bore diameter and bore pitch of the drum can be customized as required. 4) It provides easy loading and unloading operation of work pieces with no inserting and clamping work pieces at the door crack ofthe drum. 5) The product features elaborate structure design and precise fabrication, failure- free and long service time.

Micro Controller Based,Auto Temp. Sensing,Buzzer for Low High pH control,12 V DC output for auto dozing dump. On line pH indicator specially designed for various process control industry.

MICRO TEST is a versatile and sophisticated thickness tester which measures almost all electroplated metals on Ferrous, Non-Ferrous & non-metallic substrates. Measures multiple coating and gives individual readings. Product Features   Micro controller based 21 Stored Plating/Base Combinations Printer ouput Interface for RS232C for connection to a PC

Pressure Filtration is required in bright plating solutions to ensure brilliancy as well as smoothness of deposit. The solution is fed through suitable filtration media to ensure quality filtration. Cartridge type filtration unit's sealers magnetic drive powered by AC Knobs or PP, PVC, Non Metallic Corrosion proof maintenance free filter chamber with cartridge or pad type filter element and standard fittings. Different combinations of Cartridge size & Qtys can be offered with suitable Pump capacity based on Customers requirement and it may be not chemically compatible for certain applications in PCB process industries, for such we manufacture polypropylene filter housing suitable for cartridge filter & plate filter.

Electroplating rectifier is a kind of electronic device which changes high voltage alternate current (AC) into low voltage direct current (DC). Electroplating rectifier is a very crucial component for any industry. For different industrial applications the electroplating rectifiers are available in a range starting from 1 Volt to 1000 Volts, to suit varying industrial requirements. Today these rectifiers are being used for various electro- chemical processes like Anodizing, Hydrogenation and more. Electroplating is a technique accomplished through electro deposition process. The process involves producing a coating, mostly metallic, on a surface by the action of electric current. Electroplating rectifiers are single phase or three phase devices on the basis of their rating. Generally, 8V, 12V, 16V, 20V, 24V rectifiers are used in industries having current rating of 500Amp and above.

Input Voltage : 240 V AC + 5% in Single  Phase 240 V AC + 5% in Single Phase

Digital Electronic Timer with Flasher / Buzzer with industrial START / STOP Switches. Auto cutoff provision, selection mode for seconds / Mints / Hrs.

FEATURES     • Compact, Light Weight • Capable to Measure Thickness of Non-magnetic Coating on Magnetic Base & non- Conductive Coating on Conductive base.• Auto Substrate Recognition. • In Compliance with ISO 2178 & ISO 2360 Standard • Auto Shutdown to Save the Battery life • Wide Measuring Range & High Resolution. • Zero function     • Auto Subtrate Recognition • Auto Shutdown to Save the Battery life • Zero function

Size : 126mm x 65mm x 27 mm

Display : 4 digit 10 mm. LCD

Accuracy : ± 1 up to 100 & above ± 2

Size : 126mm x 65mm x 27 mm

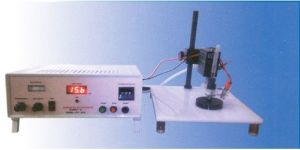

PTT-ECO (Desstructive Type) Is a compact and sophisticated thickness tester for the measurement of plating thickness on Ferrous, non-Ferrous & Non-Metal substrates. It fulfils a long standing need on the market for an reliable, accurate Economical PlatingThickness Tester for all type of Plating. There is no separate cost for each PBC Plug.

The Cross Hatch Cutter is a multi-blade cutting tool which allows an assessment to be made of the adhesion resistance of coatings to separation from substrates when a right-angled lattice pattern is cut into the coating and penetrates through to the substrate. The coating thickness determines the Cutter size used. The 1 mm Cutter is suitable for coatings under 60 microns. The 2mm Cutter is suitable for coatings over 60 microns. The hardened tool steel cutting blades are precision-ground with 6 cutting sides, so that when one cutting side becomes blunt there are a further 5 cutting sides to use. The Adhesion Test Tape has an adhesive strength of 9.5N per 25mm width and is transparent to ensure correct adhesion to the coating.
