Wire Wound Resistors
Driven Type : Battery
Power Type : AC
Voltage : 220V
Frequency : 50Hz
...moreWater Cooled Wire Wound Resistors
We provide excellent quality Water Cooled Wire Wound Resistors that operate with direct cooling without Heatsink and better power / volume ratio. Features : 70% Heat Dissipation In Water 50% Size Reduction Compare To Air Cool Low Surface Temperature Non-Inductive Type Available Mounting Arrangements Available As Per Customer Need. Water Connection As Per Customer Need Low Temperature Coefficient For Better Stability Specifications : Ohmic Range:1E To 20KE Tolerance:Std ±5% Others ±3%, 2%, 1% Surface Temperature:200ºC@40°C Ambient (Depends On Insulation Level) With Water Circular Of 15 Ltr/Min Derate to Zero:At 350º C Ambient Dielectric Voltage:Upto 6 KV Materials Used : Water Circuit:Electrolytic Copper Tube Resistance Wire:Cu-Ni / Ni-Cr. Alloy Insulation:Mica / Polyamide Film / Porecelin Coating:Silicon Varnish With Fillers Types Available : Radial Tag Screw / Nut Push Fix Spacer & Bolt
...moresilicon coated wire wound resistors
We are one of the leading manufactures of a wide range of Silicon coated Wire Wound Resistors – SRI (5W to 1000W) & Industrial and Professional Grade Available As Per JSS 50402 & IS 8909 (PART III)- 1978. It has low operating temperatures. These are manufactured by using quality raw material in our well established manufacturing unit by our well experienced staff members. Features : Spot Welded Joints For Reliability Low Temperature Coefficient Exceptional Stability And Performance Low Surface Temperature Industrial And Professional Grade Available Non-Inductive Type Available Fixed Taps And Adjustable Tags Available Custom Designed Resistor Assemblies Are Available On Request Brackets Available For Horizontal As Well As Vertical Mounting. Flame Proof Silicon Coating Available. Professional Grade Available As Per JSS 50402 & IS 8909 (PART III)-1978 Specifications : Ohmic Range: 0.1Ω to 300KΩ (Std. Resistances from E-24 Series. Other Resistances available on request) Tolerance: Standard – 5%. (1%, 2% Available On Request) Power Ratings: 5W To 1000W Temperature Coefficient: Low Value – ±50ppm 0.1Ω to 9.1Ω; Middle Value – ±50ppm 10Ω to 910Ω; High Value – ±150ppm 1K and above. Other Details : Surface Temperature: 300º C max at 40ºC Derate at Zero: At 300º C Overload: 10 times the wattage applied for 5 seconds. Operating Temperature: -55º C to 200º C Dielectric Voltage: Based on indicated creepage distance (k in table) from terminals to mounting bracket. 5mm: 1000V; 6mm: 1200V (higher on request). Materials Used : Core: Ceramic Core Terminals: Brass Terminals (SS Terminals And Brass Screw Nut Terminal On Request) Wire: Cu-Ni Or Ni-Cr Alloy Coating: Silicon Varnish with heat conductive fillers (Flame Proof Silicone varnish on request).
...moreRheostats
Our clients can avail from us high-grade Wire wound Rheostats, Hand Sliding Type, which are manufactured using optimum quality raw material and latest technology machines. Features: Power: – Designed with 150% of specified power dissipation to limit maximum surface temperature rise up to 200°C, at full power. (Direct derating to 67% of maximum allowable wattage).Also designed to withstand short time over load of 10 times the rated power for 5 seconds. Pitch: – Minimum winding pitch is maintained at 2 time wire diameter in order to avoid inter-turn short circuit due to failure of wire insulation. Maximum winding pitch is maintained at 3 times the wire diameter to ensure maximum utilization of surface area for heat dissipation. Joints: – Winding elements are spot welded to end brass clip terminals to ensure rigid & confirmed joints with very low contact resistance. Coating: – Rheostat is coated with high temperature silicone varnish to provide protection against extreme environmental conditions, mechanical damage and to further assist in heat dissipation. Contact Assembly: – Brush is made of copper-graphite for good electrical contact and self greasing properties to ensure smooth movement for maximum operation cycles. Further the brush is pig-tailed and spring loaded to ensure free movement with firm electric continuity. Slider Bar: – Nickel plated Brass slider for rust free, smooth movement and good electrical conduction. Slider bar is insulated from side bracket using a ceramic insulator bush and nylon lock bush for good electrical insulation properties. Brush Handle: – Slider brush handle is made of ceramic materials for good electric and heat insulation & longer life. Mounting Bracket: – Fabricated from M.S. sheet for firm holding and finish with powder coating for longer life. Wiring: High temperature withstanding Teflon covered insulating wires with crimped copper lugs to ensure good contact & longer life. Output Terminals: – Molded and colour-coded insulating terminals are provided for east of terminal identification. Red & black for fixed resistance and green for variable resistance terminal. Earthing Terminal:- Earthing tag with screw provided for proper earthing of rheostat frame.(Both side brackets are internally electrically connected with the help of mounting stud and doom nut)
...moreHV Impulse Resistor
Features Application:High Voltage Impulse Testing Former:Fibre Glass ‘H’ Class Resistance Wire:Ni-Cr. Low Temp Co-efficient Winding:Non-Inductive Arryton Perry for Low Inductance Inter Layer Insulation:Nomex Paper, Polyamide Film, Filler / Epoxy Casting. Coating:High Temperature Silicone Varnish With Filler / EFF also. End Flange:Aluminium With Corona Free Radius Terminal: SS Bolt / Aluminium Hooks
...moreHigh Current Low Voltage Load Resistor
We provide excellent quality Water Cooled High Current Low Voltage Load Resistor that operate with direct cooling without Heatsink and better Power / Volume ratio, 90% Heat dissipation in water.

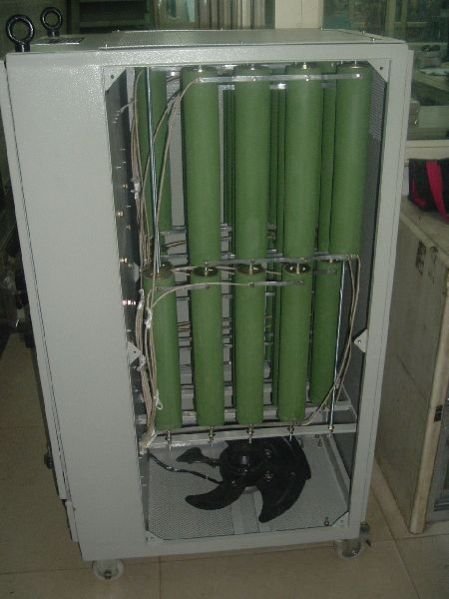

...moreELECTRICAL LOAD BANKS
5,000 - 5,000,000 Per RS
1 Piece (MOQ)

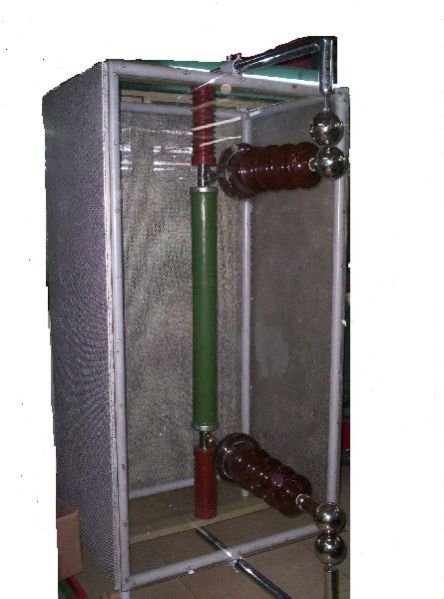

We are engaged in providing a wide range of “Resistive and Reactive Load Bank”, “Battery Discharge Resistor Unit” and “High Voltage Load Bank”. These are manufactured by using quality raw material in our well established manufacturing unit by our well experienced staff members.
Country of Origin : India
Type : Load Banks
Certification : Customer Satisfaction
Color : Generaly Siemens Gray
Feature : Easy To Install, Sturdy Construction, Superior Finish
Condition : New
Output Type : AC Single Phase, AC Three Phase, DC, Pulse
Frequency : 50hz, 60hz, 400 Hz
Automatic Grade : As per Customer requirment
Cooling System : Air Cooling, Oil Cooling, Natural Cooling
Warrenty : 1year
Production Power : As per Customer requirment
Temperature Capacity : Medium Temperature
Brand Name : KIYOSH
