Kutwel Diatools Goregaon, Mumbai, Maharashtra

The Single Point Diamond Dresser is more versatile dressing tool, which is used for turning and dressing of grinding wheel. They are made of carefully selected raw diamonds mounted in holders by means of special bonds. The dressing tool takes care of two main functions, it removes abrasive grains which have become completely worn out, and it recreates the correct geometric shape of the grinding wheel. We offer 3 grades to refinish the wheel, when the wheel becomes dull. The pores between the grains become loaded with the material ground.   The selection of the diamonds depends upon the dimension of grinding wheel, its hardness grit size, abrasive type, and individual dressing operation. We recommend the following thumb rule for selecting the size of diamond (Radius of wheel+width) x 0.004 = Carat size of diamond (1 Carat = 0.2 gm)

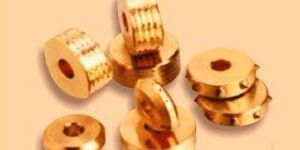

These dressers are as good as Multi Diamond tool in which the row of diamonds is fitted into the circumference of roller bodies at a regular distance apart. After one row of diamond become flat/worn, by turning the roller further new tips are used for dressing, thus ensuring clean equal dressing. A special process is used to select the needle diamonds and natural diamonds for these types of Roller Dressers. Relatively small diamonds are used. These roller dressers are sufficient to cover the whole range of wheel dressing operation.   TO GET THE MAXIMUM TOOL LIFE: Use plenty of coolant to increase the tool life. Depth of cut should not exceed more than

These types of Diamond are used where precision is most important with the production cycle. It has Radius & Facet as per the customer requirement. Mainly used in Automobile, Watch & Copper calendar rolls for Textile & Paper industries. Due to various sizes kindly enclose drawing while sending enquiries.

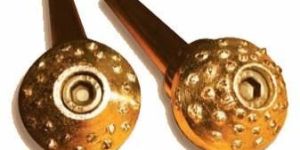

A Multi Point Diamond Dresser in which sharp natural diamonds are set in a circular rating plane. As soon as the diamonds on the indexed position are completely Adjusted on the shank for new points. Shanks for the crown are made to customer’s specifications.   APPLICATIONS: All types of large wheels where fine truing is considered important. Specially recommended for cylindrical grinders. ADVANTAGES: The diamonds can be completely used up and resetting is redundant. Since two or more diamonds come in contact with the wheel the work load on the diamonds is divided and the diamonds last longer. A large area of the wheel is dressed more efficiently in a relatively shorter time than a single point. As several points are in use simultaneously the feed may be safely increased. Finer finish is obtained on the wheel due to the crystal shape of the diamonds employed. Can be used for side dressing.   SIZES: MIC-24 with 24 Diamonds for wheel size up to 600 mm diameter wheel. MIC-36 with 36 Diamonds for wheel size above 600 mm diameter wheel.

Multi Point Diamond Dressers consists of number of natural diamonds of a good crystal character fixed into a special wear resistant bond. The diamonds can be arranged in different pattern in single layers or multiple layers depending upon the field of operation. Several diamond points in contact with the wheel face reduce the unit pressure on each point resulting in a longer tool life with full utilization. Multipoint is used for large wide grinding wheels. Set the Multipoint tool into the center of the grinding wheel. Depth of cut should not exceed more than 0.01-0.04 mm. Use plenty of coolant to increase the tool life. The mounting must be vibration free, with the clamping length as short as possible

Type : Multi Point Diamond Dressers

Material : Mild Steel

Diameter : 10-15mm

Length : 100-150mm

Application : Industrial Use

Feature : Durable

Finishing : Polished

Country of Origin : India

Brand Name : KUTWEL

Diamond wheels are mainly suitable for rough grinding, semi-finishing, micro-finishing, polishing, grinding, cutting of hard alloy, magnetic material, mold and measuring tool, knife and cutting tool, glass, stone material and ferrite work piece.

impregnated diamond dresser is quite similar to that of multipoint diamond dresser. In the dresser the crushed diamond grit in both natural & synthetic grades are set in a several layers in random pattern. With this type of tool, the dressing work is carried out by several small diamonds which together result in excellent performance. To achieve good results, the diamond particles must have at least double the grinding wheel grain to be dressed. Tools with higher diamond content are more efficient in this case. These tools are more suitable for fine and sensitive grinding wheels where a lower surface finish is required. advantages of impregnated tool: dressing time is reduced as higher feed rates can be used. they are tougher and more resistance. these tools can be used completely without any requirement of maintenance. extend wheel life by less stock removal per dressing. no resetting or re-lapping required. these tools are inexpensive and easy to use.

We produce hardness testing indenters according to the Rockwell & Vickers system. Error free, exactly 0 formed natural diamonds are super lapped to an exact angle of 120 with incredible micro finish, to achieve high standards of precision and performance. Hardness Indenters are used in manual and automatic hardness testing equipment. These are tested to give constant reading to hardness of metals.

Diamond files are extremely sharp to give faster and more economical stock removal on hardened and non hardened steel, on carbides, ceramics, molds, die plates, punches, glass, quartz, carbon fibers, graphite, hard and precision stones. These are manufactured in a control and unique plating technology with mechanical support and are reliable tools for everyday use.

These pins are having diamond mounted points which are used for small diameter machine and high speed grinding. Diamonds are deposited in every possible shape. Because of their superior cutting quality and shapes stability these tools are more suitable for machining material which cannot be economically ground with the metal or resin bonded diamond tools. Due to wide range of capability it is also used for internal grinding of carbide dies and wear parts.

Diamond wheels are mainly suitable for rough grinding, semi-finishing, micro-finishing, polishing, grinding, cutting of hard alloy, magnetic material, mold and measuring tool, knife and cutting tool, glass, stone material and ferrite work piece.

For the accurate profiling of grinding wheel only chisel tools are preferred for these operation, These Chisel Type Diamond Dressers are manufactured with specially selected higher quality natural diamonds, which are used on Diaform, Akuform & similar machine.   TO GET MAXIMUM TOOL LIFE: Always select the larger profile angle. These diamonds are sensitive to shock and impact. It may be fractured or broken by striking any hard substance. Protect and store the tool properly when not in use.

For the accurate profiling of grinding wheel only chisel tools are preferred for these operation, These Chisel Type Diamond Dressers are manufactured with specially selected higher quality natural diamonds, which are used on Diaform, Akuform & similar machine.

Blade Type Diamond Dressers is quite similar to that of Multipoint diamond dresser. In the dresser the crushed diamond grit in both Natural & Synthetic grades are set in a several layers in random pattern. With this type of tool, the dressing work is carried out by several small diamonds which together result in excellent performance.
