Lab fine Instruments Khar West, Mumbai, Maharashtra

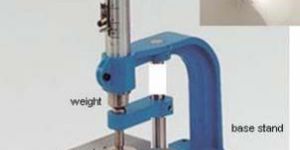

Tubular Impact Tester is also known as falling weight tester. It is used for evaluating the impact resistance of a coating to cracking and peeling from a substrate when it is subjected to a deformation caused by a falling weight. With our capability of producing high quality Lab Instruments, we have been enlisted among the leading Tubular Impact Tester Manufacturers, Exporters and Suppliers in Mumbai, Maharashtra. We can also make available our testers as per the specifications provided by the customers at affordable rates.

We offer Salt Spray Corrosion Tester which can be easily operated and requires low maintenance. Made from high grade components using sophisticated technology, our Salt Spray Corrosion Tester is highly appreciated among the customers. The Chamber of Our Salt Spray Corrosion Tester is manufactured considering various factors such as number of panels, size of test product, heating facility and material used for construction. Customers can get Salt Spray Corrosion Tester’s size customized as per their requirements.

We offer Peel Strength Tester to customers worldwide. This instrument is widely used in packaging industries for testing adhesive tapes, gums etc. Our Peel Strength Tester is designed for quick and reliable tensile, peel, bending, compression, shear and fatigue cycling on metals, composites, alloys and many more finished products. Customers can avail our Peel Strength Tester at market leading prices. We are Peel Strength Tester Manufacturer, Exporter and Supplier in Mumbai, Maharashtra.   Details : It is designed to pull the adhesive strip over the steel strip or any other rigid strip, at a constant speed without any jerks Direction of the pulling force is kept at 90-180 degree to separate adhesive strip The required load is directly indicated by digital display in grams The maximum load locking arrangement is provided to the display Top grip is provided to hold steel strip, as well as flexible strip over which adhesive strip is pasted The bottom grip is provided to hold adhesive flexible strip which pull by way of motorize rotating mechanism at constant speed

We are offering Pay Off Measuring Instrument designed to measure the amount of mass in grams release from lipstick after traveling of 100cm length under the standard pressure at constant speed. This instrument is designed to comply with IS 9875-1990. Our Pay Off Measuring Instrument is an automatic and table top lipstick tester. It is designed by our experts using advanced tools and technology in our high-end manufacturing unit. Customers can avail this at very affordable price. Contact us for more details.   Details : Specification : electric supply : single ph 230v Dimension : 250 l *200mm w* 150mm Weight : about 3kg Models : single lipstick holder, double lipstick holder and automatic electronic controller.

We offer a precisely engineered Paint Panel Pressure Tester to our valuable customers. This device is made to test two panels which are kept in open-air atmosphere for 24-hours after the completion of the coating process. The two panels have to be kept under 10 minute loads under ballpoint pressure to test their adherence. With our rich industry experience for nearly two decades, we have become a prominent Paint Panel Pressure Tester Manufacturer, Exporter and Supplier in Mumbai, Maharashtra. Customers can avail our products at affordable prices.

Drying Time Measuring Instrument is developed and designed by us for measuring the drying time of coating which is applied on paper or metallic panel. It is very handy and available in various sizes. It is precisely engineered by our experts at our high-end manufacturing unit. We are a renowned Dry Time Measuring Instruments Manufacturer, Exporter and Supplier in Mumbai, Maharashtra. Working Principle : A ballpoint travels on the wet film at a constant speed. This ballpoint leaves the traveling path on the film This speed is proportional to time piece (watch) mechanism When the coating of film starts drying, it becomes hard slowly At this junction the ballpoint get lifted above the dry film and shows the rubbing path on film After completion of one circle of ballpoint observe the path. Mark the starting point and the point of rubbing action, which indicate the drying point Different Least counts : For a model having one revolution 12 minutes the least count would be 1 division (natural 1 min) mark on gauge i.e. 12 second For a model having one revolution of 6 hours the least count would be of 1 division (natural 1 min) mark gauge i.e. 6 min

Break Load Tester is offered by us to determine the load require for breaking the lipstick. Our Break Load Tester is manufactured using advanced technology and tools in compliance with the industry norms. It is easy to use and is considered highly efficient. A digital display is provided in our Break Load Tester to measure the breaking load. To protect the hook from over traveling, all safety measures have been provided with the Break Load Tester. Contact us for more details. Working : Lipstick is holed horizontally in the provided chuck A vertical rod having a ‘V’ shaped hook travels downward at a constant speed and press the lipstick till it breaks The highest load value is locked in the display

We are highly engaged in developing Bacterial Filtration System which is used for evaluating the bacterial filtration (BFE) of medical face mask materials and other medical cloth. This device is developed as per the international quality standard ensuring its performance and durability. With our rich experience for nearly a decade in this domain, we have enlisted ourselves among the leading Bacterial Filtration System Manufacturers, Exporters and Suppliers in Mumbai, Maharashtra. Customers can avail our product at market leading prices.Working : The mask material is clamped between a six-stage cascade impacter where Petri dish kept with agar and an aerosol chamber The bacterial aerosol is introduced into the aerosol chamber using a nebulizer and a culture suspension of staphylococcus aureus The aerosol is drawn through the test material using a vacuum attached to the cascade impacter This collects aerosol droplets which penetrate the test material The agar plates are incubated for 48 hours

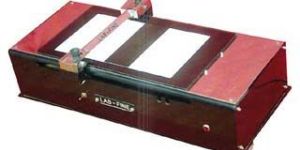

Automatic Film Applicator is a motorized film applicator which has full control over speed and pressure. It was developed to overcome the errors created by manually operating film applicator. The quality depends on the shear rate and the weight of the applicator. Automatic Film Applicator offered by us is precisely designed to provide accurate results. Customers can avail our Automatic Film Applicator at market leading prices. Specifications : Travel speed : fixed or variable stroke Length : 250mm Test panel size : 250mm*200mm Power supply : 230v single phase Dimensions : w300mm*l550mm*h180mm Weight : 15 kg

We are a prominent firm highly engaged in designing and developing Automatic Erichsen Cupping Tester to overcome the drawbacks of the hand operating machines. Automatic Erichsen Cupping Tester is used for evaluating the resistance of a coating to cracking and detachment from a metal substrate when it is subjected to a gradual deformation. Known for its high performance and durability, our Automatic Erichsen Cupping Tester is appreciated among the customers all over the world. Our cupping tester is available at a very reasonable price. Working : A coated metallic sheet is clamped and ballpoint is press As the test panel is deformed, the coated surface is kept under observation The point at which cracks or detached from the substrate is noted   Specifications : Punch : spherical diameter of 20 mm Sheet holder : diameter 33 mm Die : diameter 27 mm Dimensions : 450 x 450 x 550 height Motor : I ph. 230 v. Weight : about 25 kg.
