Lab Glas Technik Private Limited Mahim, Mumbai, Maharashtra

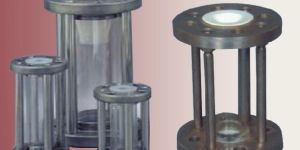

Sight Glasses are extensively used in Metallic and Won Transparent Process Piping for monitoring the Flowof Liquid. Construction : The Assembly consists of a Borosilicate Glass Pipe Sondwiched between Top and Bottom PTFE Bushes and enclosed in o paired MS Frame. The contact parts for Process Fluid are only Glass & PTFE. Optionally Frames in Stainless Steel are also available or request. Sizes : The Sight Gloss Assemblies are available in sizes from 1" NB to 6" NB with End Flanged Drilled to ASA 150/ "F" Table or "D" Table etc, as per clients choice. These assemblies are suitable for Full Vacuum and Temperatures upto 200 °C.

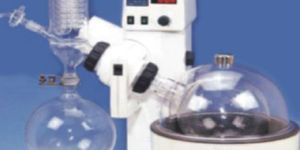

Latest Improved Features Flask Holding Design with Threaded Lock Clip for Firm Holding of Rotary Flask Vapour Duct Tube with Reflux Control Valve for Easier Reflux Process Anti Splash Acrylic Cover for Heating Bath to Prevent Hot Water Splashing

Quartz Distillation Unit Application : Best For Distillation Of Water (General & Lab Use) The water distillate obtained fro Quartz Single Distillation Apparatus is better compare with distillate obtained from other types/method of distillation apparatus. This apparatus can be used for Acids. Advantages Of Quartz Single Distillation Apparatus Compact design, Portable model and very easy to handle/ shift. The unit hasa boiler portion made of High Purity Electronic Grade Transparent Quartz. The unit is mounted on a sturdy stand (Panel box) which also has the boiler and condenser clamps. A bottom vent is provided in bottom boiler for general cleaning and maintenance. The main constituent of Quartz is SiO2>99.9%, which makes the apparatus highly resistantto any Thermal shock, devitrification and resistanttowaterand acids. The electrical heaters are so designed, they do not come into contact with water, because they are embedded inside a quartz tube, hence nullifying the possibility of metai contamination by the heaters. The given volume of water in the boiler during the Distillation process is very less, resulting in low heat loss, hence power is saved. The distillate obtained from this apparatus is PYROGEN FREE, it is also free from metal ions.

The Vacustate suitable for Measurement of Pressures in the ranges of 10mm to 10-3 mm of Hg. This convenient Gauge is modification of the McLeod Gauge. This Gauge avoids the use of a movable reservoir of mercury, construction and the position of use in shown in the figure.

We are manufacturer and supplier of a wide range of Plastic Lined Nuts & Bolts, which effectively holds the objects together. These bolts and nuts are made using quality metals and are tested for dimensional accuracy and durability. Further, our product line is available in various standard and customized specifications to cater to the diverse requirements of our clients. Bolts & Nuts are extensively used in the following areas Engineering industry Construction industry Interior Designing   Features Wide choice of materials, types of design and sizes to suit every applications Resistant to corrosion No more cutting of corroded steel nuts and bolts when removing from chemical equipments, pipelines. etc. Easy to reopen without loss of time and labor Economical against expensive S S hardware Nuts & Bolts ensure strength of steel and corrosion resistance of plastics Most useful for chemicals, acid, dyes & intermediate, steel industries, electric & electronic, aerospace, marine & automotive Industries plastic fabricators Plastic pumps & valves manufacturers and environment / pollution control equipment manufacturers

We are manufacturer and supplier of a wide range of Plastic Lined Nuts & Bolts, which effectively holds the objects together. These bolts and nuts are made using quality metals and are tested for dimensional accuracy and durability. Further, our product line is available in various standard and customized specifications to cater to the diverse requirements of our clients. Features Telescopic suction pipes are suitable to 100 to 210 liters drum 330 ml discharge per every down strokes Corrosion resistant Easy to use Durable

Material : Plastic

One of the most popular applications of PSA Technology is in the operation of Nitrogen Generators. This Process is based on the selective adsorption phenomena of gas molecules which is Carbon based Molecular Sieve (C. M. S.) In Pressure Swing Adsorption system as soon as compressed air is entered through an adsorption tower filled with Carbon Molecular Sieve, the molecules of gases like oxygen, moisture & other undesired gases are adsorbed on surface of the adsorbent. While Nitrogen that is not adsorbed passes out of adsorption tower. It is then collected in a surge vessel. For continuous flow of Nitrogen two adsorption towers are installed. They are inter connected with Auto change over valves. These Auto change over valves are controlled by Timer Circuit, as the saturation of one tower with oxygen gets completed, in built mechanism makes the process automatically switch to another tower and thus the nitrogen production remains continuous. Nitrogen has a wide range of industrial application. Different Capacity of Laboratory Based Nitrogen Gas Generator are available Tecnical Specifications Moisture Content < 2 ppm Oxygen < 5 ppm Total Hydro Carbon < 0.3 ppm CO & CO2 < 2 ppm   Salient Features   Nitrogen Generator for low investment Low Electric power consumption. Calibrated needle valve to adjust purge flow. No moving parts. Hence negligible maintenance. Easily installed - just make the air connection Plug in the electrical power cord. Skid mounted unit need no pounds. Pressure capacity : from 4.0 - 7.0 Kg/cm2

Supplied with 250ml Reaction Vessel, Auto Burette (25 x 0.1ml), 500ml Amber Color Reservoir, Dual Platinum Combined Electrode, Teflon Paddle, Teflon Assembly for holding, Electrode, Moisture Trap, Actuator Assembly, Operational & Instruction Manual and Manufacturer Test Certificate. Calibrated 25 ml Auto Burette having Min.Graduation of 0.1ml with Certificate Auto Drain of Reaction Vesselm

Suitable for: Pressure up to 3.5 Kgs/Cm2 Under Stirring OR 4 Kgs/Cm2 Under Vacuum & Temperature from -20 to 180°C Glass Reactor The Reactor & the Dish End are made out of Specially Drawn .32 Expansion Heat Resistant Borosilicate Glass Tube as per International Standards. Attachments The Thermo well, Gas Sparger/Dip Pipe etc. is fabricated from thick Borosilicate Glass Tube having Nozzle Size of 1" with standard C. I. Backing Adaptor Flange is provided for attaching a Pressure Gauge.

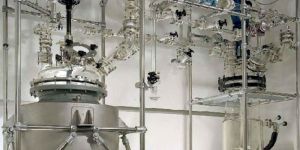

Silica Ware Offer's a Complete Multipurpose Pilot Plant having all Contact Parts in Glass and PTFE for Carrying out various Reactions like Stirring, Addition, Vacuum Distillation Fractional Distillation, Dean & Stark Reactions etc. in one compact unit. The Unit The Pilot Plant consists of a 20 Litre Glass Reactor with Glass Lid Cover, Glass Anchor Stirrer, Graduated Addition Vessel with Piping, Glass Column of 2 feet packed with Special PTFE Structured Packing for Higher Efficiency, Glass Piping with Valves etc. for Reflux at top of Column Glass Separator with Dean Stark arrangement for Lighter & Heavier layer separation and feed back along with 2 nos, Graduate Glass Receives. The unit is driven by a Geared Motor, and is supported on Powder Coate Tubular Structure. Salient Features Single Compact unit for Carrying Out lab and Pilot Scale Reactions. Made From all Indigenous Parts. Available with Options of Glass Lined Reactor with Glass Lid, PTFE Coated SS 316L High Efficiency Stirrer, Flame Proof Motor with RPM Indicator and Variable Speed Drive, Panel Mounting Digital Indicator for temperature and SS Flange & Structure.

Optional Accessories Flame Proof Motor with VFD All Metallic Parts in Hastelloy C

We are manufacturer and supplier of a wide range of Pipe Flanges which are fabricated by the professionals of our firm using top grade material which is sourced from known vendors of the market. The offered flanges help in reducing turbulence and erosion inside the pipeline. We develop this range using the finest quality polypropylene and up-to date technology. The offered flange is basically used to effectively control water in agriculture and industrial filed when pumps are line off. These components are provided to our valued clients at the most affordable prices.

Size : 60 mm to 400 mm

Temperature : -40 to +95

Material : Plastic

Nitrogen Gas Line Consist of Moisture Filter consist of Molecular Sieve - 13X & Silica Gel, Length : 11" Regenerable Type Indian Oxytrap Inlet & Outlet Machine Sealed Type Stainless Steel Pressure Gauge Brass Chrome Plated Pressure Regulator with SS Diaphragm Brass Chrome Plated On/Off Valve Zero Air Gas Line Consist of Moisture Filter consist of Molecular Sieve - 13X & Silica Gel, Length : 11" Hydrocarbon Filter Consist of Activated Carbon Sieves, Length : 11" Inlet & Outlet Machine Sealed Type Stainless Steel Pressure Gauge Outlet Brass Chrome Plated Pressure Regulator with SS Diaphragm Brass Chrome Plated On/Off Valve

Supplied with 250ml Beaker, Teflon Assembly for holding capillary, Heater, RTD Sensor, Silicon Oil, Melting Capillary one end sealed (Pack of 100 Nos), Boiling Tube, Teflon Coated Magnetic Paddle, Power Cord , Operational & Instruction Manual and Warranty Card Salient Features Built in Magnetic Stirrer with soft touch Key Speed Controller with audio sound. Simultaneous Display of Melting Range as MP1 & MP2. Automatic Temperature Heating depending upon heating requirement. Electronic Temperature Regulator to increase / decrease heating rate. Facility to enter set temperature by using soft touch keypad. Soft Touch Keypad to prevent contact problem. Over heating protection by heating cut-off. On-site Temperature Calibration by Calibrated Thermometer. Re-Call Default factory set calibrated temperature data

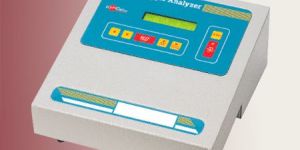

Supplied with Combination Glass pH Electrode (0-70ºC), Standard Buffer Tablets, Temperature Probe, Electrode Stand with Clamp, Dust Cover, DC Adaptor, Operational & Instruction Manual,ManufacturerTest Certificate & Warranty Card. Salient Features Auto Buffer Recognition & Simultaneous Display of pH, mV & Temperature, Auto / Manual Temp. Compensation Last Calibration Data storage with date and reading of pH, mV & Offset Value Current Analysis Data Printing Facility with calibration data, 10 analysis data storage & printing with corresponding Calibration data etc.

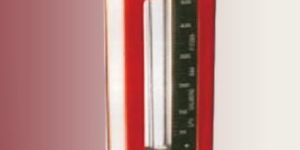

We offer Glass Tube type online Flow Measurement Rotameters for wide applications in line sizes from 15NB to 80NB for Flow Rates upto 20000 LPH. The differential pressure across the Annuals Area is constant and the flow rates is measured as a function of the Annulus Area. This area is displayed as the position of the float. These Rotameters are very accurately calibrated using the latest techniques and are suitable for a variety of Liquids and Gases. We also provide PTFE or PP Lined Flanges in the design of Rotameters which are used for measuring the flow of highly corrosive liquids or gases.
