Larsen & Toubro Limited Saki Vihar, Mumbai, Maharashtra

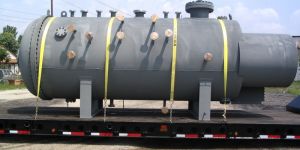

Waste Heat Recovery systems supplied for various licensors with thermal as well as mechanical guarantees. No. supplied: 15 Dimensions: 35 m x 6.5 m x 6.5 m, Weight: 2700 MT WHB package Supplied to JGC for Bazan Project, Material: LAS, CS

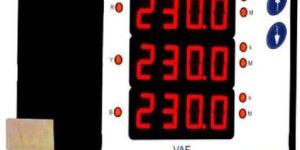

3 line LED display, Measures Phase voltage, Line voltage, Average voltage, Phase current, Average current, Frequency, RPM, Models with secondary current of 5A and 1A, Password protected programming mode through keypad includes, RPM : Number of poles programmable from 2 to 16, CTPT ratio., Suitable for 5060 Hz electrical systems, Auto scaling of Kilo & Mega LEDs, Rugged design for industrial use

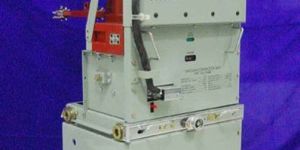

Vacuum Contactor Units from L&T are three-pole contactors with electromagnetic operating mechanism for medium voltage switching applications. Applications such as neutral grounding of Generators, operations of soft starters, Reactor Capacitor switching, motor switching duties need numerous switching operations. Effective & efficient switching in such areas with high operating voltage is achieved with Vacuum Contactor Units. Our VCUs are suitable for system voltage up to 12kV and short circuit capacity up to 50kA, with HRC fuse. L&T VCUs come with latched & non-latched configurations. Design, manufacturing & testing processes of VCUs meet international demands through a compliance of IEC 62271-106.

We offer half panels and sub-cubicles for 11kV. The VCB is ‘draw out’ type and can be racked out directly on the floor. VCBs are type tested according to International Standards IEC-62271 at renowned laboratories. They are compact, safe and reliable. The sub-cubicle is VCB with its compartment having all safety interlocks. The half panel is an assembly of the medium voltage compartments except for low voltage compartment.

The 3 Phase CT Operated Trivector Meter is designed for metering of HTLT consumers and for feeders. The meter has advanced data and tamper recording capabilities and is provided with communication ports. Software is available for data collection, load survey analysis and energy management applications. The meter can be interfaced to a variety of communication devices.

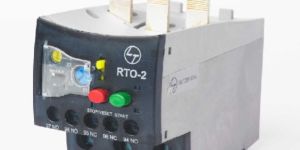

Thermal overload relays are protection devices required in various motor starter combinations. L&T’s range of contactors complements its range of thermal overload relays. These are available for various DOL Star delta combinations. They have a built-in sensitive mechanism which protects the motor from overload and single phasing.

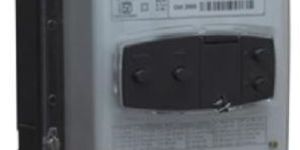

L&T’s high accuracy availability based tariff (ABT) meters provide a flexible solution for energy monitoring and billing bulk inter utility power flows. Class 0.2s accuracy, 3 Phase 4 Wire, Conforms to IEC and IS standards, 15 minute block average for frequency and energy, Frequency coding for billing, Separate reactive energy registers linked to supply voltage, Midnight storage of energies, Load Survey, Optical portRS 485 communication (optional)

S-D-F range covers ratings from 32A to 800A. S-D-F’s range is available in both open execution & Sheet steel enclosure version (Suitable for 14x51 Cylindrical, DIN, BS type fuse-link) S-D-F range provides users with a high level of safety & Convenience. The complete range conforms to IS IEC60947-3 standards. It also carries the CE marking signifying compliance to stringent European safety norms. S-D-F's superior features translate into better safety & convenience for the users. Fuse barriers & Terminal shrouds provide protection against accidental direct contact. Terminal shrouds also protect against phase to phase short circuit through an external conducting path. Double isolation of fuses when S-D-F is in OFF position makes replacement of fuses risk-free.

Feature : Padlock up to 3 locks,Flexibility (± 3mm mismatch operational quadrant)etc.

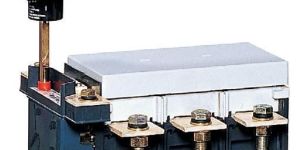

S-D-F range covers ratings from 32A to 2000A. S-D range is available in both open execution & Sheet steel enclosure versions. S-D-F range provides users with a high level of safety & convenience. The complete range conforms to IS IEC60947-3 standards. It also carries the CE marking signifying compliance to stringent European safety norms. S-D superior features translate into better safety & convenience for the users. Terminal shrouds provide protection against accidental direct contact. Terminal shrouds also protect against phase to phase short circuit through an external conducting path. Positive ON OFF indication ensures that the handle indicates OFF position only when main contacts are actually open. Large ground clearance eliminates possibility of phase to ground flashover. Built-in padlocking arrangement provided to lock the unit in OFF position prevents inadvertent operation of the unit.

Feature : Padlock up to 3 locks,Flexibility (± 3mm mismatch operational quadrant)etc.

We manufacture and supply steam surface condensers for large scale utility power plants, industrial power plants and captive power plants. We offer condensers in rectangular and circular configurations for radial, axial or side steam entry options. Our experience includes current execution of 16 units of 600 – 800 MW class supercritical power plants with Titanium & Stainless Steel tubes. Our largest supply of Condenser was 800 MT weight, twin shell, dual pressure, 50,300 m2, effective surface area with 25 BWG welded Titanium Tubes for a 800 MW supercritical power plant in India. We have handled hydrotest pressure upto 515 kg cm2 and Tubesheet thickness of 535mm.

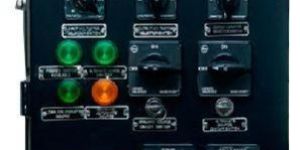

Static Transfer Switches (STS) change over from Normal supply to Alternate supply within 15 milliseconds upon failure from Normal supply. In the event of power restoration supply preference is given to the normal supply. Under voltage, over voltage, short circuit and overload protection is provided to STS.

Feature : Cable entry with MIL connectors,STS & change over switches are manufactured in compliance with JSS 55555, MIL-STD-461E etc.

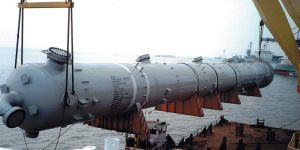

L&T Heavy Engineering has state-of-the-art manufacturing facilities which are capable of meeting the challenges of technology, quality conformance & delivery, while ensuring cost competitiveness. 90mm-thick Stainless steel column for Kellogg JV Woodside LNG Project in Australia.

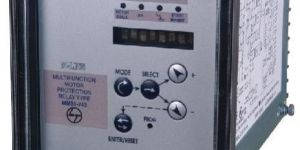

MRP11 is micro controller based single phase, reverse power relay with one measuring element. Relay operates for pure active reverse power only and will not cause spurious tripping due to PF fluctuations in the system. Relay can work as a reverse reactive power relay with an addition potential transformer.

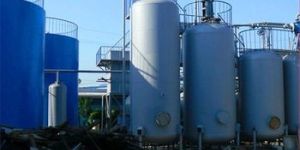

L&T has supplied FCC reactors and regenerators to the specifications of well-known process licensors, with supplies of regenerators as large as 16.3-metres diameter and 1200 MT weight. Refractory-lining of equipment is a major field of specialization. Specialised multi-tubular reactors are offered, such as EO reactors and PAN reactors. We’re also geared for manufacturing futuristic gas-to-liquid reactors for the oil & gas sector, in addition to traditional products such as test and production separators (separate or skid-mounted).

The Radar Antenna Frame is a very critical assembly of the Radar. It is manufactured within stringent dimensional and geometric tolerances as it houses the TR Modules, RF assembly & Antenna electronics. The structure is made of various grades of aluminium sheet metal & machined components to give stability and stiffness to the structure. The panel assembly consists of extensive solid riveting and blind riveting and is carried out by highly skilled manpower. Antenna Frames of size greater than 5m has been manufactured till date.

Size : 5m

The new range of Gen Next series products are compact in size and aesthetically appealing. 16 mm Gen Next LED Indicators have sleek and integral design with special fire retardant plastic. They provide uniform and bright illumination with operating life of more than 0.1 million burning hours.

We manufacture equipment using an exhaustive array of materials including low & high alloy steels, stainless and duplex stainless steels, clad & overlaid steels, exotic material such as nickel, monel, cupro-nickel, copper hastelloy, titanium, zirconium, tantalum and new age composites. Our manufacturing activities are supported by engineering capabilities in thermal and mechanical design, special analysis including stress and vibration analysis, procurement, project management, logistics and specialized services for site-work, erection & commissioning.

This compact EM101+ single phase meter fits snugly into any meter box. The bright back-lit display ensures ease of reading. Class 1 accuracy as per IS and IEC standards Forward energy recording irrespective of current direction Indication for power on, current reversal and ELT Reset backups Multi-tariff Time of the Day metering High surge withstand capability Load Survey (Interval Data) Anti-tamper features Optical portRS 232 portLow Power Radio (optional)

Dimension : 174 H x 141 B x 74 D mm

We also manufacture and market a comprehensive range of high quality electronic energy meters and numerical protective relays for utilities, industries, commercial establishments and individual users.

The Type GR-1 RMU is designed with a combination of innovation and state-of-art insulation principles & current interruption techniques. GR1 is available for 12kV which can withstand 20kA for 3 seconds. This outdoor design is safe to operate with the help of mimic diagram & position indicators to guide operators. All passive interlocks, comprehensive padlocks are designed for user friendly operations and are safe.

We have been a leading manufacturer of hydraulic excavators in the Indian market for over three decades. while meeting high standards of safety, reliability and productivity. The product portfolio includes Dozers, Rear Dumpers, Hydraulic Excavators, Wheel Loaders, Motor Graders and Wheel Dozers.

Heavy wall CS SS Pressure Vessels & Large Columns supplied for LNG Liquefaction (export) Terminals across the world. Total No.: Over 75, Processes: ConocoPhillips, AP SplitMR, Shell, Materials: CS & SS, Max. Thickness: CS – Up to 150 Thickness, SS – Up to 135 Thickness, Max. Unit Weight: 1200 MT.

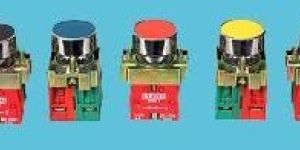

Remote control units play a crucial role on factory shop floor for operational safety and reliability. Reliable push buttons and indicators from our partners ESBEE, have been trusted by users across industries over the past four decades. 16 mm Gen Next LED Indicators have sleek and integral design with special fire retardant plastic. They provide uniform and bright illumination with operating life of more than 0.1 million burning hours.

Power : 0.6 W max

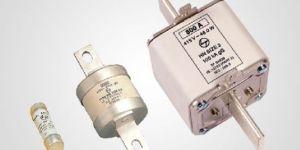

HRC Fuse Link range covers ratings from 2A to 800A. HRC Fuse-link range is available in 14x51 Cylindrical, DIN and BS type, High breaking capacity: 80kA for Cylindrical & BS Type & 100kA for DIN Type, The complete range conforms to IS 13703 (Part 2) IEC 60269-2 standards, Let-through energy value of L&T’s fuse is extremely low; it leads to optimal selectivity for the cable size & downstream protection devices. Low power loss also leaded to low running cost & minimum heating. Fuse blown indication is available through a red pop-up indicator, Suitable fuse base & fuse pulling handle are also available.
