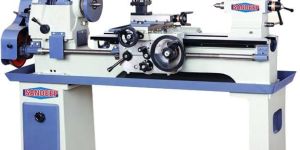

Light Duty Lathe Machine Dealers in Mumbai

Stand. Accessories: Chuck Plate • Gear Set • Centre Adaptor • Dead Centers • Dial Indicator • Square Tool Post • Tool Post Key Optional Accessories: Steady Rest • Follow Rest • Norton Gear Box • Electrical Fittings • True Chuck & Dog Chuck •Quick Change Tool Post • Tapper Turning Attachment • Coolant Pump with Tank & Fittings •Face Plate • Machine Lamp • Rear Tool Post • Key way Milling Attachment • Tool Post Grinder

• Automation Grade: Semi-Automatic
• Brand/Make: Shital
• Feature: Big Spindle Bore
• Power Required: 2 HP
• Spindle Nose: 6 TPI

• Automation Grade: Manual
• Type of Bed: Pedestral
• Centre Height over flat bed ways: 165 mm
• Swing In Gap: 500 x 112 mm
• Length of Gap in front of Face Plate: 140 mm
• Width of Bed: 225 mm
• No. of speed: 8
• RPM Low & High: 40 to 950
• Motor Power: 1 H.P
• Floor space: 65
• Swing Over Bed: 320 mm
• Swing Over Cross Slide: 190 mm

HARDENED BED UPPER MOTOR CHANGE GEAR TYPE OR NORTON GEAR TYPESTANDARD ACCESSORIES :Two dead Centres, Centre Sleeves, Square Tool Post, Tool Post Key, Gear Set for MM & Inch Thread, Carrier Plate, Motor Pulley, Thread Chart, Suitable Electric Motor, Dog Chuck with Flangue, R/F Switch, V Belt.OPTIONAL ACCESSORIES :Quick change Norton Gear Box, Rear Tool Post, Taper Turning attachment, Coolant unit with Assembly, Machine Lamp, 3 Jaw True Chuck, Chuck Flange, Face Plate, Steady Rest & Follow Rest, Revolving Centre.
