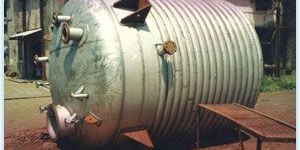

Limpet Coil Reactor Dealers in Mumbai

• DIA: 2500
• HEIGHT: 3500
• MOC Vessel: SS 316
• MOC Limpet: SS 316

The construction of Limpet Coil Reactor is same as that of Jacketed Reactor except instead of Jacket on the Shell of Reactor Limpet Coil is welded on it. LimpetCoil Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends.Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade filler rods depending on MOC of the Limpet Coil to withstand design pressure. The drive is designed to give maintenance and trouble free performance. The Agitator Shaft is coupled to the Reduction Gear Box with Flexible coupling. The Reduction Gear Box is mounted on the Top of the Lantern Assembly and is driven by Motor using V belt pulley. Variator or AC drive can by used to get variable speed of the Agitator if desired. Four lugs support are provided on the Shell of the reactor to mount it on the Platform of the Factory. Platform can also be prefabricated and assembled at site. Welding work is performed by Argon Arc process using Good Characteristic Filler rods on all S. S. Parts. M.S. Parts welding is performed by D. C Arc welding process using suitable electrodes of Advani Oerlikon make. All weld joints will be finished from inside and outside, S S. Parts is cleaned from inside and outside. Two coates of primer redoxide will be given on M.S. parts from outside.

• Voltage: 440 V
• Features: Robust construction ,High corrosion resistance ,Long functional life
• Material: Stainless Steel
• Mixing Arrangement: Vertical
• Tank Orientation: Vertical
• Phase: Three Phase
• Material Grade: S.S.316/S.S.304/C.S
• Power Source: Electric

The functioning of this reactor is similar to that of Jacketed Agitated Tank. The difference being that instead of a jacket there are coils welded on to the inner shell vessel itself. This spiral coils are sized and placed according to the temp required for reaction.
