WAVE SPRING SEALS Wave Spring Seals are designed for bi-directional use and work with highly viscous, abrasive media, water, oils, fuels, light aggressive chemical substances and liquids containing solid particles. Most of the components are interchangeable, hence it proves economical and easy to maintain. All components are held together by snap ring which helps in easier installation and removal.   Industrial Application: Sugar, Waste Water, Oil Refinery, Paper & Pulp Industries etc.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic, Special Cast.   Metal Component: S.S 304, S.S 316.   Secondary Seal: Viton, PTFE, EPDM, NBR, FKM.   Operating Limits: Pressure : 16 bar Temperature : -50˚C to 250˚C Speed : 20 m/s

Material : Mild Steel

Finishing : Polished

Shape : Round

Color : Silver

Packaging Type : Packet

Type : Industrial Seals

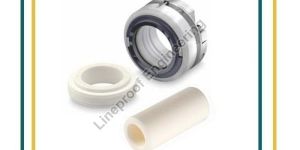

TEFLON BELLOW SEALS Teflon Bellow seals are designed to handle highly corrosive liquids. It is outside mounted with a simple installation procedure and hence cost effective. Sealing faces are replaceable and are driven by internal lugs on bellows. Faces can be easily removed & replaced.   Industrial Application: Chemical, Petrochemical, Pharmaceutical, Acetic acid.   Face Materials: GFT, Ceramic, Silicon Carbide, Carbon.   Metal Component: S.S 316, Alloy 20, Hastelloy C.   Secondary Seal: Teflon Bellow.   Operating Limits: Pressure : 6 bar Temperature : -45˚C to 120˚C Speed : 20 m/s

Material : Mild Steel

Finishing : Polished

Shape : Round

Color : Silver

Type : Industrial Seals

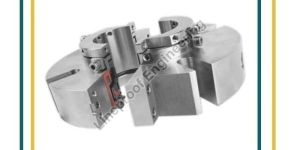

SPLIT SEALS Lineproof Engineering is the leading manufacturer & exporter of Split Seal. Split Seals are designed for the equipment where dismantling of the equipment is difficult. These seals can be easily installed in the equipment without prolong shut down.   Industrial Application: Chemical, Petrochemicals, Pharmaceutical.   Face Materials: Carbon Graphite Antimony impregnated, Silicon Carbide.   Metal Component: S.S 304, S.S 316L.   Secondary Seal: FKM, EPDM, NBR.   Operating Limits: Pressure : 10 bar Temperature : -40˚C to 150˚C Speed : 10 m/s

Material : Mild Steel

Finishing : Polished

Shape : Round

Color : Silver

Packaging Type : Packet

SPARKLER FILTER SEALS Sparkler Filter Seal is used for the sealing of a wide variety of sparkler filter pumps. This mechanical seal is highly demanded for their supreme performance, top notch quality, and extended durability. Seal design is sturdy. It is available in different sizes, and specifications for our patrons. Specially designed for industrial filter press machines.   Industrial Application: Hygienic Dairy, Pharmaceutical & Food Beverages.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide.   Metal Component: S.S 304, S.S 316.   Secondary Seal: Viton, PTFE, FEP, NBR, EPDM.

Material : Mild Steel

Finishing : Polished

Shape : Round

Pressure : 10 bar

Temperature : -20˚C to 140˚C

Speed : 4000 RPM

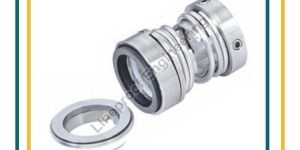

SINGLE SPRING SEALS Single Spring Seals are single helical coil spring, bi-directional seal developed for usage where media is dirty and clogging type. Internally mounted seal, therefore suitable for wide-spread applications. Torque is transmitted by drive lugs from drive collar to spring holder and seal rings. All components are held together by snap ring which helps in easier installation and removal.   Industrial Application: Process Industries, Oil Refinery, Pharmaceutical, Solvents, Paper & Pulp Industries etc.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic, Special Cast.   Metal Component: S.S 304, S.S 316, Alloy 20, Hastelloy C.   Secondary Seal: Viton, TTV, FKM, NBR, EPR, PTFE.   Operating Limits: Pressure: 12 bar Temperature : -20˚C to 140˚C Speed : 10 m/s

Material : Mild Steel

Surface Finishing : Non Coated

Shape : Round

Color : Silver

Application : Industrial

Size : All Sizes

Type : Single Spring Seal

Country of Origin : India

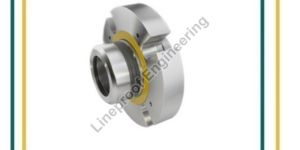

SINGLE CARTRIDGE SEAL Single Cartridge seal are special purpose multi spring Balanced Mechanical Seal designed for abrasive and corrosive media. Independent of direction of rotation. Easy installation because of Cartridge construction. Rugged design improves operating life.   Industrial Application: Pulp & Paper Industries, Petrochemical, Refinery.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic.   Metal Component: S.S 316, S.S 316L, Alloy 20, Hastelloy C.   Secondary Seal: Viton, PTFE, GFT, FKM, EPDM.   Operating Limits: Pressure : Full vacuum to 40 bar Temperature : -40˚C to 220˚C Speed : Subject to specification.

Material : Mild Steel

Shape : Round

Color : Silver

Material : Rubber

Shape : Round

Color : Black

Feature : Easy To Fir, High Grade Material Used, Premium Quality, Suprior Finishing

Pattern : Plain

Type : Rubber Diaphragms

Country of Origin : India

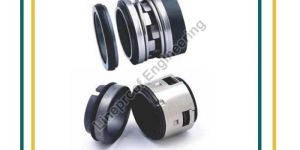

RUBBER BELLOW SEALS Rubber Bellow Seal has a self aligning feature which compensates abnormal shaft end play and run-out, which increases seal life. Elastomeric below protects the shaft/sleeve from fretting. The compact design eliminates the requirement of extra radial & axial space for its installation.   Industrial Application: Water & Wastewater, Mild Slurries, Pulp, Paper & Latex, Food Processing.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic.   Metal Component: S.S 304, S.S 316.   Secondary Seal: Viton, NBR, EPDM, FKM.   Operating Limits: Pressure : 6 bar Temperature : -20˚C to 140˚C Speed : 10 m/s

Finishing : Polished

Shape : Round

Color : Silver

Type : Industrial Seals

Pressure : 6 bar

Material : Stainless Steel

Material : Mild Steel

Finishing : Polished

Shape : Round

Color : Sliver

Condition : New

Application : Industrial

Pattern : Plain

Packaging Type : Box

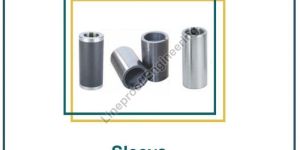

Type : Pump Sleeve

Material : Mild Steel

Shape : Round

Color : Silver

Application : Automotive Use

Feature : Durable, Fine Finishing, Hard Structure, High Efficiency

Type : Pump Shaft

Color : Mulit Colour

Condition : New

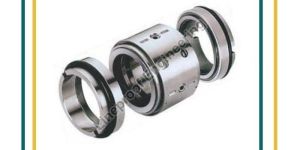

MULTI SPRING SEAL Multi Spring Seals can be used in various industries for different applications. As per the requirement of the products it can be used as single, back to back, face to face or tandem arrangement. Multiple spring usage puts uniform force over the faces hence increasing seal life. Most of the components are interchangeable, hence it proves economical and easy to maintain. All components are held together by snap ring which helps in easier installation and removal.   Industrial Application: Process Industries, Oil Refinery, Pharmaceutical, Distilleries, Paper & Pulp Industries etc.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic, Special Cast.   Metal Component: S.S 304, S.S 316, Alloy 20, Hastelloy C.   Secondary Seal: Viton, TTV, FKM, NBR, EPR, PTFE.   Operating Limits: Pressure : 16 bar Temperature : -50˚C to 220˚C Speed : 20 m/s

Material : Mild Steel

Shape : Round

Color : Silver

Packaging Type : Packet

Type : Industrial Seals

Country of Origin : India

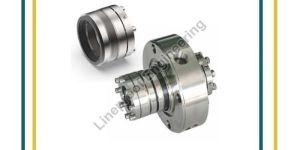

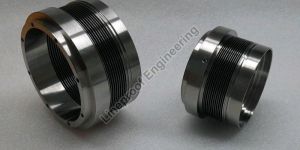

METAL BELLOW SEALS Metal bellow Seal is inherently balanced mechanical seal. These seals are independent of direction of rotation. The unique feature of this type of seal is that there are no dynamic 'O' rings and therefore it will never hang-up or damage the shaft and sleeve. It can handle corrosive as well as abrasive & viscous media. These seals have self-cleaning & no clogging construction. With selection of special bellow material it can be used in highly corrosive media.   Industrial Application:: Chemical, Power Plant, Refinery, Petrochemicals, Pharmaceuticals.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide.   Metal Component: S.S 304, S.S 316, Hastelloy C, AM350.   Secondary Seal: Grafoil, Aflas, Kalrez, PTFE.   Operating Limits: Pressure : 25 bar Temperature : -40˚C to 220˚C Speed : 20 m/s

Material : Mild Steel

Finishing : Polished

Shape : Round

Color : Silver

Pressure : 25 Bar

Type : Industrial Seals

Temperature : -40˚C To 220˚C

Speed : 20 M/s

Our specialization in offering a distinct collection of Metal Bellow Double Cartridge Type Mechanical Seal, We provide our range in readymade unit, which is easy for installation with saving of time. This Cartridge type Mechanical Seal are ready to install on any type of high temperature clear & hot application. Such seal do not require adjustment in fitting due to factory pre-assembly hence avoid installation problem. Cartridge mechanical seals are the product of choice when reliability is a requirement. These products are proven, rugged performers in a wide range of sealing applications across industries. Cartridge seals are ideal for plant-wide standardization and save time with quick & easy installation. These are available in double configuration cartridge assembly too. It finds great usage in hydrocarbon, pulp paper, steel, mine & power industries. We have very long experience in reconditioning of metal bellow mechanical seals. Features; ·         Double Cartridge Design ·         Factory Assembled & Tested ·         Metric And Inch Sizes Available ·         Quick Installation & Easy Removal ·         Independent of Direction of Rotation ·         Come with connection of Cooling Arrangement Specification; Application Petrochemical Industries, Oil & Gas Industries, Chemicals Industries, Refining Technology, Power Plants, LPG Plants, Hazardous Liquid, Thermic Fluid, Fatty Acid, High Temperature, Hydrocarbons, Biochemistry & Process Pump Etc. Materials Faces Carbon / Silicon Carbide / Tungsten Carbide Elastomer Grafoil / PTFE / Kalrez Hardware SS 316L / Hastelloy-B & C / Alloy-20 / Titanium Bellow Material AM-350 / Alloy 20 / Hastelloy-C / Inconel 625 / Titanium Operating Limits Size 25mm to 150mm Pressure 25 bar Temperature -20 to +350 Deg. C Speed 2900 RPM

Brand Name : Lineproof Engineering

Material : SS

Finishing : Polished

Material Grade : SS316l

Shape : Round

Color : Black

Condition : New

Pressure : 25 bar

Grundfos Cartridge Seal Lineproof Engineering is instrumental in offering superior quality Grundfos Pump Cartridge Seals. These Grundfos Seals have sophisticated design which can be used in high slurries application.   Industrial Application: Water, Chemical, Pharmaceutical, Boiler Feed.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide.   Metal Component: S.S 304, S.S 316. Secondary Seal: Viton, NBR, EPDM, FKM, FFKM, HNBR.

Material : Mild Steel

Finishing : Polished

Shape : Round

Color : Silver

Packaging Type : Packet

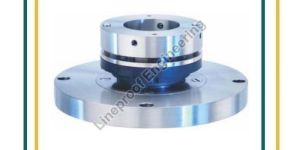

DRY RUNNING SEAL Dry Running seal are designed for agitators, mixers, reactor vessels, blowers, fans, etc. and is basically used on top of the vessel. The seal face is exposed to the gases / vapors of the product and there is no liquid / media coming in contact with the faces. These seals don’t require any external media for lubrication of the faces, hence it is known as Dry running seals.   Industrial Application: Chemical, Petrochemicals, Food & Beverages, Pharmaceutical.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic.   Metal Component: S.S 316, S.S 316L, Alloy 20, Monel, Hastelloy C.   Secondary Seal: Viton, PTFE, GFT, FEP, EPDM.   Operating Limits: Pressure : 6 bar Temperature : -20˚C to 150˚C Speed : 0 to 2 m/s

Material : Mild Steel

Shape : Round

Color : Silver

Pressure : 6 Bar

Packaging Type : Packet

Type : Industrial Seals

Temperature : -20˚C To 150˚C

Speed : 0 To 2 M/s

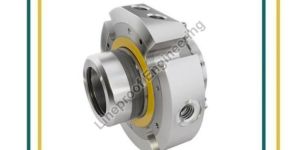

DOUBLE CARTRIDGE SEAL Double Cartridge seal are special purpose multi spring Balanced Mechanical Seal designed for abrasive and corrosive media. Independent of direction of rotation. Easy installation because of Cartridge construction. Rugged design improves operating life.   Industrial Application: Pulp & Paper Industries, Petrochemical, Refinery.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic.   Metal Component: S.S 316, S.S 316L, Alloy 20, Hastelloy C.   Secondary Seal: Viton, PTFE, GFT, FKM, EPDM.   Operating Limits: Pressure : Full vacuum to 40 bar Temperature : -40˚C to 260˚C Speed : Subject to specification.

Material : Mild Steel

Finishing : Polished

Shape : Round

Color : Silver

Packaging Type : Packet

CONICAL SPRING SEALS Conical Spring Seals are extremely rugged & reliable, therefore it is used in a wide range of sealing applications. It can be easily assembled or dismantled. The seal arrangement does not require any modification, in case of conversion from gland packing to mechanical seal. The compact design eliminates the requirement of extra radial & axial space for its installation.   Industrial Application: Process Industries, Oil Refinery, Pharmaceutical, Solvents, Paper & Pulp Industries etc.   Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic, Special Cast.   Metal Component: S.S 304, S.S 316, Alloy 20, Hastelloy C.   Secondary Seal: Viton, TTV, FKM, NBR, EPR, PTFE.   Operating Limits:   Pressure: 10 bar Temperature : -20˚C to 140˚C Speed : 15 m/s

Material : Mild Steel

Shape : Round

Color : Silver

Usage : Industrial

Packaging Type : Packet

Country of Origin : India

Material : SS304, SS316

Shape : Round

Material : Ceramic

Shape : Round

Color : Silver

Application : Industrial

Feature : Crack Free, Durable, High Ductility, High Tensile Strength

Pattern : Plain

Type : Ceramic Sleeve

CARBON FLOATING RING SEALS Carbon floating ring seals are used, if the application has a circumferential speed (sliding speed) above 40 m/s, normally for turbine and compressor applications. Installation is easy due to split design (dismantling of the shaft is not necessary). Easy replacement due to segmented seal ring design.   Industrial Application: Chemical, Petrochemicals, Pharmaceutical.   Face Materials: Carbon   Metal Component: S.S 316L, Hastelloy C, Inconel, Titanium.   Secondary Seal: FKM, EPDM, NBR, PTFE.   Operating Limits: Pressure : 20 bar Temperature : -40˚C to 280˚C Speed : 150 m/s

Material : Mild Steel

Packaging Type : Plastic Packet

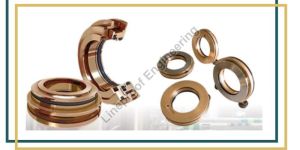

BEARING ISOLATOR A bearing isolator is a non-contact, non-wearing, permanent bearing protection device. It has a rotor and a stator, and the two are unitized, so that they don’t separate from one another while in use. Typically, the rotor turns with a rotating shaft, while the stator is pressed into a bearing housing. The two components interact to keep contamination out of the bearing enclosure and the lubricant in. Bearing isolators do not require lubrication or any particular shaft finish or condition.   The best bearing isolators are made of metal, usually bronze, and they utilize a vapor-blocking feature, which inhibits the free transfer of vapor contamination when the rotating equipment is cycled on and off.   Advantage: It prevents friction. Reduces heat generation. Increases the life of Bearing. Wear and tear resistance. Reduces Energy Consumption

Usage : Installs On Bearing Frames Used In Oil & Gas, Chemical, Mining, Pulp & Paper, Power And General Indu

Type : Bearing Isolator

Country of Origin : India

Material : Brass

Inner Diameter : 25MM
