Polyurethane Sandwich Panel
Buildings of all types require external fabrics which are capable of facing external exposure conditions while resisting various loads that are incident on them. External conditions include high or low ambient temperatures, high incidence of solar radiation (including ultraviolet rays), attack by environmental media (some of which can be corrosive) and seasonal exposure to rain, snow or sandstorm situations. Loads incident on external fabrics include wind loads, seismic loads, live loads faced during usage of the building and many collateral loads such as loads due to mechanical equipment and services directly mounted on the building fabric.
...more

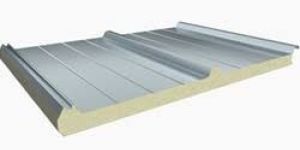

polyurethane panel
The Lloyd Panel System meets every single requirement to today's Modern Cold storage, Controlled Atmosphere Storage, Pack House, Shelters & Clean Room Enclosure, backed by Lloyd Insulations the acknowledge leader in Thermal Insulation System and Turkey Solutions.This modular design gives Lloyd Panel System a great deal of flexibility. It is as easy to set up a cryogenics cold room as it is to build a Modern Food processing plant , living and Telecom Shelter, Warehouses, Clean room or Glass- Fronted frozen foods showcase.
...more

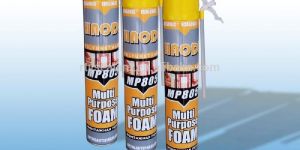

Polyurethane Foam Spray
Spray Applied, Rigid, Closed Cell Polyurethane for Building protection.LloydFoam, the spary applied Rigid Polyurethane foam is designed to combine highly efficient thermal insulation with great ease of application. It is deal of a wide range of insulation uses in buildings, particularly roofs, in addition to pipe and storage tanks in industry.By nature, liquid applied foam polyurethane adheres strongly to almost any surface regardless of foam. As foam does not sag, buckle or mat in use, it retains its insulation value for the life of the insulation. The Seamless and Monolithic nature of the sprayed foam provides a full proof method of sealing cracks and rendering any surface moisture resistance and draught proof. The closed cell foam has a low water vapour transmission properties and also inhibits ingress of moisture. The excellent adhesion of the sprayed material makes mechanical fastening redundant. The low density of the materials adds little weight to overall loading. The firm bonding to the substrate can also add significantly to reducing vibration of thin membrane roofs and the structural strength of a building itself.
...more

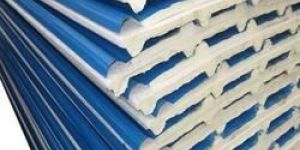

Polyurethane Foam PUF Panels
Pre-fabricated Polyurethane Sandwich Panels The Lloyd Panel System meets every single requirement to today's Modern Cold storage, Controlled Atmosphere Storage, Pack House, Shelters & Clean Room Enclosure, backed by Lloyd Insulations the acknowledge leader in Thermal Insulation System and Turkey Solutions.The Lloyd Panel System consist of pre-fabricated panels made to very tight specification, and full range of accessories required, insulated doors, pressure relief values, sealants, mastics, PVC and aluminium profiles, ceiling suspensions and plastic components.Lloyd Panels manufactured in semi automated machine by injecting rigid polyurethane foam in between the inner and outer steel sheets. The foaming is by high pressure foaming equipment. The press can handle six panels at a time of different thickness. The plant is ISO : 9001 certified with latest testing equipment including thermal conductivity testing. The plant can manufacture approximate two lakh square metre of sandwich panel per annum. A high strength to weight ratio, with significant savings in steel work and load bearing foundations, allowing large spans to be constructed with no intermediate columns. Dimensional stability. Maintenance-free surface. High pressure foaming machine for PUF Insulation High thermal efficiency, ensure low heat transmission resulting in energy savings No deterioration of thermal efficiency over time. Space Saving Versatile and Lightweight
...more

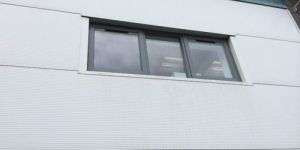

Metal Roofing Profile
buildings. It is provided with a precisely engineered “Rib and Flute” design to ensure wide spanning and quick recovery after being subjected to excessive load. Lloydtile, in addition to Superdeck, offers new dimensions to architectural aesthetics and frees the designer of monotonous standard Trapezoidal design. Lloyd Kliplock and Lloyd Standing Seam are laterally trapezoid profile with wide spanning and excellent water shedding capacities. The bold and broad flat outline makes a strong and striking appearance. Lloyd Superdeck is a high depth roofing metaldeck profile. Lloyd light groove is a lightly grooved sheet that can be used for plain facings. Lloyddeck, Superdeck, Lloydtile, Lloyd Light Groove, Lloydkliplock & Standing Seam profiles are available in following standard finishes:- V Pre-painted zincalume galvalume steel with super Polyester, Silicon Polyester or Fluropolymer (PVF2) coating. Pre-painted galvanized steel with polyester coating (SMP RMP). Bare zincalume galvanized finishes.
...more
Lrb Rockwool Mattress
Rockloyd is a precisely engineered Resin Bonded Fibrous Insulation to offer maximum resistance to heat passage. Rockloyd fibres are spun from selected rocks, melted at 1600°c and blended to a carefully adjustment chemical composition. Its centrifugally spun fibres have a diameter 120th that of human hair which are felted using State of the Art Technology into bonded and cured mattress to optimum density and resilience. Over 25million sq.mts. Rockloyd, like all scientifically processed fibrous insulants is composed of fibres which are laid in the optimum configuration to offer maximum resistance to heat flow. To retain these exceptional properties up to the point of end-use, fibres are interlocked by lightly bonding them together using a thermosetting binder. Subsequently, matts are factory stitched to specified wire mesh using a continuous stitching machine to permit a ready-to-use configuration.
...more

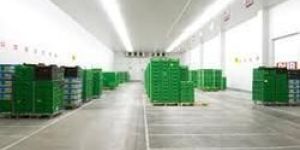

Controlled Atmosphere Cold Storage
As a pioneer and market leaders for specialized construction solutions to major Projects, LII has continuously made available relevant technologies and required infra-structure to provide total service demanded by large Projects. Our Accent on Energy Conservation at every stage and our expertise in Resource Management has shaped our position in the Insulation Industry. Our Leadership status and Industry Expertise has made us Market Leaders with over 70% market share. Right from inception of our company i.e. in the year 1956, we have been involved in Cold store insulation work. Initially, we were employed by our various clients for insulation of Conventional Cold Stores. With the help of this experience we always upgraded construction practice for Cold Chains and introduced various new concepts in India. As of today, we have a separate division to work on Post Harvest Management of Horticultural includes Design Solutions, Supply,
...more

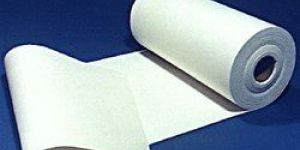

ceramic paper
Supercera Blanket is a refractory fibre needled mat made without binder from Supercera fibres the only super-spun double needled fibre in the country today. Supercera RTZ and HTZ Blankets are zirconoca stabilized and are suitable or use upto 1260°c and 1425°c respectively.Both blankets have excellent resistance to most chemicals. If wet by oil or water, thermal and physical properties are fully restored upon drying. Low Shrinkage at elevated temperature - due to their excellent Thermal Stability. Low Heat Storage Both blanket store approximately 95% less heat than dense firebrick and approximately 75% less heat than insulating firebrick a property of significant importance in the operation of periodic kilns furnaces. Good Cold strength. Excellent Hot strength. Thermal stock Resistance due to the flexible matrix of Supercera, extreme temperature change do not alter its ability to physically stay in place and perform at higher levels. The products are not wetted by molten non-ferrous metals. If wet by oil, water or steam, Thermal and physical properties will be fully resorted after burn out or drying.
...more
Ceramic Fiber Insulation
Supercera Blanket is a refractory fibre needled mat made without binder from Supercera fibres the only super-spun double needled fibre in the country today. Supercera RTZ and HTZ Blankets are zirconoca stabilized and are suitable or use upto 1260°c and 1425°c respectively.
...more
Lloyd PU Panel System
Rockloyd Building Insulation
