M/s. DURA IMPEX Andheri West, Mumbai, Maharashtra

The Zero Degree Chamber is specially used to condition the R-PVC pipes at 0 Deg. C. For impact testing as per IS 4985 standard.A true material comparison is possible only when property values are determined by identical test methods under identical conditons. Generally speaking, physical and mechanical properties of plastics and electrical insulating material are affected by temperature and humidity. Plastic materials tested above room temperature will yield relatively higher impact strength and lower tensile strength and modulus. Obviously, in order to make reliable comparisons of different materials and test results obtained by different laboratories, it is necessary to establish standard conditions of temperature and humidity for testing.

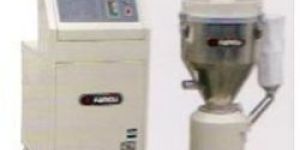

ApplicationThis Hopper Loader is widely applied for automatic conveying powder or powder/granules mixing in the industries such as plastic, rubber, chemical, color, food, medicine etc. The filter property is excellent even for the mixing material of CaCO3(Calcium Carbonate) and PVC in which the contant of CaCO3 is less than 50 %.

The UNIVERSAL TENSILE TESTER is used for determining the ability of the material to withstand forces that tend to pull it apart & to determine to what extent the material stretches before breaking.Different type of plastic materials are often compared on the basis of TENSILE, FLEXURAL STRENGTH, ELONGATION, & TENSILE MODULUS DATA. Many plastics are very sensitive to the rate of straining and environmental conditions. The tensile property data are more useful in preferential selection of a particular type of plastic from a large group of plastic materials.Tests for tensile strength (stress at fracture of the specimen) and elongation (extension of material under load of plastics. The first provides a measure of the breaking strength of the material but is radically affected by the rate of loading and the ambient temperatuere. Tensile strength in kgf/cm sq. = load (kgf) / a x b (cm sq.) Elongation % = (L2-L1) x 100/L1. Standard test methods : BS 2782 method 301, ASTM D 638, ISO R527.

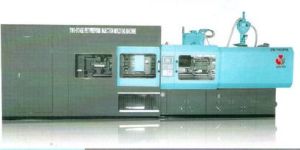

MACHINE RANGE – 165 TONS TO 385 TONSSHOT WEIGHT – 895 GMS TO 4997 GMS This PM-series is double stage (seperate screw for pre-plasticizing & piston for Injection) pre-form machine which ensures low A.A.levels and very high throughout with outstanding melt quality. PM series provide the high performance of the injection unit and precise for high productivity with help of the robotic handling system to reduce the cycle time. Aside from the injection machine, the pre-form system is a turnkey production system including mold, robotic handling system, granule drying system, re-circulating air conditioning for the mold, and refrigeration system.

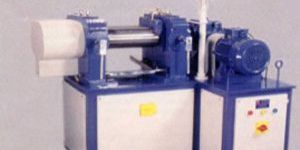

The Two Roll Mill with fixed speed and friction is laid out for constant working conditions. The machine is available with roll diameters of 150 mm.The rolls are driven by a geared AC-Motor. The rear roll is driven by spur gears for a constant friction. Modifications for speed and friction are possible to meet individual requirements within certain steps.The rolls are aligned in rigid frames. The rear roll is in a fixed position for good access to the rolls. The front roll can be moved with a hand shaft. The central adjustment ensures parallel movement. The working width is laid out for both plastics and rubber processing.The dirve system is equipped with a knee-actuated switch for emergency stop. Opening to the necessary safety distance can be done by hand however without turning of the rear roll.The rolls are made of corrosion resistant steel and surface hardened. A central lubrication system combined with high - temperature resistant seal rings allow low maintenance operation. The electrical heating energy is provided by cartiridge. Heat distribution is controlled in three different zones to equalize differences over the roll.The machine is equipped with a contactor control system. Roll tempoerature will be controlled with digital controllers. With the operating units mounted in an adjustable panel the machine can be operated from both sides.Electric and drive system are incorporated in the machine frame with easy access for maintenance. The machine will be delivered with integrated controls and needs supply connections only.

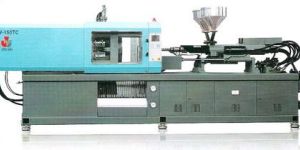

MACHINE RANGE – 150 TONS TO 380 TONSSHOT WEIGHT – 91 GMS TO 294 GMS The TC-series, “multi-shot / multi-color” machines, are equipped with multiple injection units. For high production volumes, the series provide core or mold rotary tables with 180 degree rotation produces “multi shot / multi color” parts in one machine and provide mold support, guidance, and open / close movement in a rigid and long lasting design. The series have precise position setting and excellent functions to promote market, including electronic keyboards / switches , ball pen ( 24 cav.), tooth brushes (12 cav.) and the handles for tools.

Product Range Dia 16mm 630 mm Output : 70KgsHr.- 700 KgsHr. SJSZ series of conical twin-screw extruder is a super-twin -conical extruder, which is developed and manufactured by German Technology . Machines of this series all are provided with features of uniform plastication, pugging and agglomeration, reliable quality, high production, wide application range, long service life and so on. Equipped with the company�s various mould tools and down-stream auxiliary equipment, you can directly produce PVC pipes.

SJSZ series of conical twin-screw extruder is a super-twin -conical extruder, which is developed and manufactured by German Technology . Machines of this series all are provided with features of uniform plastication, pugging and agglomeration, reliable quality, high production, wide application range, long service life and so on. Equipped with the company’s various mould tools and down-stream auxiliary equipment, you can directly produce PVC pipes.Machines of this series are also provided with two kinds of electric control system: normal control and microcomputer control; and two kinds of main drive system: direct-current speed control and frequency conversion speed control. You may choose any of them. Main features: High performance decelerating torque gear box. High precision, wide speed-regulation, forced proportional lengthened feeding system. Reliable & efficient vacuum air exhaust system Cyclic oil heating device for screw core which is convenient to control temperature. High performance, low noise air cooling system. Perfect & accurate automatic temperature -control system. Precise & stable speed-adjustment system.

Making full use of extruding capacity of the extruder.Producing smaller pipe diameter with double capacity. Double Strand production line adopt advance German Technology . It reaches the perfect match of internal quality & appearance , realizing the high efficiency brought by “One Line Two Pipes.”

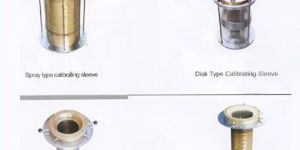

We may provide the most suitable tubing sizing sleeves according to different plastic tubing. Main features : High thermal conductivity High abrasive resistance Superior surface smoothness

The cf-series are center force and external acting five points double toggle clamping to give long efficiency and reliable movement. This series machines with large inner tie-rod distance and thickened.

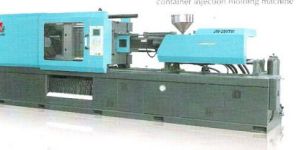

MACHINE RANGE – 60 TONS TO 500 TONSSHOT WEIGHT – 106 GMS TO 2569 GMS The TW-series allow for thin wall molding of multi-cavities by high-cycle molding equipped with accumulator injection circuit and controlled by the servo valve of high performance. The series provide high rigidity mold clamping unit warranting a stiff frames as well as minimum platen deflection, high speed mold opening / closing and dual functions. Cycle time are reduced to a minimum with the help of a high mixing and plasticizing screw allowing for plasticizing in a shorter time.

MACHINE RANGE – 60 TONS TO 250 TONSSHOT WEIGHT – 132 GMS TO 1190 GMS The TS- series machines are specially equipped for thermoset processing. These series machines are exclusively designed for the thermosetting resins and offer the plasticizing screw designed with zero-compression and without a non return value. In addition to providing good venting characteristics, these series machines offers the stable temperature control for barrel and smooth material loading. These series machines are widely suitable for BMC. Bakelite, Urea and so on.

Material : PP-R

Color : White, Grey, Green

Material : PP-R and Copper

Color : White, Grey, Green

Material : PP-R and Copper

Color : White, Grey, Green

Material : PP-R

Color : White, Grey, Green

Material : PP-R and Copper

Color : White, Grey, Green

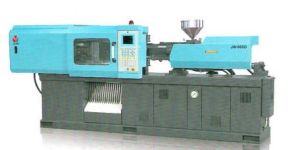

MACHINE RANGE – 60 TONS TO 500 TONS SHOT WEIGHT – 106 GMS TO 2569 GMS The SD-series are easy to operate machines with versatility and reliability. This series machines provide the thickened platens of box like structure and the design without bracket on the rear platen will make the tie-bars unbroken. The flexible design on the front and rear nuts of tie-bars can avoid the stress and add the wear resistance. This series machines use 4-cylinders design of injection unit and injection piston with the twin-end support can enhance the linear ability movement. These series machines are suitable for automotive, electronics, computer peripherals, housewares and sporting goods etc.

Range from 20mm to 630mm. Microprocessor base control for easy operations and alarm indications. Quick changeover of tool sets reduces time consumption and increases productivity. Infrared heating chamber with air circulation system to control same temperature around the heating zone with digital temperature controller. Auto rotating system in both the direction for proper heating of pipe before shaping. Air pressure accumulator with pressure guage to control the pressure. High quality solenoids & hydraulics. High quality aluminium alloy die set with texturing and hard chrome plated parts. Low power consumption. Powerful pipe ejection system after socketing. compact design structure which gives more surrounding space.

Range from 20mm to 630mm. . Microprocessor base control for easy operations and alarm indications. . Quick changeover of tool sets reduces time consumption and increases productivity. . infrared heating chamber with air circulation system to control same temperature around the heating zone with digital temperature controller. . Auto rotating system in both the direction for proper heating of pipe before shaping. . Air pressure accumulator with pressure guage to control the pressure. . High quality solenoids & hydraulics. . High quality aluminium alloy die set with texturing and hard chrome plated parts. . Low power consumption. . Powerful pipe ejection system after socketing. compact design structure which gives more surrounding space.

We offer Screws and Barrels for Extrusion and Injection blow Machines

Saddle welding machine is suitable for welding branch pipes on the large size pipes. With replacement of different core molds, assembly of pipes of different specifications can be achieved.
