Machinery and Spares Vikhroli, Mumbai, Maharashtra

'YSD' - HYDRAULIC | NC PRESS BRAKE ARE EQUIPPED WITH TORSION BAR TO ENSURE THE   PARALLELISM & SYNCHRONISM BETWEEN THE BEAMS.   MANUALLY ADJUSTABLE CROWNING ON THE TABLE IS A OUTSTANDING FEATURE FOR ALL PPT/PPTK SERIES MACHINES.   THE HYDRAULICS AND  ALL THE OTHER MAIN COMPONENTS ARE OF RENOWNED FAMOUS BRANDS LIKE REXROTH / VICKERS / MERKEL ETC. THE MACHINES ARE SUPPLED WITH HARDENED GROWND PUNCH &  MULTI V DIE. TOOLING  CAN BE SUPPLED AS PER CLIENTS REQUIRMENT AS A OPTIONAL

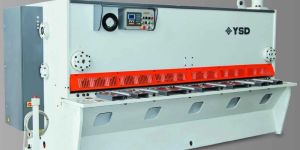

‘YSD’ HYDRAULIC | NC | CNC VARIABLE RAKE ANGLE GUILLOTINE SHEARING MACHINES ARE MANUFACTURED WITH DESIGN & TECHNICAL KNOW HOW FROM LVD, BELGIUM. THE MAIN FRAMES ARE STRESS RELIEVED AFTER FABRICATION TO ENSURE MINIMAL DEFLECTION UNDER LOAD. THE HYDRAULIC POWER PACKS ARE MANUFACTURED IN HOUSE BY YSD, USING RELIABLE HYDRAULICS SUCH AS REXROTH / VICKERS / BOSCH VALVES. A INTERNAL GEAR PUMP OF NACHI / VOITH IS USED WHICH KEEPS THE OIL TEMPERATURE UNDER CHECK AND IS ALMOST SOUNDLESS. THE SEALS FITTED ARE OF NOK JAPAN OR MERKEL GERMANY WHICH HAVE A VERY LONG LIFE. HARDENED STEEL BALLS ARE FITTED ON THE TABLE FOR EASE OF HANDLING THE PLATES.THE BLADES ARE 4 EDGED    SUITABLE FOR MILD STEEL & STAINLESS STEEL AS PER THE RATED CAPACITY OF THE MACHINE.

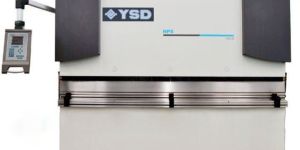

‘YSD’ HPC Series CNC Press Brake With Delam Da 65w Controller, 4 Axis [Y1, Y2, V, X] With Dac Set of & Hardened and Ground Punch with Multi ‘V’ Die  4 Axis Y1, Y2, X, R Controlled With Delem Da 52 Controller Adjustable Crowning On Work Table Hand Wheel & Micro Adjustment on Crowning Table.        Sailent Features : One Set LVD Classic Style Punch  Multi ‘V’ Die  2 Nos. Front Support Arms   Fence Guard On Throat And Rear Side Of Machine ØFoot Peddle With Emergency  Stopper  ‘T’ Slot In The Centre Of Working Table To Fixing Single ‘V’ Die Cooling Fans Fitted In Electrical Cabinet  User Manual In English

“ .

Condition : New

Rated Power : 3.7 kw

Country of Origin : Made in India

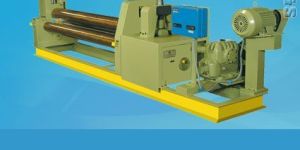

'Tee' Electro Mechanical Pyramid Type Plate Bending Machines Are The Most Popular Plate Bending Machines Working In India With Over A Thousand Machines In Use.   They Are Designed For Production Of Cylindrial Shells Used For Pipes, Storage Tanks, Chimneys, Pressure Vessels, Etc.    These Heavy Duty Plate Bending Machines Employ The Orthodox Three Roller Pyramid Principle. Bottom Rolls Are Fixed And Are Driven By A System Of Gears And Worm Reduction Gear Box Whereas The Top Roll Has A Vertical Up And Down Movement Through   (A) Screws Adjusted Manually In Model Tph.   (B) Separate Motor In Model Tpvp.    The Housings Are Steel Fabricated With Large Bearing Surface Area. The Rolls Are Of Wear Resistant Forged Steel And Are. Amply Dimensioned To Keep The Top Roll Horizontal When The Formrd Shell Is To Be Extracted By Retracting The Trunion. Horizontal Grooves Are Provided Throughout The Length, Of Rolls For Additional Gripping And Correct Feeding. Indicators Are Provided At Both Ends Correct Feeding. Indicators Are Provided At Both Ends For Correct Top Roll Pressure. (For Model Tpvp) For Conical Bending The Top Roll Can Be Inclined Disengaging The Clutch At One End Of The Worm Gears.

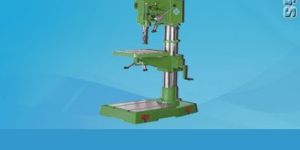

Design Features :    Main Spindle Made From Alloy Steel With 6 Slots Is Machined By Hobber Machine And Mt-Bore Is Provided Internally Grinded By Internal Grinding Machine. Provides 8 Speeds By Accurate Balanced Pairs Of Cone Pulleys, Which Runs On Two Ball Bearings Spindle Sleeve Is Properly Grinded And Hardened Is Guided In Honned, Drill Head Bore Spindle Is Mounted On Five Ball & Roller Bearing For Smooth And Accurate Running By Simple Adjustment Of Only Tapper Wedge Facility To Set Drill Head On Arm Guide Way Top Cover Provided With Window For Changing Gears And Setting V-Belt For Desired R.P.M. Lever Facility For V-Belt Tension Gears Made From Best Quality Material Are Helical Teethed On Imported Hobbing Machine For Smooth And Noiseless Running. Piller & Other Parts Being Provided In Machine Are Ground And Finished By Wmw German Make Grinding Machine. Gradations Are Provided On Protector For Swivelling Of Radial Arm To Required Degree. Automatic Adjustable Depth Control. Auto As Well As Manual Feeds.

Salient Features:   Proportioned Column For Rigidity Of Machine. Rough & Smooth Feed Available By Manual And Power Feed. Provision Of Window For Change Of Gear On Top Cover. Quill Spacer Made Of Mild Steel. Main Spindle Made Of En Steel With 6 Slots. 8 Speed In Either Direction. Grounded Parts Finished On Importtant Grinding Machine. Major Parts Casting Are Of Standard Grade. Head Stock Is Bored On Imported Boring Machine. Spindle Sleeve Is Properly Guided In Honed Drill Bore On 6 Ball & Roller Bearings For Smooth & Accurate Running.

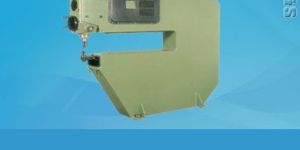

The PARADISE PN series Sheet Metal Nibbing Machine is a rugged, sturdy and reliable multipurpose machine capable of sheet cuting & forming operations. Its verstility is best expressed by terming it the Sheet Metal Workers lathe. The working principle on which nibbling operates is hte sheet is cut or formed between the fast reciprocating motion of an upper tool (powered by an electric motor and driven by an ecentric crank) and a stationery lower tool, by progressive punching, as the sheet is fed.

 Salient Features:           • Applicable for single and progressive die application in blanking, piercing, bending, forming,             • interlink with transfer unit         • Rigid frame with less deflection         • Wide bolster and side area         • These presses are most suitable for automobile components & white good industry

Type : C Frame

Capacity : 110 - 300 TF

'SAMSON' Guillotine Sharing Machines with Motorised Back Gauge and Quick Set Device for Blade Clearance.   Electricals Control Panel Set of 4 Blades for MS Cutting Stroke Counter Emergency Stopped Hardened Steel Balls on Table for Easy Movement of Sheet Finger Guard Right Angle Gauge

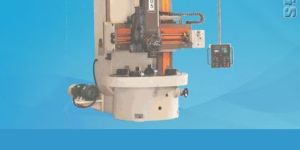

'Samson' Single Column Vertical Turret Lathes Are Versitile Machine Which Are Suitable For Machining Parts For Almost Every Type Of Industry. Boring, Tapering, Surfaceing As Well As Grooving & Cutting Off Jobs Can Be Carried Out, On These Machine. The Table Adopts A Heavy Duty Thrust Ball Bearings With Accuracy For Rolling Gudeways For The Spindle Rotation Nn 30 Type Double Row Cylindrical Roller Bearings Are Used To Enhance The Accuracy In Rotary Precision And It's Load Capacity Of The Table. The Cross Slide Is Fitted With A Pentagonal Turret And Side Head (Optional) Can Be Supplied With A Square Turret. The Electrical Control Panel Is Controlled By A  For Higher Reliability. The Horizontal Trailing Wires Used Are From Lgus Germany And The Case Of The Push Button Station Is Meccano Germany. The Overall Appearance Is Very Proportionate And Beautiful And Is User Friendly.

SAMSON’ DRILLING & TAPPING MACHINESMODELS : ZS 40 PS & ZS 40 APS SALIENT FEATURES :   VARIABLE SPEEDS FOR PROCESSING DIFFERENT MATERIALS  HEAD ROTATES 360ºAND TILTS +-45º  FREE MOVEMENT OF HEAD AND TABLE  RIGID CONSTRUCTION  SPINDLE AUTOFEEDS   FEED IS EASY TO VARY

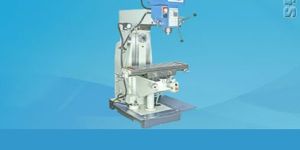

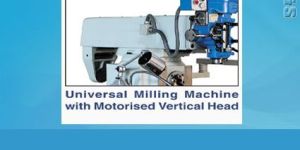

FEATURES :   VERSATILE MACHINE FOR DRILLING MILLING AND TAPPING HIGH SPINDLE SPEEDS  AUTO FEED CAN BE OPTIONALLY FITTED ON X AXIS

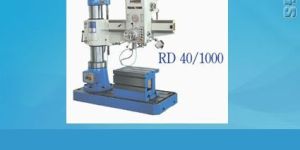

“Samson” Heavy Duty All Geared Radial Drilling Machines. Salient Features: For Drilling, Reaming And Tapping. High Quality Fine Grain Cast-Iron And Heavy-Duty Ribbing Ensures Low Vibration. Oil Bath Lubricated Gear Box With Hardened Precision Ground Cr-Ni Steel Gears.

Sailent Features:   Wheel Head Spindle: Is Made From En-9 Steel & Is Duly Hardened and Ground to Close Tolerances. It Runs In Prcision Taper Roller Bearings or Phospher Bronze Bushes Control Wheel Head Spindle: Is Made From En-9 Steel & Is Ground to Close Tolerance. It Runs In Precision Taper Roller Bearings. It Can Be Swivelled Upto 5°/

The PARADISE PN series Sheet Metal Nibbing Machine is a rugged, sturdy and reliable multipurpose machine capable of sheet cuting & forming operations. Its verstility is best expressed by terming it the Sheet Metal Workers lathe. The working principle on which nibbling operates is hte sheet is cut or formed between the fast reciprocating motion of an upper tool (powered by an electric motor and driven by an ecentric crank) and a stationery lower tool, by progressive punching, as the sheet is fed.

 “OMEGA” HEAVY DUTY ALL GEARED PRECISION SLOTTING MACHINES SAILENT FEATURES :   2 RAM SPEED QUICK RETURN MOTION FRICTION CLUTCH & ROTARY INDEXING TABLE

'OMEGA' Precision surface grinder are manufactured by incorporating modern techiques and ensure absolute vibration-free and nolseless working. The grinding accuracy of the machine are within easy reach of the opertor. The base is on heavy duty cast iron,which further ensures vibration-free service. All components are precisely manufactured to acheive maximum accuracy, which is invariably expected from a grinding machine.

Automatic Grade : Automatic

Power : 7.5 kW

Voltage : 220 to 380 V

Condition : New

These Heavy Duty Plate Bending Machines Employ The Orthodox Three Roller Pyramid Principle. Bottom Rolls Are Fixed And Are Driven By A System Of Gears And Worm Reduction Gear Box Whereas The Top Roll Has A Vertical Up And Down Movement Through. The Housings Are Steel Fabricated With Large Bearing Surface Area. The Rolls Are Of Wear Resistant Forged Steel And Are. Amply Dimensioned To Keep The Top Roll Horizontal When The Formrd Shell Is To Be Extracted By Retracting The Trunion. Horizontal Grooves Are Provided Throughout The Length, Of Rolls For Additional Gripping And Correct Feeding. Indicators Are Provided At Both Ends Correct Feeding. Indicators Are Provided At Both Ends For Correct Top Roll Pressure.

  “Kent” Precision Hydraulic Surface Grinding Machines Sailent Features: Structure Uses High Grade Of Cast Iron, Is Internally Stress Relieved And Designed To Ensure Rigidity And To Stabilize Accuracy Dynamically Balanced Cartridge Spindle Are Totally Enclosed And Grease Lubricated To Increase Life Of The Spindle High Degree Of Precision & Tolerance Regarding Parallelism, Squareness, Flatness & Spindle Runout Simple, User Friendly Controls For Easy Operation Turcite Lined X & Z Guide Ways For Smooth Operation Auto Down feed Is Provided With A Ratchet Wheel Mechanism Controlled By A Hydraulic Cylinder (For D Models)

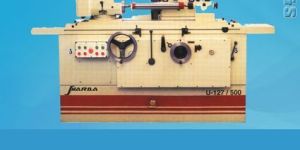

Sharda - possess long and outstanding experience. In producting high precision Cylindrical Grinding Machines, their endeavour is put up dedicated efforts concentrating the latest technology available and to offer result oriented product to the user which can yield the reward.  These machines are emerged out of Proven design, use of selected materials and implementation of    proper manufacturing techniques and skill.  These machines are capable to achieves a very high degree of accuracy of roundness and cylindricity on    job.They are suitable for tool room and production jobs to carry out cylindrical, face internal grinding  operations.
