Madhu Subtronic Components Private Limited Grant Road, Mumbai, Maharashtra

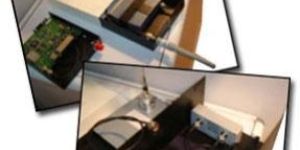

MES Weatherproof Enclosures are suitable for harsh outdoor Environments or indoor industrial applications. These can be used for outdoor wireless communication systems, security systems, hotspot applications, protection of equipment from corrosive environment and theft or damage. It has also even a place to house Surge Arrestor & Amplifier. We can do custom built enclosures based on project requirements for various types of Wireless Access Points.

Feature : Compact Weatherproof construction • Heavy Duty & Rugged • Durable Silver Gray UV-inhibited Powder coated

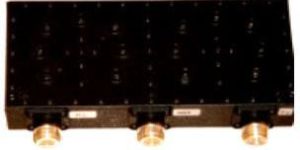

Designed as rugged, yet low cost UMTS Duplexer, -MES 12000 UN offers excellent electrical charact eristics for 3G UMTS applications. The Insertion Loss in each direction is below 0.3 dB. The Isolation between teo channels is better than 65 dB. All three ports features N (F) Connectors.

Compact desig Aesthetic look High Insulation Positive locking Counting capacity up to 15 turns Least count 1 part in 500 for ten turns potentiometer High temperature thermoplastic materials Standard model for 6.35 mm shaft potentiometer M3 Allenkey screw for firm fitting with potentiometer's shaft High contrast numerical for easy readability at arms length distance. No backlash, Shaft Directly mounted on one piece moulded bush.

MES 334011 YN series high performance Yagi Antennas features high gain and is ideally suited for directional applications operating in TETRA 340~400 MHz frequency band. The unique design of this Antenna allows it to be installed for either vertical or horizontal polarization.

MES 33408 ODN series high performance 8.0 dBi Omni Directional Antennas are specially designed for TETRA applications in 340~400 MHz frequency band. Heavy duty fiberglass radome is durable enough to stand up to over 60 msec wind loads. All metal parts in the antenna are DC-grounded to reduce the noise caused by atmospherical discharge. No frequency adjustment is required. Mounting is easy with two extruded aluminum Ubolts which secure the antenna firmly to mast.

MES Lightning Protectors are coaxial devices using N Female connection interfaces. These can operate at current and future wireless communication bands (2G, 3G�) Maximum VSWR is less than 1.20 in the working frequency band. Our Lightning Protectors are silver plated with a Non-Magnetic BBR* over-plating to provide protection against corrosion. (*BBR is a non-magnetic material which provides a superior non-tarnishing surface). Our Lightning Protectors have dust and water protection complying IP67 for indoor and outdoor applications. These are reversible and can be used in either directions. These have been successfully tested under vibration, salt spray and thermal shock conditions.

Features : May pass low residual voltage of less than 15 volt s • Do not pass DC signals and thus incorporate a long stub element

MES 4000 series compact Preselectors are typically extruded Aluminum four cavity bandpass filters using Multi window configuration to realise high selectivity. These are used when additional filtering is required in receive path, typically in congested RF environment. It minimises out of band interference. The Preselectors are compact and offer stable response over extreme operating temperature range. Custom built Preselectors are designed in addition to industry standard designs.

Features : Low Insertion Loss • Low Ripple in Pass Bandwidth • High Selectivity

MES 64927 SDN series Parabolic Dish Antennas provide coverage in ISM band of 4900-5000 MHz frequencies with a VSWR performance of less than 1.5:1.These are suitable for long range operation and can be configured for either horizontal or vertical polarization. The reflector dish of these antennas is constructed from high quality aluminum which gives them superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics.

Compact Design, Good Repeatability Low TR Resistance Wire Non Magnetic Stainless Steel Shaft Nickel Plated Brass Brush Gold Plated Terminals Specially Selected Wiper Material Reinforced Eng. Plastic Housing

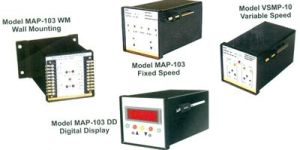

Use of 100% Electrical and Mechanical angle of rotation i.e. from zero to full Resistance Value of Potentiometer. Reliable Electronic circuit prevents Mechanical damage to Potentiometer at extreme end position, Unambiguous UpDown operations, Overload sensing circuit activates upon very fast inching of Potentiometer, prevents damage, Optional Potentiometer wattage 2, 3 or 5 Watt for ten turns, 1.5 Watt for five turns and 1 or 1.5 Watts for three turns or as per specific requirement, Multiple number of potentiometers can be fitted to operate with one motor, Resistance values of potentiometer from 100 to 50K Ohm,

MES 3800100DC X series Broadband100 Watts Directional Couplers are designed to decouple a defined part of the RF signal off the main through line. This permits signal distribution of Wireless Systems with the required Signal strength. A Coupler consists of a pair of strip lines approximately a Quarter wavelength long configured to provide the desired coupling These are used in GSM, CDMA Indoor Distribution System WCDMA BAse Stations, Repeaters etc.

Operating in UHF band, it provides interference free wireless data network to existing mobile users having voice transceivers preinstalled in their vehicles. The unit is compact, light weight, rugged and adapted for harsh mobile environment. It underwent rigorous field trials including operation check at 70°C. 215 units are already supplied to an Australian company.

THE Type-MPP are constructed with metalized polypropylene film dielectric , tinned copper wire leads and epoxy resin coating , in non-inductive type .

THE Type-MPM are constructed with special series metalized polypropylene film dielectric ,tinned copper wire leads and flame retardant epoxy resin coating , in non-inductive type.

THE Type-MPT are constructed with metalized polypropylene film dielectric, tin copper wire leads, outer wrapped with polyester film tape and ends sealed with epoxy resin , in non-inductive type.

THE Type-MMB is a micro-miniature capacitor, composed leads and epoxy resin coating in non-inductive type. of ultra-thin metallized polyester film made available by ourunique engineering method to meet the needs of miniaturization.

THE Type-MET are constructed with metalized polyester film dielectric, copper-ply wire leads , outer wrapped with polyester film tape and ends sealed with epoxy resin , in non-inductive type.

THE Type-MEF are constructed with metalized polyester film dielectric , copper-ply wire leads and epoxy resin coating , in non-inductive type

THE Type-MEA are constructed with metalized polyester film dielectric, copper-ply wire leads , outer wrapped with polyester film tape and ends sealed with epoxy resin , in non-inductive type.

THE Type-EM7 are constructed with metalized polyester film dielectric ,copper-ply wire leads and epoxy resin coating , in inductive type

THE Type-DME are constructed with metalized polyester film dielectric , copper-ply wire leads and epoxy resin coating , in non-inductive type.

MES 64502 CM series CDMA 450 MHz Ceiling Mount Antennas deliver excellent performance in a small form factor. These are excellent choice for indoor coverage applications where an innocuous antenna is preferred. Ceiling Mount Antenna is ideal for indoor wireless coverage like Hotels, Airports, Conference rooms, Basements etc.

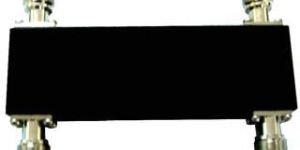

MES 3380100DC X series TETRA 100 Watts Directional Couplers are designed to decouple a defined part of the TETRA RF signal off the main throug line. This permits signal distribution of Wireless Systems with the required Signal strength. A Coupler consists of a pair of strip lines approximatley a Quarter wavelength long configured to provide the desired coupling

MES 64502 CM series CDMA 450 MHz Ceiling Mount Antennas deliver excellent performance in a small form factor. These are excellent choice for indoor coverage applications where an innocuous antenna is preferred.
