Magnet Switch Dealers in Mumbai

Get in touch with us for acquiring top of the line quality Side Mounted Magnetic Level Switch! The Level Switch that we deal in is designed with full perfection and is in accordance with the laid quality norms. Our Switches come in high and low level alarms, pump control having point level detection for wide range of liquids. They are robust in construction and are suitable for marine and industrial applications.

• Country of Origin: India
• Shape: Rounded
• Color: Grey
• Design: Standard
• AC & DC Voltage: 220V
• Mechanical Life: 1 Year
• No Of Switch: 2 Switch
• Switch Operation: ON/OFF
• Surface Finishing: Power Coated
• Packaging Type: Box
• Measuring Range: 0-1000
• Float Diameter: 38 DIA
• Temperature Range: 100
• Electrical Approvals: YES
• Operating Temperature: 120
• Thickness: 1.2mm
• Switch Positions: 2
• Working Pressure: 10
• Process Temperature: 150
• Application: For Water Tanks
• Material: Stainless Steel

BERNSTEIN offers electromechanical reed contact magnetic switches and electronic versions which operate according to the Hall and magnetoresistive principle. The electronic versions are characterised by their enhanced mechanical properties (extremely high resistance to vibration, shock or impact) and are not prone to wear in operation. Thanks to the use of only one single “active” component (reed contact), “traditional” electromechanical magnetic switches are extremely reliable in operation. The universal current capability and low procurement costs allow these switches to be used in a wide range of applications.

• Certification: Other
• Country of Origin: India
• Setting Range: Other
• Temperature: Other
• Application: Magnetic Use,Other
• Voltage: 200VDC,230VAC,Other
• Type: Reed Switches,Other
• Hole Diameter: 0-20mm
• Power: 0-5Amp,10-15Amp,5-10Amp,Other

Be it refrigerator or any other type of cooling equipment, this Side Mounted Magnetic Level Switch is designed by applying the leading-edge technological concepts. Also, this Side Mounted Magnetic Level Switch finds use in diverse types of humidifiers. We are a credible name to get premium Side Mounted Magnetic Level Switch. Construction : Float mounted at one end of rigid rod moves with change in level, magnetic capsule at other end of rod moves accordingly within fixed limits Switches contacts across the face changes accordingly Advantages : Simple and proven DesignOperates in most liquidMinimum maintenance Trouble-free operationLow cost of ownership Applications : High Low level signals for alarm Annuciation Safety interlock circuits Automatic Pump Control Solenoid Value Control Prevention of tank overflows Pump safeguard against dry running Order Details : Minimum Order Quantity : 50 PiecesPrice Range : Ranging From 1500 INR to 50,000 INR

  We have established ourselves as leading name in the field of Liquid Magnetic Float Level Switch in the market . Switching is achieved with the unique magnet system, giving snap-action latch-on switching. A switch mechanism is mounted inside the enclosure adjacent to the pressure tube. Vertical movement of the float magnet in the pressure tube simultaneously actuates the secondary and tertiary magnets in the switch mechanism to operate the contacts. Features: Snap-action Accurate mechanism Easy to maintain Other Details: Single, Bilevel and multilevel sensing with potential free contacts Float : SS-316/PU Foam/Poly propylene/BUNA-N Mounting : Flange, Threaded in MS / SS or TC joint Terminations: cable / DIN connectors / RTD head / weather proof or flame proof junction box Suitable upto 90 degree Applications: Scientific laboratory Research centres Chemical industries Technical Specifications: Float : S.S.316 or Teflon Coated or PP / PVDF/Monel Flange : Mini 1” NB to Any Size in C.S. or S.S.304 or S.S.316 or S.S. Lined C.S. Etc Reed Switch with Rhodium Contact SPST / SPDT . Rating : 0.5 Amp @ 240 VAC Switch Housing : Die Cast Aluminium, Weather Proof IP 65( Enclosure ) ( IS – 2147 )  Flame Proof to II A, II B ( IS – 2148 CMRSDhanbad Approved ) Operating Pressure : 10 Kg / Cm2Operating Temp : Maxi. 1000 C. Cable Entry : ½” NPT ( F ) OR ¾” ET ( F ) No of Switches : As Per Customer Requirement Stem Length : Up to 5 Meters

• Brand Name: DOMO
• Model Number: nHance VR6
• Place of Origin: Mumbai
• Color: Black

Technical specifications - nhance vr headset brand domo model name nhance vr6 type of virtual reality (vr) immersive vr for smartphones (inspired by google cardboard) type of lens aspherical optical lens left-right lens adjustment yes forward-backward lens adjustment no interpupillary distance adjustable between 66 mm to 45 mm diameter of lens 33.5 mm fov 94â° head strap yes adjustable strap yes camera access yes magnet yes phone aligner clamp yes phone holder compartment adjustable clamp type phone access window - left (for charging, 3.5mm jack, etc) yes phone access window - right (for charging, 3.5mm jack, etc) yes physical user interface to be used with hid devices such as game controllers or keyboard and mouse over bluetooth or via usb etc if supported by the smartphone certification confirms to ce & rohs standards control buttons yes, magnetic induction operating temperature range 0 â° c to 48 â° c auto power onoff no frame color black frame type plastic and rubber adjustable nosepad no other convenience features - aligner clamp holds phone in place with proper alignment - elastic head strap for perfect fit - rounded nose bridge - rubber padding for phone other features - magnetic switch to control the compatible smart phones - removable and replaceable lens - lens screws in and screws out - switch to adjust interpupillary distance compatible os android, ios, blackberry, windows.

We are a well-known Manufacturer and Exporter of top quality Top Mounted Magnetic Level Switch, which is manufactured as per industrial standards. Our range of Top Mounted Magnetic Level Switches is widely demanded among the clients due to its qualitative features. Further, these switches are available in different specifications to meet the requirements of the clients. Features Step less adjustment of switching point over entire range without interrupting the processNo shutdown require, can be installed or attended without process disruptionUp to 4 switch point availableOperates in most liquidLong and trouble free operationLow cost of maintenance

magnetic proximity switch * M18 cylindrical photoelectric sensors * Diffuse reflective * Retro reflective * Thru beam emitter receiver * Models with cable or connector arrangement

• Features: Durable nature, Low maintenance ,High strength Top performance, Excellent working .

• Brand Name: Sai Control
• Material: ABS
• Current Rating: 10A
• Surface treatment: Polished
• Grade of Protection: IP67
• Voltage: 0.5 V
• Operating Temperature: 0 to 55 Degree Celsius

Model MLS - 04 / MLS -16 magnetic level switches work on the principle of magnetic repulsion and therefore they are glandless and leak proof instruments. A permanent magnet fitted in the tail piece of the float repels another magnet inside the switch housing which in turn operates an SPDT microswitch. Microswitch contacts can be utilized for initiating audio-visual signals or pump control. SALIENT FEATURES : As our switches work on magnetic repulsion principle, they are glandless and leak proof. No power consumption. Internal assembly wirings are teflon insulated. Internal switch assembly bracket is of cast aluminium. Practically no maintenance is required except periodic cleaning. Suitable for 2.5" (65 mm) NB nozzle mounting, (for 63 mm dia float) and 2 " (51 MM) NB nozzle for 48 mm dia float. Maximum working temperature 250°C. (Process Temperature) Contact ratings of MICROSWITCH 5 AMPS at 230 VAC Resistive. Also available with Microswitich having current rating 10 A at 230 VAC Resistive. No of contacts : 1 change over as standard. Optional - 2 change over For high temperature upto 350°C (Process temperature) 1 number SPDT Reed switch with current rating 100 VA, max. switching current 5 Amps, max, switching voltage 230 VAC / 200 VDC Specific Gravity : Down to 0.75 CAUTION : Level Switches should not be used for direct starting / stopping of pumps. An external relay or contractor must always be used with the level switch. MLS-04/MLS-16 side mounted level switches must always be mounted horizontally with outgoing cable entry facing downwards. In case of high temperature Model MLS-04-92 HT/MLS-16-92HT and Low Temperature Models SMT-04-F82 and SMT-04-F92 arc suppressors/current limiting bias resistor must be provided depending on the load viz inductive or lamp load etc. to reduce the deteriorating effect of contacts due to surge voltages and high in-rush current TECHNICAL SPECIFICATION : Model (MLS-04-F82) or (MLS-04-F92S) side mounted magnetic Level Switch.Process connection- 82 or 92mm square flange with 4 bolt holes of 10/14mm dia on 82 or 92mm PCD respectively. Matenal of construction of flange, brackets, fulcrum screws, body and cover-SS 304(For wetted parts in SS 316 please denote by 16 instead of 04 in the Model). SS 316L float. 1 no SPDT microswitch having current rating 5 Amps at 230 VAC resistive. Differential between make and break-10mm approximately.Maximum working pressure 10 kg/sq.cm and temperature 250 deg C.Specific gravity down to 0.7.Cable entry neoprene gromet. Supplied with 1.5 Metre long 3-core PVC Cable. NB : In case of Model MLS-04-F92 flange size shall be 120 mm dia round flange with 4 bolt holes of 14 mm on 92 PCD. .

The Magnetic Level Switches, we supply in the market are highly appreciated for their high quality and performance in number of devices and equipments. Our Mounted Magnetic Level Switch is mounted on side of the nozzle of the tank. It flat position level changes with the level that helps the magnetic coupling change the switch contacts. Additionally, we are one of the most prominent Float Level Magnetic Switch Manufacturers in India. Model No.: MI-015 Side Mounted Magnetic Level Switches

This meter is more suitable for effluents,slurries, pulps, molasses & other highly corrosive liquids   Mounting:Top mounted, side mounted   Wetted parts:S.S.304.316   Process connection:Flange / screwed   Switch rating:2 / 5 Amp..230 V AC / 24 VDC

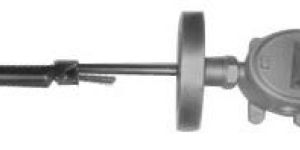

The Side Mounted Magnetic Level Switch system has a side mounted flange. The float is constructed from the material suiting the fluid in the tank. When the fluid level raises above the desired point the float prop up and actuates the magnetic switch which is kept inside the stem. The closure of the switch indicates the level rise or decrease. Side Mounted Magnetic Level Switch can operate in most fluids and it requires minimum maintenance. Applications : High Low level signals for alarm annunciation Safety interlock circuits Automatic Pump Control Solenoid Value Control Prevention of tank overflows Pump safeguard against dry running

A magnetic float moves with level, in a side mounted external chamber. Switches mounted externally respond to float movement.

Magnetic Float Operated Level Switches It is a reliable technique in Industry for point liquid level sensing and control in open or pressurized tank. MODEL NO. : FITZER / TLS / 50 Miniature Level Switches  Fitzer small size liquid switches features a small float displacement especially suitable for narrow or restricted area. SERIES : FITZER / LS / 10

• Brand Name: A Bill
• Frequency: 50-60 Hz
• Voltage: 220-240 V
• Surafce Finish: Polished
• Available Material: Stainless Steel,Plastic
• Power Source: Electric

"MAHALAXMI" make model MLS - 04 / MLS -16 magnetic level switches work on the principle of magnetic repulsion and therefore they are glandless and leak proof instruments. A permanent magnet fitted in the tail piece of the float repels another magnet inside the switch housing which in turn operates an SPDT microswitch. Microswitch contacts can be utilized for initiating audio-visual signals or pump control. Salient Features : As our switches work on magnetic repulsion principle, they are glandless and leak proof. No power consumption. Internal assembly wirings are teflon insulated. Internal switch assembly bracket is of cast aluminium. Practically no maintenance is required except periodic cleaning. Suitable for 2.5" (65 mm) NB nozzle mounting, (for 63 mm dia float) and 2 " (51 MM) NB nozzle for 48 mm dia float. Maximum working temperature 250°C. (Process Temperature) Contact ratings of MICROSWITCH 5 AMPS at 230 VAC Resistive. Also available with Microswitich having current rating 10 A at 230 VAC Resistive. No of contacts : 1 change over as standard. Optional - 2 change over For high temperature upto 350°C (Process temperature) 1 number SPDT Reed switch with current rating 100 VA, max. switching current 5 Amps, max, switching voltage 230 VAC / 200 VDC Specific Gravity : Down to 0.75   NOTE : Flanged connections as per ASA/BS/DIN or JIS available on request, as per customer requirement.   Caution : Level Switches should not be used for direct starting / stopping of pumps. An external relay or contractor must always be used with the level switch. MLS-04/MLS-16 side mounted level switches must always be mounted horizontally with outgoing cable entry facing downwards. In case of high temperature Model MLS-04-92 HT/MLS-16-92HT and Low Temperature Models SMT-04-F82 and SMT- 04-F92 arc suppressors/current limiting bias resistor must be provided depending on the load viz inductive or lamp load etc. to reduce the deteriorating effect of contacts due to surge voltages and high in-rush current.   Dimension Models : (MLS - 04 - F 82) & (MLS - 16 - F 82) (MLS - 04 - F 92 S) & (MLS - 04 - F 92 ) & (MLS - 16 - F92 S) & (MLS - 16 - F 92)   L=165mm, g=80mm, with d=49mm f Float.* Applicable only for model MLS - 04/16 - F92, when 62 mm dia float is used,L=240mm, g=135mm, with d=62mm f ALL DIMENSIONS ARE IN MILLIMETRE (TOLERANCE - ± 2 MM) Technical Specification : Mahalaxmi make Model (MLS-04-F82) or (MLS-04-F92S) side mounted magnetic Level Switch.Process connection- 82 or 92mm square flange with 4 bolt holes of 10/14mm dia on 82 or 92mm PCD respectively. Matenal of construction of flange, brackets, fulcrum screws, body and cover-SS 304(For wetted parts in SS 316 please denote by 16 instead of 04 in the Model). SS 316L float. 1 no SPDT microswitch having current rating 5 Amps at 230 VAC resistive. Differential between make and break-10mm approximately.Maximum working pressure 10 kg/sq.cm and temperature 250 deg C.Specific gravity down to 0.7.Cable entry neoprene gromet. Supplied with 1.5 Metre long 3-core PVC Cable.   NB : In case of Model MLS-04-F92 flange size shall be 120 mm dia round flange with 4 bolt holes of 14 mm on 92 PCD.   Optional : Microswitch with current rating 10 Amps at 230 VAC res. Adjustable differential upto approx-250 mm With 2 microswitches i.e., 2NO + 2NC
