PY-2 Permanent Magnetic Yoke
16,990 Per Piece
1 Piece (MOQ)

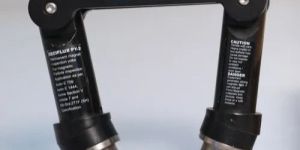

The PY-2, Permanent Magnetic Yoke, is a portable, permanent magnetic yoke designed for surface & subsurface cracks without requirement of electrical supply.Product Details: Rugged Construction for Reliable Magnetic Inspection Easy to use, Simple & Highly Economical No power requirements Lifting Capacity: Above 18 Kg, At 100 mm pole spacing Suitable for both Dry & Wet applications. Ideal in Petrochemical, Off Shore, Chemical Industries, etc. Small, Reliable & Strong Magnet with no requirement of Remagnetisation. Durable and for long life use. Technical Specifications: Field Strength: With poles together 7000 guass, In Centre of a 50mm air gap 400 guass Battery Operation: Not applicable Remagnetisation: Not required Additional Information: Item Code: PY-2 Packaging Details: Standard Packaging
magnetic yoke
Get Price Quote
It has magnetic field between two poles which can be handle easily. Magnetic Yoke has common application for weld inspection, remote locations and outdoor use. To detect vertical and horizontal discontinuities yoke need to be rotated 90 degree. Wet powders and magnetic powders are used by this system. This non destructive testing process detects discontinuities in ferrous materials.
Best Deals from Magnetic Yoke
magnetic yoke
Get Price Quote
1 Piece (MOQ)
0.0
View Profile
magnetic yoke
Get Price Quote

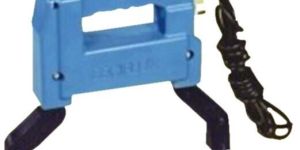

Portable Electro Magnetic ACHWDC Dual Magnetization Yoke is used for Magnetic Particle Inspection.EF-2Y EF-3Y Yoke Delivers AC and HWDC for surface or sub surface flaw detection. Articulating and double jointed legs of EF-2Y EF-3Y Yoke contour easily to any shape to assure good contact.
0.0
View Profile
magnetic yoke
Get Price Quote

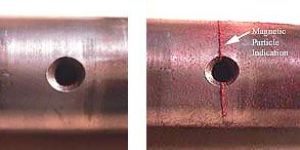

This NDE method is accomplished by inducing a magnetic field in a ferromagnetic material and then dusting the surface with iron particles (either dry or suspended in liquid). Surface and near-surface flaws produce magnetic poles or distort the magnetic field in such a way that the iron particles are attracted and concentrated. This produces a visible indication of defect on the surface of the material. The images below demonstrate a component before and after inspection using dry magnetic particles. We are conducting dry wet, visible fluorescent magnetic particle examination by yokeprod method for materials and weld joints during fabrications and in service for wide range of industries like steel plant, cement mills, nuclear power plant, petrochemical and fabrication shops.
