MANGOCAB CABLES Vakola, Mumbai, Maharashtra

Conductor Type : flexible

Number Of Core : multiple

Signal Cables are used in telecommunication industry. We. MANGOCAB CABLES make available to our clients superb quality of Signal Cables which have demand in the industry. In case of television optical cables are suitable. There are three sub categories in signal cables namely Ethernet Cables, Optical Cables and Submarine Communication Cable.

The Screened cable is a wire for transmission of electricity which is protected/ covered by an earthed wire mesh. Because of such shielding it is protected from interference of other electromagnetic signals. We, MANGOCAB CABLES supply best quality of Screened Cables which , because of it's unbeatable features are long lasting and thus economical. Screened cable or shielded cable is useful in security systems as they are protected from power frequency and radio frequency interference.

Standard : (IS 1554 Part-1) 1 100 Volts Grade Conductor : (IS 8130) High Conductivity Electrolytic grade Plain bright Annealed Copper Solid/ Stranded Conductors. Insulation : (IS 5831) : General Purpose PVC / XLPE / HR/ FRLS Grade Compound. Inner Sheath : (IS 5831) : Inner sheath shall be done by extrusion or PVC Tape binding that laid up cores shall not loose and prevent to water entering. Armouring : (IS 3975) Galvanized Steel Armourwire/ Flat Strip provides mechanicalsupport and also for earthling. For Single Core Cables Non Magnetic Material is Used that to Reduce magnetic Losses. Outer Sheath : (IS 5831) : Extruded General Purpose PVC / FRLS PVC is used according to IS standard. Application : Thermal Powerstations, Petrochemical Refineries, Steel &Cement Plants.Power Distribution Systems, Digital Control and Monitoring , lntormation Systems & Buildin Automation Systems i.e. High rise Buildins, Hospitals, Shopping Malls, Airports, etc.

Net working cable is one type of networking hardware. Networking cables are used to connect two network devices. Networking cable is also useful in connecting two or more computers. So that printers can be shared. In networking cables there are different types like coaxial cables, optical fiber cables, and twisted pair cables. They are applied depending upon the type of network.

standard : ( bs 5308 part I & part ii) conductor : (is 8130) high conductivity electrolytic grade annealed bare/tinned copper. Solid / stranded/ multi stranded conductor. insulation : (is 5831) : type a, b, & c general purpose pvc (poly vinyl chloride) hr/ fr/ lszh/ pe compound, or as per customer specification. colour coding : (pair/triad/quad) either colour coded or number printed , coloured ring marked or as per customer requirement. laying of pair/ triad /quad : pair/ triad/quad are laid up with suitable lay. Polyester film / melenex tape is provided to bind up laid up pair / triad / quad. shielding /screening : shielding/screening of thin layer of alluminum foil bonded to polyester film / tape with annealed tinned copper drain wire is installed to provide continuous contact with the shield/screen and allow to connection to ground. Tinning the drain wire reduces galvanic corrosion between drain and the shield / screen. inner sheath: (is 5831) : type “ c” (pvc) or type st -1 or st-2 ( hr/frls) the laid up pair/triad/quad after shielding/screening are provided with an inner sheath. This may be either extruded inner sheath or wrap with pvc tape. armouring : ( is 3975) armouring is applied over inner sheath, it may consist of galvanized round steel wire or galvanized flat steel strips. outer sheath : (is 5831) : type “ c” (pvc) or type st -1 or st-2 ( hr / frls) outer sheth is applied over armouring in case of armoured cables or over inner sheath , in case of unarmoured cables. The colour of outer sheaths is generally black/ blue/ red/ gray. The sheath material may be general purpose pvc/hr/ frls/lszh compound . application : data transmission, process control systems, communications systems etc. range : 0.5/ 0.75/1.0/1.5/2.5 sq mm up to 48 pair.

We are offering fire survival cables.

Feature : Precise,Durable,Fine quality,Reliable

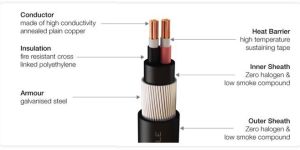

The construction of fire survival cables are different from the ordinary fire alarm cables. The copper conductor is wrapped with a specially designed heat barrier glass mica tape and fire resistant insulation layer is covered over glass mica tape, which resists the fire to reach conductor surface. The cable continues to remain into operation at high temperatures like 750°c and 950°c as per various conditions of operation and applications.

standard : ( is 1554 part-1 or bs 5308 part ii) conductor : (is 8130) high conductivity electrolytic grade annealed bare/tinned copper. Solid / stranded / multi stranded conductor. insulation : (is 5831) : heat resistant pvc / hr / frls laying of pair/ triad /quad : pair/ triad/quad are laid up with suitable lay. Polyester film/ melenex tape is provided to bind up laid up pair /triad / quad. inner sheath : (is 5831) fr pvc/frls pvc/lszh/zhfr armouring : ( is 3975) armouring is applied over inner sheath, it may consist of galvanized round steel wire or galvanized flat steel strips. outer sheath : (is 5831) fr pvc / frls pvc/ lszh / zhfr. The colour of outer sheaths is generally red. voltage rating : 300/500/600/1100 v application : building automation systems : high rise buildings, hospitals, shopping malls, airpots, power plants, chemical & processing industries etc. range : 0.5/ 0.75/1.0/1.5/2.5 sq mm up to 48 pair.

We, MANGOCAB CABLES are most reliable electrical Cable manufacturers in the industry. An electrical cable is an assembly made up of either one or more than one wires which are bundled together and run side by side carrying electric current . PVC/PE/XLPE is used for insulating wires. Electric cables are used for wide range of purposes like in electronic devices, long distance communication, in building wiring, in industry and so on.

Color : Black,Red,Yellow,Green,White

Application :  Home,Industrial

Voltage : 110V,220V,380V

Feature : Crack Free,Durable,Heat Resistant,High Ductility,High Tensile Strength,Quality Assured

Internal Material : Copper Steel

Outer Material :  Neoprene,Rubber Rubber,Silicone Rubber

Power :  1-3kw,3-6kw,6-9kw,9-12kw

Certification :  CE Certified,ISO 9001:2008

Applicable Standard : MIL - C- 17, BS 2316 Type & Size : Generally manufactured with impedance group of 50, 75 and confirming to RG series. Construction : Conductor - Solid / Standard(Copper bare / tinned) Copper covered steel. Insulation - Polyethylene HDPE / Celluar PE. Shielding - Alu. - Myler Tape or Copper braiding or both (as per requirement)Inner Sheath - General Purpose PVC / Heat Resistance (HR) Flame - Retardant Low Smoke (FRLS) Armour - Galvanized steel round wire / flat stripOuter Sheath - General Purpose PVC / Heat Resistance (HR)Flame - Retardant Low Smoke (FRLS) Applications : RF cables, for Transmission of data for systems in local network, Transmission of video & TV signals, Satellite communication system etc.

We, MANGOCAB CABLES can make available any cable in braided form . Cables can be braided as per customer specifications. Braiding is done for mechanical protection. And for earthing purpose. There are number of types in braiding available like stainless steel braid, Bare Copper braid & Tinned Coated Copper braid etc.

We are offering flexible cable, panel wire, household wire, flexible cable applicable standard : is 694bs 600435 2465 type & size : single core-sheathed unsheathed from 0.5 sqmm to 150 sqmm. Multi core-from 0.5 sqmm to 4 sqmm. Construction : conductor-solid stranded flexible. Outer sheath - general purpose pvc flame-retardant low smoke (frls) flame - retardant low smoke (frls) insulation - general purpose pvc flame-retardant low smoke (frls) heat resistance (hr) applications : control panels, machinery, building wiring, household wiring etc.

We are a fast growing company, offerings shielded twisted pair cable at very nominal rates.

We are an eminent and leading manufacturer, supplier, trader and exporter of control cable in india.

Mangocab is a one stop shop for all your wire and cable needs, having manufacturing facility in maharashtra , india. The manufacturing facility is a state of the art facility, backed by complete in house testing facilities, and ably supported by qualified and experienced technical personnel.
