Metal Seals Dealers in Kandivali, Mumbai

We are one of the renowned Manufacturers, Exporters and Suppliers of Metal Bonded Seals. All the raw materials used in the manufacturing of these seals are of high quality. Our Metal Bonded Seals are available in different shapes and sizes. These Seals are known for their safe and tight sealing as they are bonded with metal.

• Material: Metal Coated Rubber
• Packaging Type: Box
• Country of Origin: Made in India
• Tensile Strength: 35 Mpa
• Usage/Application: Oil
• Size: 5.5 Inches

Designed to handle abrasive particles up to 30% by weight. Specially designed Back plate of pump and Impeller in this particular seal type ZR32D which gives better seal life and performance. Hydraulically balanced faces for excellent seal reliability. Specially coated spring is located outside the process. Flushing helps to lubricate the seal faces from atmospheric side of mechanical seal. Features Slurry seal. Double seal for Non metallic pump. Standardized modular design. Inside Mounted. Materials Seal Ring Faces : SiC and Carbon Seat Faces :SiC and Ceramic Elastomer : Viton, TTV, FEP and FFKM MOC : SS 316, PVDF – CHANGE OF MOC ON REQUEST Operating Capabilities Shaft Dia. :20mm to 80mm Pressure : Full Vacuum to 8 bar Temperature : up to 180°C Speed: 3000 r.p.m. Applications Specially developed for steel plants on CRM (Cold Rolling Mill) in acid circulation pumps for PP, PVDF & PFA Lining Pump. What is Slurry Seal ? Slurry Seal For Non-Metallic Pump Seal Type ZR32/D IMS have been carefully designed and manufactured with great precision and care. Please Visit us to see our full range of Slurry Seal For Non-Metallic Pump Seal Type ZR32/D IMS to meet all your requirements. We are the manufacturer of Slurry Seal For Non-Metallic Pump Seal Type ZR32/D IMS in Mumbai INDIA.

We are offering metalwork bond. Used for connecting to all types of metal structures upto 13mm thickness.

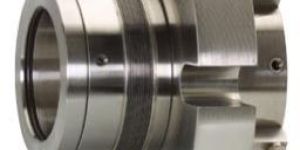

These Mechanical Seals are extremely useful in high temperature and other complicated services. Special welding process is used on rare materials to form highly accurate and precise Bellow hence it is expensive and used in ultimate services. These Mechanical Seals are Non-Pusher and Balanced in nature. Bellow is having self cleaning action and axial movement hence do not have dynamic elastomers which overcome several dis-advantages of Pusher Seals. These are available in double configuration & cartridge assemblies too. It finds great usage in Hydrocarbon, Pulp & Paper, Steel,Mine & Power Industries. We have very long experience in reconditioning of Metal Bellow Seals. Application: High Temperature, Hydrocarbons & Critical Services Operating: Pressure : 25 barTemperature : -40°C to 350°CSpeed : 20 m/sSizes : 25 mm to 100 mm Materials: Faces : Carbon, Silicon Carbide, Tungsten Carbide.Elastomers : Graphite, Perflouro, FEP.Hardware : SS-316, AM-350, Hastelloy-C, Alloy-20

We are specialized in the production as well as distribution of high quality bellow seals in the industry. We offer different variety of bellow seals in the market such as elastomer bellow seals and rubber bellow seals. These bellow seals are remarkable for offering high degree of axial flexibility to make the amendment of lack of concentricity of the shaft, misalignment and wear caused by the trust movement of the shafts. Besides, we are one of the most famed elastomer bellow seals manufacturers as well as rubber bellows seals suppliers from India.

• Shaft Diameter: 5/8" to 6.0"
• Pressure: 35 bar
• Temperature: -70oC to + 450oC

Metal Bellow Seal (LIE/710) : Metal bellow seals are for high temperature moderate pressure applications pumps. Like chemical, petrochemical, thermic fluid, boilers and refinery process unit, this seals are independence of direction of rotation and suitable for process services requiring corrosion resistance. This bellow seal is designed of Diaphragms type at the edges to form a bellow unit. There is no need of a springs, secondary seal and it provides flexibility to the seal face. This seal is available in two types of elastomer rubber o ring & grafoil to be use in extreme temperature conditions. It is mostly recommended for high temperature liquids , thermic fluid , boilers Refinery , petrochemical ,chemical etc Material Of Construction Sealing faces : Carbon, Silicon Carbide, Tungsten Carbide Welded bellow : AM 350 Elastomer : Viton, Aflas, Grafoil, Karlez , GFT Hardware : AlSI 316, Carpenter 42

• Color: White,Green,Red
• Material: Metal
• Usage/ Application: Industrial
• Size: 2 inch 3/4 inch
• Country of Origin: Made in India

• Color: Natural/Blue/Red
• Material: LD/HD
• Application: Plastic Cap Seals for Liquid Barrels
• Printing (Logo & Serial Numbers): Embossed
• Product Category: Plastic Cap Seals (S/B)

Metal Cap Seals, Rope wire seals for tankers

Metal Bellow Seal, Cartridge Seal, Mechanical Shaft Seal & Spare

Metal Cap Seals, Rope Wires, Seed Bags Seals, Pad Lock Seals, truck seals

metal locking strip seals, plastic cap seals, plastic cable tiles
