Metal Tube Rotameter Dealers in Mumbai

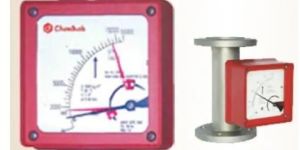

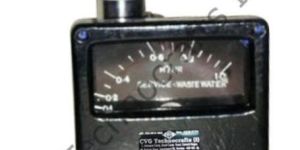

Be it for metering of opaque fluids or translucent fluids under high operating high temperature and pressure, this Metal Tube Rotameter is available in diverse sizes. We are among the respected names to get world-class Metal Tube Rotameter at rates that are not at all high. Available Sizes : In 316 SS construction with flanged connections in line size from 20 NB to 100 NB Model : CVG / MTR Ranges : 100 to 60.000 LPH of water at ambient temperature2.5 to 1700 Nm3/hr of air at NTP Accuracy : ± 2% of FSD & ± 1.5% of FSD on request Order Details : Minimum Order Quantity : 50 PiecesPrice Range : Ranging From 1500 INR to 50,000 INR

• Repeatability 10: 1
• Operating Principle: Variable Area Type
• Max PRESSURE: 18 KG/CM2
• ACCURACY.: ± 4% F.S.Overall, Calibrated at STP

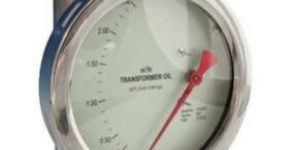

Metal Tube Rotameter is basically a variable area flowmeter. These 316L stainless steel meters feature flange connections, all welded construction (no O-rings), and an end to end length of 350mm. A float sensed by a magnet and indicated on the dial in terms of flowrate and tapered tube design provides longer, more linear scales. A 4-20mA transmitter option adds to its versatility. Suitable for Flow Measurement of Translucent/Opaque Fluids with high operating Pressure and Temperature. Available in the sizes from 1/2" to 4". Available in various Total lengths 250 mm, 300 mm, 350 mm, 400 mm, to suit customer requirements A 4-20mA Transmitter uses a unique magnetic sensor which is directly placed on the PCB. As the float moves in the taper tube the magnetic flux around the sensor changes in accordance with the float position. This change in magnetic flux causes the change in the output of the sensor. This output is amplified and linearised using microprocessor based circuitry to get standard loop powered 4-20 mA DC output.   Ranges Between : 16 to 60000 LPH / 0.07 to 266 USGPM Water at Ambient emperature. Between 0.45 to 1450 NM3 / HR / 0.28 to 915 SCFM Air at Ambient Temperature, 760 Torr Application Fluid Media : Air Gases/Water, Liquid, Acid Measuring Ranges : Between 2.5 to 40,000 LPH / 0.018 to 175.5 USGPM of Water at Ambient Temp. Between 0.1 to 300 NM3 / HR / 0.9 to 190 SCFM of Air at Ambient Temperature 760 Torre.

Process Control Devices offers a series of variable area flow meters. Designed to measures the actual flow rate of a fluid flowing through vertical or horizontal pipelines. Metal tube rotameter are also known as armored meters and these meters is build of corrosion resistant stainless steel. Metal tube rotameters is being used for general in line flow metering applications for different liquids & gasses. Where operating conditions are with the limitations of metering metal pipe of rotameter. These meters can withstand pressure up to 100 Kg/cm2 and temperature 350 Deg C. The float moves up and down in the metallic tube with fluid flow from bottom to top or horizontal towards right or left. The float takes up a position where buoyancy forces and the float weight is balance in proportion to flow rate. They are best suited for high temperature or pressure applications. These mtal tube rotameters are factory calibrated and supplied with valid & traceable calibration certificate. our traceability is with the government of India. We are leading manufacturer of metal tube rotameter in Mumbai India.

Metal tube rotameter, The wide range of rotameters for varied applications makes us amongst the best and most sort after rotameter supplier in india. Our mfg. range includes glass tube, magnetic, low flow, acrylic body, gas, multiple & metal tube, air purge, digital, bypass, water rotameter & rotameters For valve leak testing.

  Metal Tube Rotameter With Transmitting Output   MODEL NO. : FITZER / MTR / AFT RANGE : In Between 30 LPH to 80 M3/Hr Liquid TYPE : 2 Wire type OUTPUT : 4-20mAmp SUPPLY : 24V DC LINE SIZE : 15 NB to 100 NB EXTRA : Digital Flow Indicator totalizer for remote Indication

Metal Tube Rotameter is perfect for high pressure, temperature and corrosive conditions with hazardous fluids. The Metal Tube Rotameter requires no additional power supply and the basic measurement system is robust and accurate. The Metal Tube Rotameter is used for monitoring flow of De-mineralized Water, Gases, Acid, Salts, Organic Solvents and most petroleum product. Attributes : Low cost indicators High visibility scale No power required Idle for high temperature   Available Sizes : In 316 SS construction with flanged connections in line size from 20 NB to 100 NB   Ranges : 100 to 60.000 LPH of water at ambient temperature. 2.5-1700 Nm³/hr of air at NTP. Accuracy : ± 2% of FSD & ± 1.5% of FSD on request.

• Item Code: MIGFITT-MTR
• Float Material: HG
• Maximum Temperatures: Up to 750 psig
• Available Sizes: Up to 4"
• Measure flows: Up to 4,000 gpm of water or 1,300 scfm of air

• Brand: Chemtrols
• Meter Sizes: 1/2" to 4"
• Current Output: 20mA
• Usage/Application: Industrial
• Temperature Range: Up to 350 oC

Model no: DIGITAL METAL TUBE ROTAMETER (SERIES-JB-DMTR-210)Digital Metal Tube Rotameters are all metal variable area flow meters designed to measure flow rate of liquids and gases under critical conditions. It consist of a tapered metal tube with float and Digital indicating assembly. A magnet encapsulated in float couples with static sensors located in an indicating circuit. Thus the movement of the float is accurately indicated in terms of flow rate. Available Sizes in SS 316 / SS 316L / SS 304 / SS 304L / PP and PTFE construction with flanged connections in line size from 20 NB to 100 NBRanges :• 100 to 60.000 LPH of water at ambient temperature.• 2.5 to 1700 Nm³/hr of air at NTP. Accuracy : ±2% of FSD & ± 1.5% FSD on request.Accessories : • High & Low Flow Alarm. • Heating Jacket for metering section. • Electrical transmitter with 4-20mA output temperature. • 2.5 to 1700 Nm³/hr of air at NTP.

• sizes: 1/2" to 4"
• Temperature: 350 oC

a wide range of Variable Area Flow Meters (Rotameters) for various flow measuring applications; a convenient measuring instrument in field to monitor the flow at site in critical cooling, sampling and process applications. These are manufactured under technical know-how from Ms Heinrich Messtechnik GmbH, Germany. Proven design, long term usage references ensure complete safety and suitability of their usage in severe applications, backed up by all the necessary mandatory certifications.
