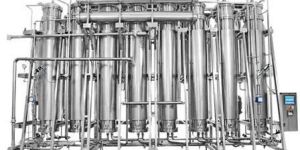

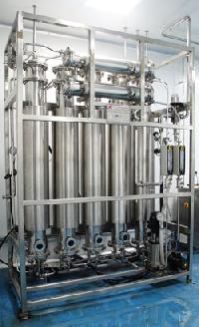

Multi Column Distillation Plant Dealers in Mumbai

multicolumn distilled water plant designed to produce 100% pyrogen free sterile distillate & chemically pure confirms to IPBPUSP standard. Multicolumn distilled water plant works on the principle of interstate heat exchanger, dramatically reduce the consumption of heating energy and cooling water. Thus enable to produce a large volume of pyrogen free distillate at a fraction of the cost than conventional systems. All documents related to factory acceptance test(FAT), Installation Qualifications(IQ), Operation Qualification(OQ), PQ are provided as part of the operational manual.

Multi Column Distillation Plant available from 80 ltrs. hr. to 1500 ltrs. hr. capacity produces 100% pure, pyrogen free, sterile distillate at unmatched low operational cost which confirms to Pharmacopoeia standards for WFI. All contact parts are made out of S.S. 316316L and all the tubes are seamless. The system works on the principle of inter stage heat exchange and use intrinsic heat to supplement consumption need of heating energy and cooling water. Due to surface film evaporation

• Material: Iron, Metal, Stainless Steel
• Application: Industrial Use
• Condition: New, Used
• Surface Finishing: Polished, Power Coated
• Type: Multi Column Distillation Plant
• Certification: ISI Certified, ISO 9001:2008 Certified
• Color: Black, Golden, Grey, Grey-Golden, Metallic, Shiny Silver, Silver
• Feature: Accuracy Durable, Auto Reverse, Corrosion Resistance, Dimensional, Hardend & Temper, High Quality, High Tensile

Multi Column Distillation Plant is a process of water treatment in which water is forced through a membrane which has tiny holes known as "pores". Clean water passes through and impurities that are too big to pass through the membrane are left behind and flushed away.

• Brand Name: Pharmalab
• Power: 2.5KW
• Automatic Grade: Automatic
• Installation Service: Yes
• Pumps: CNP or Grundfos
• Weight: 380KG

        APPLICATIONS : Pharmaceuticals Pharma Foods   SALIENT FEATURES : Pure, sterile and pyrogen free distilled water. Compact space saving design. High operational reliability. Meets GMP and FDA norms. Easy and silent operation. Excellent energy efficiency. Easy to maintain and operate. Fully automatic operation. High degree of finish. Auto dumping of sub-standard distillate. Special sanitary fittings.

The WFI Still work on the distillation principle. The first column is heated by the external Plant steam. The generated vapor by the feed water rises up the column where it is subjected to the entrainment separation system. Multidirectional baffles deliver the first punch. The steam generated from the first column is made to pass a torturous path through multidirectional baffles. Here the pyrogen particles and droplets separate and are guided to the end of the column. A centrifugal type cyclone separator high up in the column delivers the second punch. Here the vapor is guided through a narrow circular channel where it begins to rotate.

We are offering multi column distillation plant. Indo german multi column distillation plant is based on finn aqua design and it produces pyrogen free sterile water (w. F. I.) which meets the requirement of indian, british & united states pharmacopoeia. It is available from 50 ltrshr (lab model) to 3000 ltrshr. The wfi produced by these plants is quite economical due to low maintenance and low operational cost.

RaviKiran is a renowned Multicolumn Distillation Plant Manufacturers in India that is designed to produce sterile, pyrogen free distilled water conforming to I.P.B.P.USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemenscm² suitable for the use in preparation of injections and I.V. Fluids. It is provided with an electronicPLC based fully automatic panel board and is available in various output capacities from 50 ltrshr to 3000 ltrshr. Injectable Section:-Manufacturer and Supplier of Multicolumn Distillation Plant that is designed to produce sterile, pyrogen free distilled water conforming to I.P.B.P.USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemenscm² suitable for the use in preparation of injections and I.V. Fluids.

Multicolumn distillation plant Feed Water Aprox 55L and 90L Cooling Water Aprox SOL and 80L Steam Consumption I 5 Kg & 26 Kghr Electric Consumption 2 Kw for Pump Electrically operated Built in Boiler 24 Kw for Boiler

• Design: Standard, Customized
• Capacity: 50 - 300ltr MOC - SS 316, steam or electric heating
• Automatic Grade: Semi-Automatic

Multi Column Distillation Plant is based on FINN-AQUA design. It consists of expressly designed columns which make best use of the principles of interstate heat exchange (Multi effect distillation method) to generate pure pyrogen free sterile distilled water for injectables as per IPBP specification. The vapours with high velocity and under pressure passes over a SPECIALLY DESIGNED SPIRAL BAFFLE system which develops remarkable centrifugal force and thus eradicate any chances of pyrogens carry over in the vapours.

• Feature: Pure sterile, pyrogen-free sterile distilled water conforming to I.P./B.P. Standards , Positive air/gas venting to ensure pure distillate , Electropolished cerviceless, inner contact surfaces.
• Distillate: Meets I.P./B.P. Specifications.
• Temperature: 95°C
• Conductivity: Less than 1 Microsiemen/cm.
• Feed Water: De-ionised water with max. conductivity of 5 Microsiemen/cm should be used.
• Feed Water Pressure: should be 1 Kg/cm² higher than the infeed feed pressure.
• Cooling Water: Normal tap water is used to provide hardness in less than 90 PPM of CaCO&sub3.
• Steam: Steam must be saturated, dry, free from all vapours and other impurities
• Power Supply: Power-Main Supply-A.C. 440V. 3 Phase/50 cycles, Max Load-5 KW.
• Air: Dry air at 3 bar pressure and maximum of 5 CFM quantity is required for operation of pneumatic valve

The WFI Still work on the distillation principle. The first column is heated by the external Plant steam. The generated vapor by the feed water rises up the column where it is subjected to the entrainment separation system. Multidirectional baffles deliver the first punch. The steam generated from the first column is made to pass a torturous path through multidirectional baffles. Here the pyrogen particles and droplets separate and are guided to the end of the column. A centrifugal type cyclone separator high up in the column delivers the second punch. Here the vapor is guided through a narrow circular channel where it begins to rotate. The vapor flow subjects the pyrogenic impurities and droplets to a high centrifugal force thereby dislodging them from the vapor steam. The distillation units are connected in series into a multiple effect system and external energy is required only at the first column. The steam generated in each column is supplied to the subsequent column. The generated steam vapor of the last column and the almost condensed steam distillate (2nd column onward) is led to the over head cooling heat exchanger, where it is cooled by the cooling water & incoming feed water to generate WFI. Features Komal’s Multi-Column Distillation Plants (MCDP) are designed to produce pyrogen/endotoxin free water conforming to IP/BP/EP/USP standard. These individual columns are designed , constructed and tested per the American Society of Mechanical Engineers (ASME, Section VIII, Division 1- Unfired Pressure Vessels) since they operate at pressures as high as 6 to 10 bar All Evaporator (columns) sheets and tubes as well as all surfaces in contact with Pure Steam or distillate are constructed of 316L stainless steel with inside electropolish and Teflon gaskets. All tubes joints are Orbital welded and qualified with videoscopy. Full-Automatic PLC based Control Panel System with auto sanitization and printing facility. First column equipped with Double tube sheet as a provision to avoid boiler steam mixing with Purified water. Komals WFI-Combo design optimizes the Control Panel by combining the panel for WFI Generation and Distribution system Plants are available from 50 Liters/hour to 10000 Liters/hour. Complete documentation to meet and exceed international audit requirements.

Uses Superior three-punch entertainment technology for producing sterile, pyrogen free USP grade WFI for manufacture of critical sterile dosage forms.Joel’ Multi Column Distillation Plant is a key system for cGMP Standard. MCDP is the perfect solution for high purity sterile pyrogen free distill water. The vapour with high velocity & under pressure passes over a ‘SPECIALLY DESIGNED SPIRAL BAFFLE’ System which develops tremendous centrifugal force & thus eliminates any chances of pyrogens in the carry over vapours. It is available in capacities from 50 LtrsHr. The water for injection (WFI) produced from MCDP is according to FINNAQUA Design & it is low maintenance & low operational costs.

• CAPACITY: 50 to 2500 Ltrs.

Multicolumn Distillation Plant is the perfect Multicolumn Distillation Plant solution. Available in capacities ranging from 80 - 5000 LPH, the Multicolumn Distillation Plant is used for its economy, low maintenance and low operation costs.Sanitary triclover fittings for quick and easy preventive maintenance.Double tube Sheet construction for the first column, where boiler steam is present.Synoptic panel board with facility for logging the data can also be given.

RaviKiran is a renowned Multicolumn Distillation Plant Manufacturers in India that  is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections and I.V. Fluids. It is provided with an electronic/PLC based fully automatic panel board and is available in various output capacities from 50 ltrs/hr to 3000 ltrs/hr. Injectable Section:-Manufacturer and Supplier of Multicolumn Distillation Plant that is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections and I.V. Fluids. Features It is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections, I.V. Fluids, etc. The still is manufactured under stringent conditions to conform to GMP standards. It works on interstage heat exchange principle & thus saving 70 % energy compared to conventional stills. Provided with an electronic/PLC based fully automatic panel board, it is available in various output capacities from 50 ltrs/hr to 3000 ltrs/hr.
