Multiple Spring Seal Dealers in Mumbai

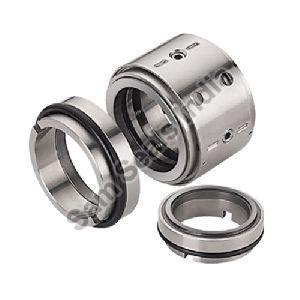

We are offering Multi Spring Mechanical Seal (LEE-D25). Applications Generally used in petroleum, chemistry, refinery, paper making, pharmacy, power and auto industry Operating Limits Shaft Dia. : 20 to 100mmPressure : up to 7 BarsTemperature : -30 to 200 C.

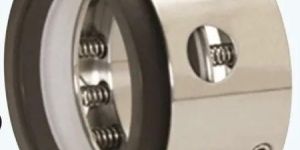

Multi Spring Mechanical Seals can be used in various industries for different applications as per the requirement of the products such as single, back to back, face to face or tandem arrangement. Multi Spring Mechanical Seals have many springs which put uniform force over the faces. Most of the components are interchangeable, hence it proves economical and easy to maintain. Pusher type mechanical seals are available in un-balance design for low pressure and balance design for high pressure applications. These Multi Spring Mechanical Seals can be designed in double configuration for toxic, hazardous, costly & volatile liquids. We can offer double mechanical seals in back to back as well as tandem arrangement as per application.   Available range : Multi spring unbalanced seal Multi spring balanced seal Reversed balanced seal Capsulated spring seals Dry running mixer seals Multi spring slurry seal Single coil slurry seal   Application : These are used in clear lubricating, non corrosive & volatile liquids.

Buyers can approach us, if looking for obtaining first-class products in Mumbai(India). With the aid of diligent team of professionals and brilliant packaging system, we are able to meet standard as well as tailored packaging requirements of the patrons.   Feature : Reverse Balanced Dimension Range - 20mm to 100mm Temperature Range - 180oC MAX Faces - SIC, TC, Carbon Elastomer - Viton, EPDM, Kalrez, Nitrile, PTFE

• Temperature: -40°C to +200°C
• Pressure: up to 20 bar g

Multi spring design, Easy installation and removal Unbalanced, Independent on rotation of direction Compact design, General industrial applications including process services, Lubricating liquids, aqueous solutions chemicals, corrosives, some acids.

• Temperature: -50 To 180 Degree C
• Speed: Up To 25 M/s
• Country of Origin: India
• Type: HS46
• Sealing Type: Mechanical Seal
• Material: SS
• Color: Silver
• Pressure (Bar): Up To 25 Bars
• Shaft Diameter: 25 to 150 mm
• Pressure: Up to 15 Bars
• Applications: Paper industries, Petrochemicals, Petroleum refinery.
• Temperature (Deg. Celsius): Upto 180 degree Celsius
• Shaft Diameter (Millimeter): 10 to 100mm
• Up to 25 m/s: Up to 25 m/s

The GCC 101-B series are balanced types seals designed to handle higher pressure applications with the same versatility and reliability as GC 10 I-type. To accommodate the series, a step must be provided on the shaft sleeve to permit a design technique of balancing off some of the hydraulic forces which tend to overload the seal faces. Application The mediums are all types of rotating equipment, pumps, mixers, agitators and compressors. To suit industries such as general chemical, oil refining, petrochemical, pharmaceutical, food processing, pulp and paper and waste water treatment.

• Brand Name: Imax

We are strongly backed by a well maintained and managed storage house wherein we store our products for meeting urgent and massive requirements of the buyers. As a customer-focused firm, we strive hard to delight them with high quality range of products that are the perfect outcome of premium raw material and modern work methods.   Specifications : Shaft Diameter - 14 to 150 mm Pressure - Up to 10 Bars Temperature - 50 to 280ºC Speed - Up to 25 m/s

• Material: Metal
• Surface Finishing: Polished
• Application: Industrial
• Durability: Long Life
• Resistivity: Rust Resistant

We are engaged in offering premium rott seal to the clients. Our rott seal finds applications in different sealing applications like for sealing systems that handle different types of slurries. These rott seals are made available by us in different customized specifications and are made using high quality materials. These rott seals resist damage even when exposed to very high pressure and temperature situation. raw materials used : ss 304 ss 316 carbon silicon carbide tungsten carbide ceramic viton epdm ptfe gft applications : crystallizing slurry suspended solids slurry saturated chemical slurry general chemical slurry specifications : shaft diameter : 22 to 100 mm pressure : 14 bar (max) temperature : 200oc .

• Pressure: 10 Bars(max)
• Shaft Diameter: 10 To 100 Mm
• Temperature: -20 To +260°C
• Velocity: Up To 20 M/sec/3000 R.p.m
• Seal Ring Face: Carbon, GFT, SiC & T.C
• Seat Face: Ceramic, SiC & T.C
• Elastomer: Viton, PTFE, TTV, EPD, NBR, FFKM
• MOC: SS 316 / SS 304
• Product Code: MF-43u

Applications :   Water Pumps Circulating Pumps for Central Heating Chemical Pumps Sewage & Submersible Pumps.

• Pressure: 25 Bar (Max)
• Shaft Diameter: 20 mm to 150 mm
• Usage: Industrial
• Country of Origin: Made in India
• Brand: Ashish Seals
• Model Name/Number: PS37
• Material Of Construction: Faces : Carbon, Silicon carbide, Tungsten carbide, Ceramic. Elastomers : FKM, FFKM, EPDM, NBR, Aflas, Silicon, TTV, TCV. Metallurgy : SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy-2.

• Application: Generally used for handling Slurry, corrosive chemicals, hydrocarbons, general & light chemicals
• Faces: Carbon / Ceramic / Sic. / Tungsten Carbide
• Secondary Seals: Viton / PTFE / FEP / GFT
• Hardware: SS316 / HAST-C / ALLOY-20
• Shaft Dia: 12.0mm...100.0mm 0.5 Inch...4.0 Inch
• Pressure: 10.0/25.0bar (max...)
• Temprature: -40'C TO 220'C
• Velocity: 20.0m/s

• Material: Stainless Steel
• Shape: Round
• Color: Metallic
• Packaging Type: Box
• Application: Industrial
• Surface Finishing: Coated

Operating limits are based on PV factor.Standard multi-spring, grub screwed seal, available in a wide variety of face and secondary seal, materials and designs.Frequently fitted with the FT clamped stationary.Characteristics Balanced/Unbalanced Mechanical Seal. Independent on direction of rotation. Operating Limits p: 22/40 Bar ; V: 15 m/s T: -40 / +250ºC Temperature is based by material selection. Operating limits are based on PV factor.

• Pressure: 14 bar
• Temperature: -50 to +180 Deg. C
• Speed: 2900 RPM
• Shaft Diameter: 14 mm to 200 mm
• Specialities: Single Seal, Pusher Type, Rotating Spring, Internal Mounted, Multiple Spring Type, Balance & Un-Balance Type, Independent of direction of rotation.
• Brand: Gipfel Engineering
• Usage/ Application: Equivalent to Flowserve RO Type
• Model No.: MF260S
• I Deal In: New and Second Hand

Hi-tech machines and assistance of our packaging experts help us in meeting the standard as well as customized packing needs of the customers. Moreover, we check the entire lot before making the final dispatch. We have a good rapport with the leading names in the industry from whom we source the basic material, required for manufacturing superior grades products.   Features : Sturdy material Precision made Industrial application

We are offering multi spring mechanical seal. Seal proof make complete multi spring mechanical seal made for various applications.it’s compact design is easy to install and also easy for maintainance.this seals are independent of direction of rotation.for easy installation and removal of the seal, all components are held together with the snap ring.all parts are interchangeable, one can easily convert spe704 to spe701 by changing its seal ring and secondary seal.this concept is ideal for stock rationalization.

The Series MSI-101 are multi spring mechanical seal made for various applications.It’s compact Design is easy to install and also easy for maintainance.This seals are independent of direction of rotation. For easy installation and removal of the seal, all components are held together with the snap ring.All parts are interchangeable, one can easily convert 101U to 101W by changing its seal ring and secondary seal.This concept is ideal for Stock rationalization.

• Brand Name: Micro Seals

“Mechanical Seal - Multi Spring Balance Seals" are pusher type balance multiple spring seals generally used where high pressure sealing required. due to its compact radial and axial dimensions these seals required lower stuffing box space for installation. this seals can be provided with single, double, or tandem arrangement with external seals support systems and devices.  Application Petro chemicals, petroleum refinery, light hydrocarbons and general industrial fluids.   Operating Limits Pressure : 30 bars (Max)Temperature : (-)20c to (+)220cSpeed : 2900 rpm (Max)Sizes : 18 mm to 100 mm   Material Seal Face : Carbon, Silicon, Ceramic, TCSecondary Seals : Elastomer / PTFE / GFTMetal Parts : SS 316,Hastellcy.904L.Alloy 20.

We, at Cosmos Seals India are engaged in the production and distribution of Multiple Spring Balanced Seals. The Multiple Spring Balanced Seals, provided by us, are fabricated by the experienced engineers at our own production house using modern technology. We provide the Multiple Spring Balanced Seals in the market in various specifications at the market leading price.

• Shaft Diameter: 18...100mm
• Pressure: 10 bar (max)
• Temperature: -20...2200C
• Velocity: 20 m/sec

Type VT- 9 / VT - 9W are multi spring, pusher type unbalanced seals used for universal applications. The seals are compact in design suiting all types of rotating equipments, pumps and mixers. Drive lugs in the retainer will provide torque transmission and reduce slippage on shaft and sleeve. A snap ring holds all components together, helping in easy installation. The parts are interchangeable, VT- 9 can be converted to VT - 9W by just changing the seal ring and the secondary member.     Seal Characteristics   Single Seal unbalanced Independent of directions of rotation     Application   General Chemicals Petrochemicals · Refineries Light hydrocarbons, Water     Performance Range
