Noble Gaskets & Engineers Agripada, Mumbai, Maharashtra

We are instrumental in manufacturing, exporting, and supplying Wire Reinforced Gasket Sheets. This variety of Gasket Sheets is made from graphite laminate material comprising of 2 layers of graphite foil reinforced with a 316 stainless steel woven wire mesh. Its wire mesh insert gives good reinforcement and handling properties on cut gaskets with narrow flanges. Moreover, these Wire Reinforced Gasket Sheets are suitable for control valves. Attributes Wide operating temperatureWide range mesh size Standard purity SpecificationsF)Cryogenic to 700X (1292T) in an inert or reducing atmosphereCryogenic to 500=0 (932'f) in an oxidizing atmosphereEven in inert or reducing service conditions, oxidization of Flexicarb may occur above 500oDeg C. (932oF)

Type : Gasket Material

Material : Paper, Rubber

Shape : Rectangular, Round, Square

Color : Brown, Dark Black, Grey, Grey-black, Silver, White

Feature : Durable, Fine Quality, High Strength, Perfect Shape, Rust Proof, Strong Construction, Superior Finish

Condition : Good, New

Finishing : Non Polished, Polished

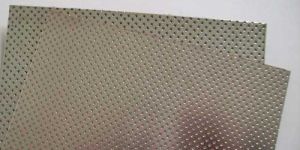

Tanged Steel Reinforced Gasket Sheets comprises of 2 layers of graphite foils the flexicarb is mechanically bonded to a 0.1 mm (0.004") thick in 316 stainless steel grade. Tanged Steel Reinforced Gasket Sheets that we provide contain binders, resins, or fibers. These Tanged Steel Reinforced Gasket Sheets have excellent sealing properties and relatively low sealing stress characteristics. Attributes Maximum operating temperatureTemperature rangeStandard purity Specifications 95%, 98% graphite 700oC(1292T)Cryogenic to 700 oC (1292T) in an inert or reducing atmosphereCryogenic to 500oC (932oF) in an oxidizing atmosphere Available In Different sizes to suit standard raised face and flat face flanges

This variety of Gasket Sheets is a high performance graphite foil bonded to each face of a 0.05 mm (0.002'1) thick 316 stainless steel foil. Our Steel Reinforced Sheets have optimum sealing characteristics and low seating stress properties. Their dimensions are appropriate for standard raised face and flat face flanges. Properties (of 1.5mm thick material stainless steel reinforcement) Density : 1 4 gcm3 45%ASTM Compressibility (at 34.5 MPa5,000 P.S.I.)ASTM Recovery 13% All Thicknesses Demonstrate The Following Properties Maximum operating temperature : 700oC (1292oF)Temperature range : Cryogenic to 700oC (1292CF) in an inert or reducing atmosphere, Cryogenic to 5O0oC (932oF) in an oxidizing atmosphere Size Available Sheet size : 1000 mm x 1000 mm (39.4 in x39 4 in)Thickness : 1.5 mm, 2.0 mm, and 3 0 mm (0.060 in, 0.080 in and 0.120 in.)

Material : SS

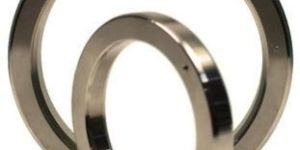

Type : Ring Gaskets

Material : Aluminum, Brass, Copper, Stainless Steel

Shape : Round

Color : Brown, Grey, Silver

Condition : New, Used

Finishing : Non Polished, Polished

Packaging Type : Packets

Thickness : 0.20-5.5 mm

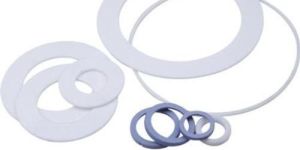

Color : White

Material : PTFE

Weight : 25-120 g

We are a Prominent Manufacturer, Exporter, and Supplier of Non Asbestos Gaskets. These Non Asbestos Gaskets are Extensively Used in Applications Where Compressed Asbestos Fiber Sheet Material Was Traditionally Used. Our Non Asbestos Gaskets are Available in Varied Specifications, in Order to Meet the Client’s Specifications. Additionally, We Offer These Non Asbestos Gaskets At Very Moderate Prices.

Nickel Reinforced Gasket Sheets are manufactured using Grafite N.R. (Nickel Reinforced), which is an excellent semi-rigid laminated graphite material. The 2 layers of graphite foil are bonded to an ultra thin nickel reinforcement layer which is 13 microns (0.0005 in) in thickness. Nickel Reinforced Gasket Sheets that we offer are commonly used in various industrial purposes. Their bonding agent is based on a nitrite phenol adhesive. Availability Various dimensions of type NR Gaskets to suit standard raised face and flat face flanges

Thickness : 1-5 mm

Color : Grey

Material : Neoprene Rubber

Width : 50-150 mm

We are engaged in manufacturing, exporting, and supplying Metal Clad Gaskets, which are available in various specifications. The Metal Clad Gaskets that we provide are developed using soft non-asbestos gasket material either partially or totally enveloped in a metallic sheath. Our high quality Metal Clad Gaskets are largely used for sealing purposes in various industries.

We have pioneered in manufacturing, exporting, and supplying Graphite Sheet Gaskets in national and international domains. Our Graphite Sheet Gaskets are widely used on both rough and smooth flanges in various industries. Their Low leach able and total chloride content aid makes these Graphite Sheet Gaskets more resistant to corrosion.

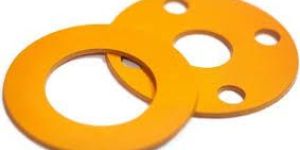

Type : Flange Gaskets

Material : Aluminium, Brass, Copper, Iron, Metal, Stainless Steel

Color : Brown, Dark Black, Grey, Grey-black, Silver, White

Condition : New, Used

Finishing : Non Polished, Polished

We are a leading Manufacturer, Exporter, and Supplier of Elastomeric Gaskets in the industry. The company offers Elastomeric Gaskets that consist of base polymers with the insertion of vulcanizing agents, fillers, pigments and various additives. These Elastomeric Gaskets are widely used in various industries, owing to their soft compression characteristics, which ensure excellent recovery properties. Avail from us these Elastomeric Gaskets at market leading prices. Attributes Excellent performanceSuperior qualityResistant to corrosionLonger life Available In Natural RubberNitrileButylViton

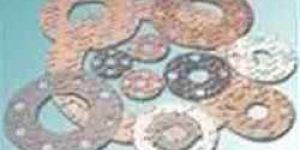

We Specialize in Manufacturing, Exporting, and Supplying Top Quality Caf Gaskets to the Clients in National and International Markets. These Caf Gaskets Consist of High Grade Asbestos Fiber Intimately Bonded with Specially Selected Polymers, Providing a Premium Sheet Jointing Material. the Caf Gaskets that We Provide are Rated to Suit Class 150 and 300 Applications in Various Industries.

Type : C.A.F Sheet Gaskets

Finishing : Polished,Non-Polished

Condition : New,Used

Color : White,Grey,Black,Blue

Material : C.A.F Sheet

Type : Asbestos Gaskets

Material : Asbestos

Shape : Flat Gasket, Sheet

Color : Green, Red, Yellow, Black, Blue, Gray

Condition : New, Used
