Nozzle Heaters Dealers in Mumbai

APPLICATION Low cost electric heating of plastic processing, rubber vulcanizing, Drums, Barrels & cylinders etc. CONSTRUCTION Mica insulated Heaters consist of electric resistant ribbon / round wire element covered with zinc plated MS, Brass or SS sheet with clamps. Size & terminal connections as per requirement. CONNECTION For contact accessories, cable fittings, clamping devices, fixed & braided connection, heat resistant, flexible insulation with metal braided cable housing of any convenient length, connection boxes & types according to the band heatersdimensions, power & type of power supply.     STANDARD SIZES & CAPACITIES Max. Watt density: Any convenient Wattages up to 25 W/Sq. inch. Max. Surface Temp. 300 Deg. C. Supply (Volt) – Any convenient Voltage under the pre condition that it should be technically feasible

• Voltage: 230 V
• Frequency: 50 Hz
• Power: 800 W
• Phase: Single Phase
• Size: 5inch(Diameter)
• Heater Material: Brass
• Finishing Type: Polished

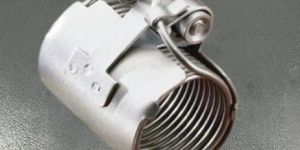

Nozzle coil heaters are similar to the coil heaters but with a bigger cross section and the option of brass collet and clamping band over the heater to ensure perfect snug fit onto the nozzle for the efficient heat transformation. The problem of material spillage results in frequent failure of mica nozzle heaters, where as these heaters are robust in such conditions. Features Available with nickel chrome steel band Temp range for upto 400 deg C Option of J type or K type thermocouple available on request Negligible effect of material spillage Minimum inner diameter of 25mm Application Injection and blow moulding Process engineering Extend nozzles

We are one of the prominent Manufacturer, Supplier and Exporter of a wide assortment of PHP High Performance Nozzle Heaters. The High Performance Nozzle Heaters offered by us come with inbuilt thermocouple and a rugged clamping offering high emissivity and physical strength. These High Performance Nozzle Heaters are good for sheath temperature up to 400oC. Our range of High Performance Heaters offers a max temp up to 250 Deg C. Besides, these heaters control sensitive materials like Nylon 66 with 40% glass filled accurately. Features : CE Certifiedwith built in ThermocoupleVery Robust DesignHigher Operating Temperature 400oCNegligible Effect of Material SpillageDelivers Better & Even Heat Transfer Available with built in ThermocoupleGood for processing engineering plastics( nylon66, glass polyfill) Applications : Extended NozzlesInjection & Blow Moulding machine nozzles Advantages : Built in Thermocouple for Accurate Temperature Control at the nozzle tipHigher operating temperature (4000Cmax)compared to conventional Mica Band Heaters (250oC max)Good for processing engineering plastics ( nylon66, glass polyfill)Quick ramp up of temperature due to higher watt densityNegligible effect of material spillageEfficient & even heat transfer due to inner Brass Collet

DESCRIPTION : We are offering an exclusive range of Nozzle Heaters to our clients. These offered products are manufactured by making use of supreme quality raw material procured from the established vendors of the industry. Besides, the offered products are provided with a clamping band, which is made up of chrome nickel steel, supports system in transferring maximum heat. We have developed these products in accordance with the defined quality parameters of the industry so as to ensure their unsurpassed standards. Our valued clients can avail these offered tubes in different grades and specifications as per their requirements.   APPLICATIONS : 1. Extended Nozzles2. Injection & Blow molding   FEATURES : 1. Higher Operating temperature 4000C2. Available Effect of material Spillage 3. Very Robust Design3. Delivers Better & Even Heat Transfer4. Available with built in Thermocouple 5. Good for processing engineering plastics (nylon66, glass polyfill)   Advantages Quick ramp up of temerature due to higher Watt dencity Negligible effect of material spillage Efficient heat transfer due to inner Brass Colet Accurate Temparature Control at the nozzle tip Higher operating temparature (4000C max) compared to conventional Mica band Heaters (2500C max)

• Type: Nozzle Heaters
• Material: Aluminium, Copper, Metal, Tungsten
• Certification: CE Certified, ISO 9001:2008
• Color: Brown, Grey, LIght White
• Voltage: 110V, 220V, 380V, 440V
• Condition: Good, New, Used
• Automatic Grade: Manual
• Warranty: 1 Year, 2years, 6 Months
• Driven Type: Electric
• Features: Cost-effective, Low Power Consumption

SUNIL HEAT has designed sealed mica nozzle band heater to prevent the failure of nozzle heaters against the leakage & contamination of plastic material at nozzle position. These heaters meet the required temperature prior to molding at nozzle position. These heaters are hermetically sealed during the manufacturing process. The connection between the heating element & the leads is protected by a special terminal cap made of brass 1mm thick. The terminal cap is brazed which allows a high mechanical strength in the most delicate area of the heater i.e. the termination. The heating of nozzle in injection machines is still a big problem owing to subsequent stops of the production process and cost incident. We have seen a large series of cases causing an early failure most of them are due to plastic leakage impregnating the heater and causing heater failure. These problems are solved by using our sealed mica nozzle band heaters. There can be custom built entry points for termination considering customers requirement, alternative tubular nozzle heaters are available.

Sealed Brass Nozzle Heaters are the result of the high technology & are completely proof to all external factors such as melted plastics, oil, gas etc. Sealed Brass Nozzle heaters are very sturdy & the high watt density per square centimeter provides the required working temperature with a fast and safe means. During manufacturing process, the heaters are subjected to very high pressure that gives them high insulation, excellent thermal exchange, lack of internal voids, perfect smooth contact area for optimum and uniform heat transfer to every point of nozzle. Minimum material waste No freeze off of the plastic

These Heaters are designed primarily as economical mica band heaters in nozzle and narrow width sizes. The idea is to make available from ready stock so that customers get the supply without loss of time and these can be made available at fairly low prices.

Our company holds expertise in manufacturing and supplying precision made Nozzle Heater. Nozzle Heater, available with us, is appreciated for creating maximum heat transfer. The offered Nozzle Heater eliminates cold and hot spots. The Nozzle Heater is known for allowing quicker heat up and less thermal lag between nozzle and heater.

• Diameter: 25mm – 65mm

Mica Nozzle Heaters are designed and manufactured with more than 25 years of practical experience, for superior performance and life expectancy., As a manufacturer specialized in industrial electric heating elements & the desire to provide quality products and services to our customers both OEM’s & End Users, Vinman specializes in designing Mica Nozzle Heaters, Ceramic Band Heaters , Mica Band Heaters & Strip Heaters to your exact specifications. Nozzle Heaters are manufactured with high temperature oxidation metal sheath and high grade mica insulation resistant to moisture and high temperatures.
