Oil Centrifuges Dealers in Mumbai

These machines are used for small batches in plant and R&D laboratories. They are mounted on Anti Vibration Mounts and do not need a heavy foundation.These machines can be provided on Trolleys so that they can be moved easily between different operational areas.Available Sizes (Basket Dia) : 12’’(305 mm)-14’’(355 mm), Max Permissible Load * : 6-10 kg per batch, Basket Speed : 2000 3000 RPM.

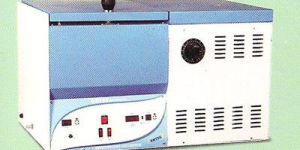

This range of Centrifuge is designed and developed for the various tests carried out fortesting oil as per ASTM & IP. The centrifuge chamber is completely isolated from the motor compartment. The same has been made explosion proof so that there is no chance of inflammable vapours being ingnited electrically. The driving motor has been specially designed keeping in mind the safety requirements for oil testing application. Four types of models are available. BOT104 D, FOT106 D, FOT 6000 D, PC FOT106. Programmable type Oil Testing Centrifuges are also avilable. BOT 104 D : Oil testing centrifuges suitable for routing tests like A ASTM 96-68 ASTM D-91 -61 ASTM D 96-60T, ASTMD-1796-68, D-393-60T, ASTM D-484-52, ASTM 1019-68, IP-145-55, IP-75-57 etc. The unit is provided with steeples speed control, speed meter, dynamic brake, zero start interlock switch. FOT 106D : Oil Testing Centrifuge suitable for ASTM D-96-68, ASTM D-91-61, ASTM D-96-60 ASTM D-1796-68, ASTM D-893-60T, IP-75-57, ASTM D-783-61 T, ASTM D-484-52, ASTM D-1019-68& IP-145-55 tests. The unit is provided with remote control speed meter, zero star interlock switch, dynamic break, push button switch cum indicator, lid locking switch, and the unit is mounted on castor wheels for easy mobility. FOT 6000 D: High Volume Centrifuges, is heavy duty floor model unit Suitable for varying centrifuge applications in Clinical Laboratories. Chemical and Pharmaceutical industries and Research Institutions. The Unit is provided with S. S. top and metal lid. The control panel incorporate stepless speed control, digital pre-set timer cum indicator, zero start interlock, lid locking switch, unbalance safety cut off, dynamic brake and push botton switch cum indicator.(We recommend 3 kva stabilizer) TECHNICAL DATA:

• Parameters: OC2F
• Control: Microprocessor with Variable Frequency Drive
• Max. Speed: 3000 RPM
• Max. RCF: 1480 x g
• Choice of Tube Size: 100 ml
• Max. Capacity: 400 ml
• Motor: Brushless Induction Motor
• Display: Digital LCD
• Program Features: User defined RPM/RCF, Acceleration, Deceleration & Timer with 25 Programs
• Acceleration/ Deceleration: 12 - 510 Secs
• Timer: 1 - 120 Min
• Brake: Dynamic Brake
• Safety: Sturdy Cabinet, Lid Lock, Imbalance Protection, Gas Spring
• Security: Password Protection (Optional)
• Choice of Rotor Heads (Swing Out): 2
• Power Supply: 230V, 50 Hz
