Oxygen Plant Dealers in Mumbai

Atmospheric Air is sucked in by a multi stage Compressor through a filter and is compressed to the design pressure,The compressed Air is then passed through inter-coolers, Industrial Refrigerator, Moisture Separators, and then to the Molecular Sieve Battery for removal of Carbon Dioxide, Hydrocarbons and Moisture from the process Air. This pure Air then passes through the 1st Heat Exchanger, where it is cooled by the out going Nitrogen and Oxygen. Part of this cooled Air is passed through Expansion Engine and the other part through the 2nd Heat Exchanger. Both the Expansion Engine and 2nd Heat Exchanger help in further cooling down the Air, which is finally released to the bottom of the column through an expansion valve. The Air becomes liquid at this stage.

• Certification: BVI,SGS
• Voltage: 415,380
• After-Sales Service Provided: Engineers available to service machinery overseas
• Condition: New
• Production Rate: 50 UNITS PER YEAR
• Model Number: 50 CMH TO 1000 CMH PLANTS

The SANGHI-ORG Oxygen Plant, is safe and economical to operate. It comes with an efficient expansion engine, which lowers the operating pressures remarkably to as low as 32-35 kg/cm2 and also cuts down power consumption. A Molecular sieve Battery drier unit for separation of moisture and carbon dioxide is another money-saving device in the SANGHI-ORG plant. It removes acetylene and other hydro-carbons from the process air, thus eliminating the need for separate acetylene absorbers, and moreover it eliminates recurring caustic soda costs. The SANGHI-ORG Oxygen Plant is capable of simultaneously producing high purity Oxygen Gas and Nitrogen Gas. It also has an internal compression Liquid Oxygen Pump to fill dry gaseous oxygen in cylinders. We also undertake supervision of Installation and Commissioning of the SANGHI-ORG Oxygen Plant. The free atmospheric air is sucked in by a multi-stage air compressor through a filter and compressed to the working pressure. After each stage, intermediate coolers and water separators are provided. The compressed air then passes through the (evaporation) pre-cooler and then to the molecular sieve battery where the moisture and carbon dioxide are removed from the process air. It then passes through the exchanger No. 1 where it is cooled by the out-going waste nitrogen and product oxygen. A part of this cold air then flows through an expansion machine and the balance through the 2nd heat exchanger. The ratio of the two air streams is controlled by an expansion valve, RI. Both these streams of air then unite in the lower pressure column where it partially liquefies. The liquid air (rich air) then passes through the expansion valve R2 to the upper column which is at a lower pressure than the lower column. Similarly the liquid nitrogen (poor liquid) travels from the lower column to the upper column through an expansion valve R3 where the separation of oxygen and nitrogen occurs. Nitrogen being more volatile passes out as a gas from the top of the column and this waste nitrogen flows through both the heat exchangers cooling the in-coming air. Similarly product oxygen is also passed through the two heat exchangers to cool the in-coming air and then to the filling manifold via a liquid pump. If a small amount of air is vented out from the upper column, higher purity nitrogen can also be obtained from this plant. R4 Valve is provided in order to fasten cooling during start-up.

• Size: 20" x 6" x 9" - 16lbs

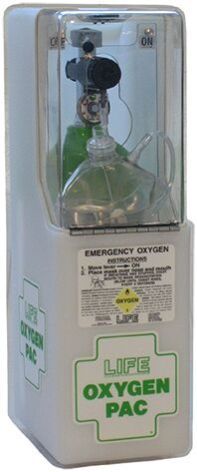

Emergency Oxygen Units Wall Mount for Recognition and Accessibility, always available on display for easy access, Constant Reading Supply Gauge (other units must be turned on to read gauge), Cylinder is easily disposablereplaceable or refillable at local gas distributors.

• Voltage: 440 V
• Application: Waste Water Plant
• Automatic Grade: Semi- Automatic
• Installation Time: 25-30 Days
• Air compressor stages: Four Phases
• Purity Of Oxygen: 95+-3%
• Technology Used: PSA (Pressure Swing Adsorption)

• Application: Medical
• Power: 75 KW
• Voltage: 220 V
• Automatic Grade: Fully-Automatic
• Outlet Pressure: 7 Bar (g)
• Brand: Trident
• Purity Of Oxygen: 93+-3%
• Model No. / Model Name: GOS
• Technology Used: PSA(Pressure Swing Adsorption)
• Flow Rate(LPM): 50LPM - 960 LPM
• Country Origin: Made In India
• Operating Temprature: 45 Degree Celcius
• Space Required (L*B*H): 3 x 5 x 5 Ft.
• Design: Standard
• Type of Compressor: Screw Air Compressor

• Quantity: 80 cu.m./Hr

Safe and economical, the SANGHI Oxygen Plant, with an efficient expansion engine, lowers operating pressures to a remarkable 30 kgcm2 , cuts power consumption and adds to safety. Sanghi Plants are supplied with very efficient reciprocating four-stage air compressor, which consumes low power. Sanghi Plants are supplied with a specially designed highly efficient cascade cooler, which eliminates the need for chilling unit and saves on recurring maintenance and power cost. A Molecular sieve Battery drier unit for separation of moisture and carbon dioxide is another money saving device in the SANGHI plant. It removes acetylene and other hydrocarbons from the process air, thus eliminating the need for separate acetylene absorbers, and moreover it eliminates recurring caustic soda costs.

In the PSA BASED Oxygen Gas Generation Process, the compressed air is fed to the twin towers filled with zeolite molecular sieves which separate oxygen from rest of the constituent of air. The oxygen generated is 95% pure. When oxygen saturates from one tower, this process changes over to the other tower, thus helping in the process of continuous oxygen generation. . Such kind of the plant is generally installed in the Copper smelting, Sewage treatment Industry and paper industry etc.

• Driven Type: Mechanical
• Color: Black, Brown
• Condition: New, Used
• Automatic Grade: Manual
• Capacity: 100-5000nm/hr
