Padding Mangle Dealers in Mumbai

Vertical Padding Mangle

125,000 Per Units

• Voltage: 220 V
• Country of Origin: Made in India
• Machine Material: SS
• Material Grade: SS 304 / 316
• Power Source: Electric
• Frequency: 50 Hz
• Brand Name: Om Sai Engineering

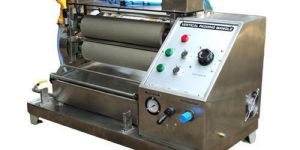

padding mangle

Get Price Quote

Trust cylinder guarantee the equal pressure left & center & right it drives accurate pick up rate. Variety working-Dyeing & finishing & impregnating of textile. High efficient inverter motor, speed controller Digital tachometer control a precise rotating speed in low speed & high speed. Front air regulator makes user be able to adjust air pressure through precise pressure gauge. Ergonomic shape & compact design. Safety device-Two protector between roller and emergency stop switch & bar.

padding mangle

165,000 Per Piece

1 Piece(s) (MOQ)

• Type: Padding Mangle
• Certification: ISO 9001:2015
• Automatic Grade: Automatic
• Warranty: 1year
• Roll Size: New
• Weight: 80 KGS
• Usage: Laboratory
• Colour: Blue
• Display Type: Digital
• Certificate: Non NABL
• Model No: IK-PM-01
• Material: Steel

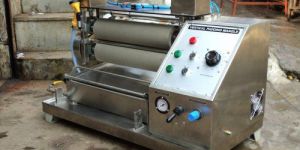

Vertical Padding Mangle

Get Price Quote

Utility: It is versatile M/C with wide applications in dyeing, printing and finishing process. Two Bowls vertical padding mangle has coated with synthetic rubber std. supply, shore Hardness 70 to 75 shore-hardness. Uniform pressure thro' pneumatic loading. MOC: SS 304 / 316

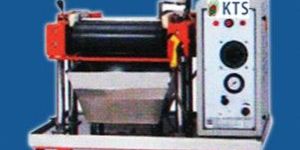

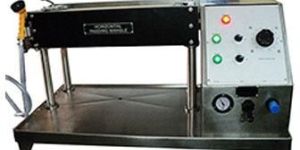

Horizontal Padding Mangle

Get Price Quote

A versatile Laboratory Machine suitable for dyeing, printing finishing applications. Bowls are coated with synthetic rubber of standard shore hardness of 70°C to 75°C shore A & are loaded pneumatically for unifoim pressure. Suitable for 450mm or 350mm working width samples. Specifications : Versatile Laboratory machine. Suitable for dyeing, printing finishing applications. Suitable for 450mm working width samples.

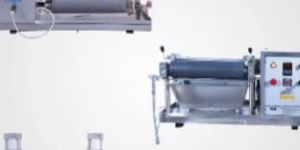

Laboratory Padding Mangle

Get Price Quote

 We offer Laboratory Padding Mangle that is widely used for dyeing, printing and finishing trials. We are a prominent Manufacturer, Exporter and Supplier of versatile range of Laboratory Padding Mangle from Mumbai in Maharashtra. Our varied range of Laboratory Padding Mangle is fabricated from the finest quality of raw material and is strong, durable and corrosion resistant. We offer customized range of this high performance Laboratory Padding Mangle at pocket friendly prices. Features : For Even pressure throughout, pneumatic loading of the bowl is provided.Small unheated trough provided for padding small size samples.   Technical Information : Model : Table top Material of Construction : SS 304 & ss 316 Working Width : 450, 600mm. Automation : Microprocessor Controller. Bowl Hardness : 65o – 70o Shore Hardness Bowl Dimensions (450mm WW) : 120mm Dia x 500mm length (600mm Ww) 120mm dia x 650mm length Working Pressure : 4kg/cm2 Cloth speed : Variable upto 6mtr / Min Heated trough's capacity : 900ml Unheated trough capacity : 200ml Electrical supply : 230Vac Single ɸ, 50 hz Approx weight : 150 kg/190 kg dimensions : (450mm) L1000mm x W530mm x H710mm Dimensions : (600mm) : L1180mm x W630mm x H790mm   Option : Digital Model for accurate control of Speed & pressure. High Speed and high pressure padding mangle (6kg pressure and speed of 60 meter/minute). 3 bowl padding mangle with central bowl of ebonite or stainless steel. Compensator for use in conjunction wiht drying curing and setting chamber Bowls with silicon coating Nip padding trough and doctor blades for coating purpose.

Vertical Padding Mangle

Get Price Quote

Laboratory Padding Mangle is a versatile laboratory machine with wide applications in Dyeing, Printing & Finishing processes.Simulating dyeing mangle functions, suitable for sample dyeing test of cotton, T/C and chemical fiber.Specially designed for small-batch, multi-variety and personality consumption.Simple construction, pretty shape and convenient operation.

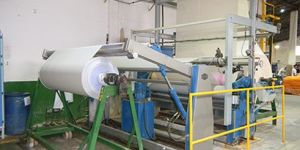

PADDING MANGLES

Get Price Quote

The INDOFLEX Dyeing Padder is a dyeing and Impregnating machine: An ingenious deflection control principle forms the heart of HARISH INDO-FLEX Dyeing Padder. It allows modulation of expression pattern to achieve desired pick-up. The INDO-FLEX Padder is a dyeing and impregnating padder for pad-dry and pad steam applications. Flexible pressure setting over the width to achieve uniform squeeze throughout the width. The stainless steel cladded inner frame facilitates easy cleaning and long service life.

Laboratory Padding Mangle

Get Price Quote

Laboratory Padding Mangle, beaker dyeing machine, Infracolour Dyeing Machine

pneumatic padding mangle

Get Price Quote

pneumatic padding mangle, Wrap Block, Digital Fabric Thickness Tester

Vertical Padding Mangle

Get Price Quote

Vertical Padding Mangle, sublimation tester, Digital Motorized Crock Meter

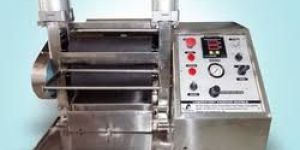

padding mangle

Get Price Quote

padding mangle, Narrow Fabric Lanyard Transfer Machine
