PCI Analytics Pvt. Ltd Bhandup West, Mumbai, Maharashtra

Easy operation and reliable optical system ensure fast, accurate results,Small size saves valuable lab space,Versatile accessories enhance sampling and increase productivity,Low cost to stretch your budget The time required to analyze samples more quickly and in a lot more analysis,There is little maintenance

Wavelength Range : -1901100 nm

Model Number : UV-6300

• Tubing are available in different sizes like 12", 14", 18", 116"Tubing available in different MOC like copper, S.S., teflon, nylon.Casing capping are used to cover the above tubing & to maintain the esthetic look.Three types casing capping available, M.S. powder coated, alluminium powder coated & PVC casing capping.

Rotameter is used to measure flow for different gases. Body: acrylic body or glass body (aluminium encased) with appropriate float as per flow and gas requirement.inlet & outlet connection: back side with 14" bsp female connection with panel mounting, table mounting,stand are also available.

Auto frequency chasing, avoiding adjustment liquid crystal display at peak value.Main instruction, convenient operation.Display temperature control checking and set over-hot protection on the samples.Output amplitude 0-100% adjustment.Overload protection, so that equipment can not be damaged.10 operation programs for application or reserve after refreshing

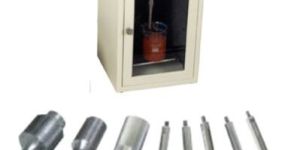

Ultrasonic Processor (Probe Sonicator is a tool specially designed for Pharmaceutical, Chemical Labs and various Research Institutes, Colleges, Universities). High frequency vibrations are produced by the S.S. Velocity Horn which is immersed into the liquid to be processed. The vibrations give raise to millions of Intense Microscopic Vacuum Bubbles which form & implode at a very high rate (twenty thousand times per second). This phenomenon is known as 'CAVITATION'. Cavitation gives raise to intense Local Pressure Waves & Micro Strearning of liquid round the points of collapse. This in turn produces High Shear gradients which are responsible for the above stated applications

LCD Indication,Self-test function,Adjustable alarm,Adjustable calibration points,Two instant alarm pointsAudio, visual LED and vibrator,Password protection,Strong, durable rubber casing for anti-slip handling,STEL and TWA alarms for CO or H2S units,Available for CO, H2S, O2 or combustible gas,Rechargeable device,Replaceable sensors

Application : Personal safety,Sewage plants,Gas metering station, Power & industrial plants etc.

Stackable Unique stacking kit allows increase the number of columns you can store at any time. Pcolsafe columns safety cabinets are available with 3 different types of MOC namely MS powder coated,full SS and ABS. Optional Fittings Tray Moulded 6 position tray for easy storage of HPLC tools and fittings. Versatiles Store up to 12 x 12.5cm columns in a single drawer, or a combination of short columns, guard columns and analytical columns.Holds all columns up to 30cm long.

Cylinder trolley in MS powder coated 4 wheel for smooth & safe operation.Cylinder trolley available for single & two cylinder.Cylinder mounting brackets are used to mount the cylinder on wall to avoid down fall of cylinder.Mounting bracket available with wall and floor mounting.Gas sampling bottle is used for storing transporting gas sample at high & low pressure. Available in 250ml, 500ml, 1000ml & above,Air header is used for the distribution of compress air or any gas with one inlet various outlet with needle ball valve.

High pressure Mechanical- Automatic Gas Manifold is used for two cylinder system where automatically switching over is required from one cylinder to other, when the pressure in the one cylinder is below the set pressure. Setting of pressure of two cylinders can be set as per user requirement (Refer Setting Procedure).

Oxygen analyser is used to detect the oxygen level in any given gas, oxygen analyser available in ppm and percentage type. Oxygen analyser are of different ranges 0-30%, 0-100% & 0-5000 ppm, oxygen analyser has electrochemical type sensor. Oxygen analyser has digital display with 2 ppm or 0.01% resolution. Maximum operating pressure and temperature is 0.5bar and ambient plus or minus 10 degree celsius.

Nitrogen Concentrator Model: EV-plus-08 is a Precision Sample Concentrator by Nitrogen Purging. It is a newly designed SampleConcentrator for multiple sample pre-concentration of in organic media. A Table Top Model. The unit can be set to a constant Flow and constant Temperature to ensure good evaporation. Also, the Nozzle height can be electrically set to the required level. It is fully microprocessor controlled and water bath, Temperature, gas station, more advantage LCD display, over Temp. Heater ONOFF LED, door open display, high temperature Thermal Coutour for safety for best quality and best performs.

Temperature Range : Ambient to 90 ºC (thermal cutout for safety)

Color : Grey

Nacl KBR windows is available in circular & Rectangular shape.Other windows like AgclCLF & other dimensions also available.Press is enclosed in a powder coated metallic cover, which is easily Most commonly used Die for IRFTIR for solid sampling of 13 mm pallet size consist of Anvil & Plunger, Top & Bottom Die Port, Extractor Ring,

Most commonly used Die for IRFTIR for solid sampling of 13 mm pallet size consist of Anvil & Plunger, Top & Bottom Die Port, Extractor Ring, Oring. Other sizes like 10mm, 20mm also available. â€Â¢ Press is enclosed in a powder coated metallic cover, which is easily

A complete Laboratory hydraulic press producing a force about 15 tones use to make high quality 13 mm Pallet used for IRFTIRXRF Solid Sampling,15 ton laboratory Hydraulic Pellet Press is a compact, elegant and robust machine, typically used by R&D & QC labs for various pelletizing application for IRXRF etc. The high pressure pumping unit supplies hydraulic fluid to the up-stroking ram of the cylinder. This causes the ram to rise steadily and positively in the upward direction. As a result, pressure is applied on any object placed between screw and piston top plate.

Inline micron filters are used to remove dust particles from respective gases. Micron filter (ss body) consist of ss disc (mesh) of 5μ - 10μ. Gas purification panel removes impurities which are in vapours (gases) form. Cylinders being m.s. Body has the tendency to illute dust particles, these particles may come in the line and may go to gas chromatograph. To avoid this particles micron filters are very essential.

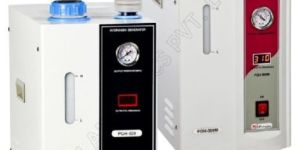

Hydrogen is produced in the PGH Series Hydrogen Generators by the most advanced electrolytic membrane technology. The application of voltage across the electrolyte results in hydrolysis, breaking down the water molecule into hydrogen and oxygen gas, which are separated by the gas permeable membrane. Once separated, the hydrogen gas goes through a series of purification and moisture removal systems to achieve the desired level of purity while the oxygen gas is being discharged into the atmosphere. Electrolytic membrane technology has its advantages over alternative hydrogen generating techniques as it is clean, requires less maintenance and there is no need to store chemicals to maintain operation. Only pure double distilled water (initially some KOH), is required to provide trouble free long term operation. Membrane separation is also less time consuming as only water is needed for routine maintenance.

Power : 198-242V (AC); 50Hz,1 Phase

Weight : 12 kg (approx)

Deliver Ultra High Pure (UHP) Grade Gases,Compact Design, Wall Mounted, Powder Coated,Filters are easily detachable,Suitable for 10kgcm�² inlet pressure & 7 kgcm�² outlet pressure,Panel for LC-MS-MS & other applications are also available,Reduce baseline noise, drift problems, etc.Increase column life, GC detectors & reduces flame problems,Improve reproducibility,Save costly gases through toggle valves & gas distribution panel.

Dual display of gas concentration & set point unit of the gas,Plug in smart field proven sensor,Programmable linear 4-20mA 20-4mA OP with respect to gas concentration,Easy one man calibration at site,Optional RS-485 with modbus RTU protocol,Suitable in hazardous area ATEX, CCOE, CMRI & IP-65 approved.
